Step 5 Click Apply to save the settings.
Step 6 Optionally, you can click Copy to copy the settings to other analog channels if needed.

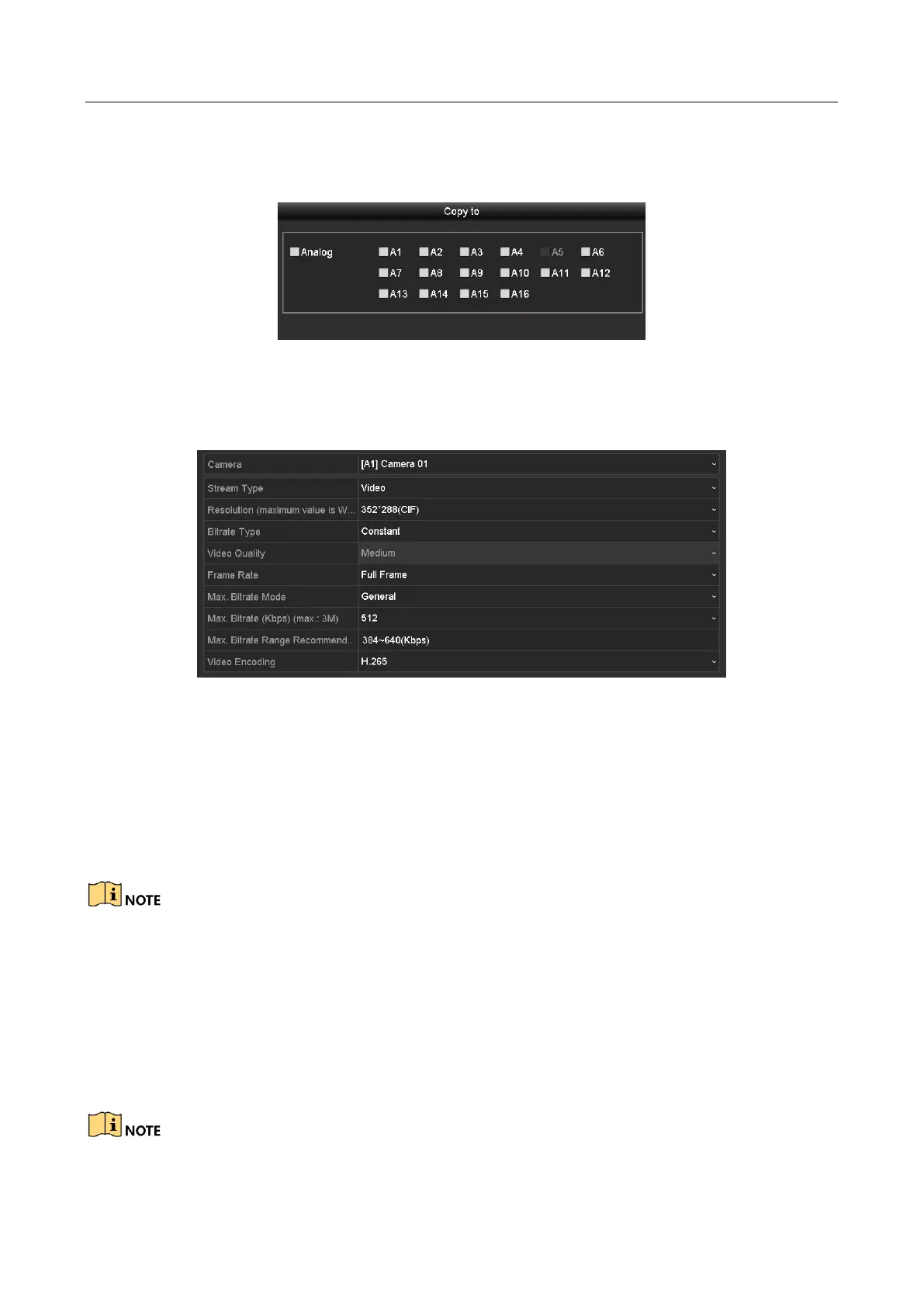

Figure 5-5 Copy Camera Settings
Step 7 Set encoding parameters for sub-stream.
1) Select the Sub-Stream tab.
Figure 5-6 Sub-Stream Encoding
2) Select a camera in the camera drop-down list.
3) Configure the parameters.
4) Click Apply to save the settings.
5) (Optional) If the parameters can also be used to other cameras, click Copy to copy the
settings to other channels.

The resolution of sub-stream can be selected among WD1, 4CIF, and CIF.

The minimum frame rate for the sub-stream is 1 fps.

You can select the Video Encoding for the sub-stream of IP and analog cameras. For the
analog cameras, H.264 and H.265 are selectable. For the IP cameras supporting H.265, you
can select H.265 encoding mode.
5.2 Configuring Recording Schedule

HIKVISION DS-7316HQHI-K4 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	4
Power requirements	100 - 240 VAC
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
