HIKVISION DS-7316HQHI-K4 User Manual

Digital Video Recorder User Manual
81

The DVR supports continuous, alarm, motion, motion | alarm, motion & alarm, and event
triggered recording types.

In this chapter, we take the record schedule procedure as an example, and the same
procedure can be applied to configure schedule for recording.
Purpose
Set the record schedule, and then the camera will automatically start/stop recording according to
the configured schedule.
Step 1 Go to Menu > Record > Schedule.

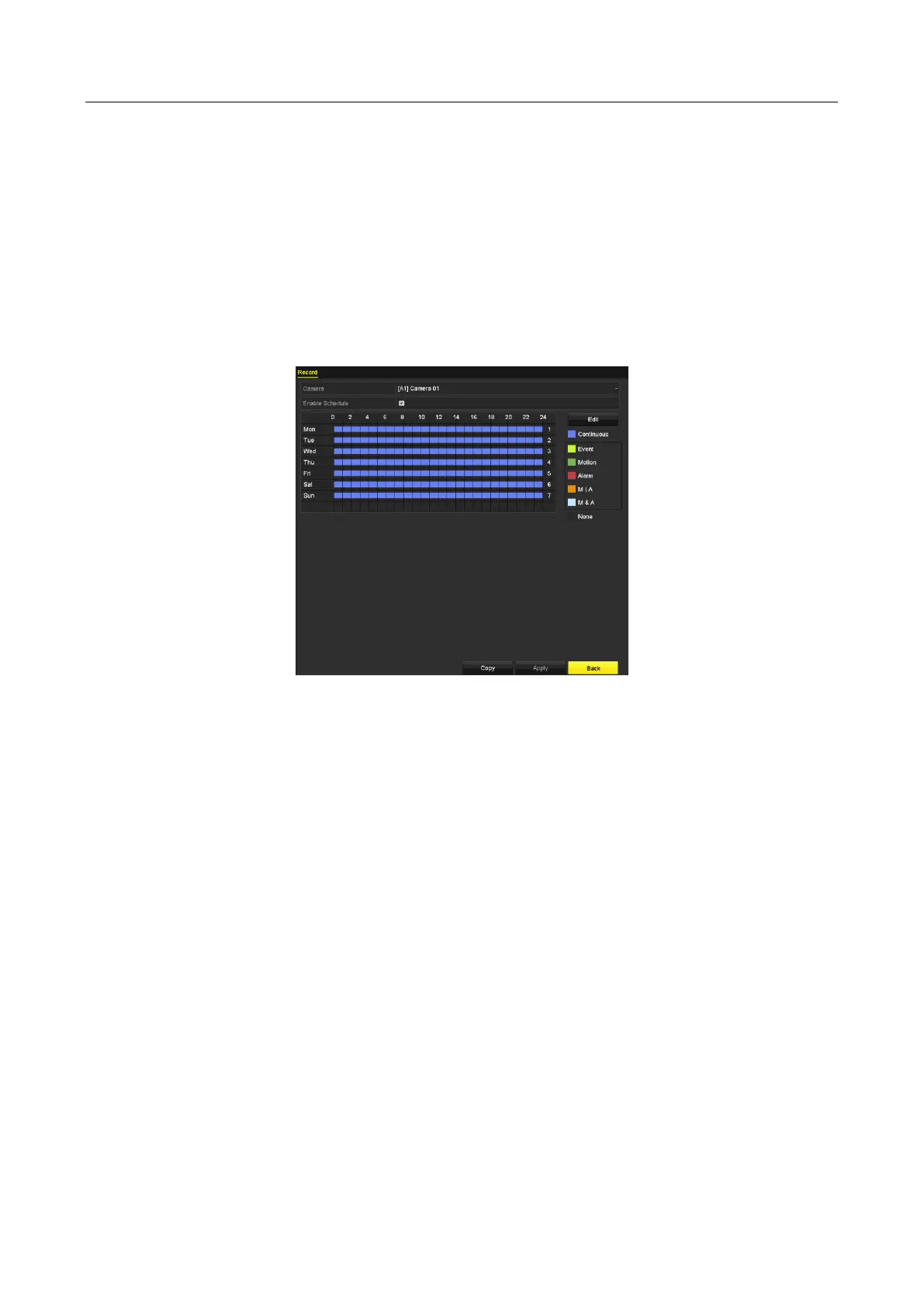

Figure 5-7 Record Schedule
Different recording types are marked in different color icons.
Continuous: scheduled recording.
Event: recording triggered by all event triggered alarm.
Motion: recording triggered by motion detection.
Alarm: recording triggered by alarm.
M/A: recording triggered by either motion detection or alarm.
M&A: recording triggered by motion detection and alarm.
Step 2 Choose the camera you want to configure in the Camera drop-down list.
Step 3 Check the checkbox of Enable Schedule.
Step 4 Configure the record schedule.
Edit the schedule
1) Click Edit.

HIKVISION DS-7316HQHI-K4 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	4
Power requirements	100 - 240 VAC
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
