HIKVISION DS-7316HQHI-K4 User Manual

Digital Video Recorder User Manual
209

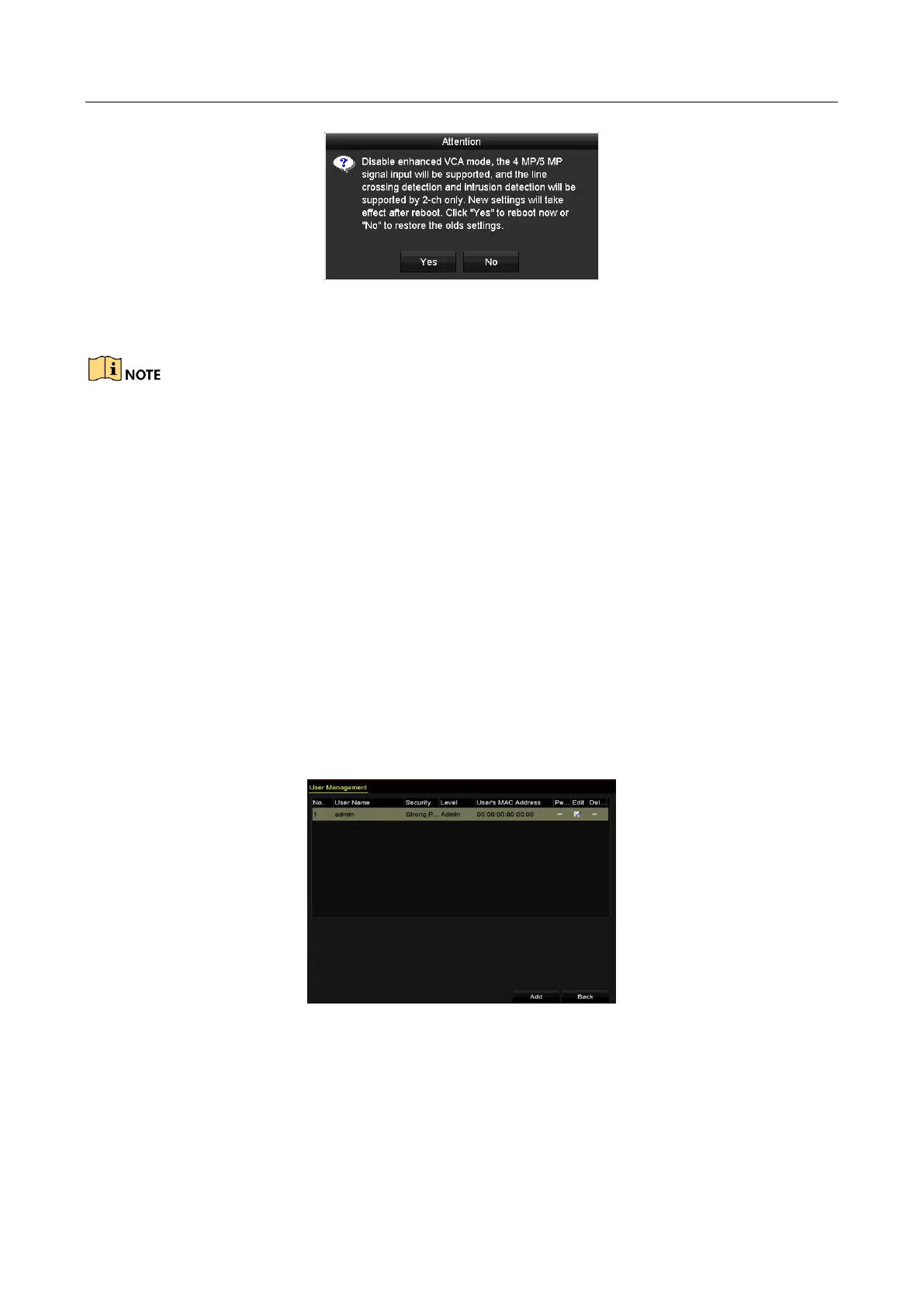

Figure 16-7 Disable Enhanced VCA Mode (2)
3) Click Yes to apply the function and reboot the device.
If you have configured 2K/4K output, or connected 4 MP/5 MP signal input already, when you
enable enhanced VCA mode and after the device reboots, the output resolution will decrease to
1080p, and the 4 MP/5 MP signal input will display no video.
Step 3 Click Apply to save the settings.
16.4 Managing User Accounts
Purpose
There is a default account in the DVR: Administrator. The Administrator user name is admin and
the password is set when you start the device for the first time. The Administrator has the
permission to add and delete user and configure user parameters.
16.4.1 Adding a User
Step 1 Go to Menu > Configuration > User.
Figure 16-8 User Management Interface
Step 2 Click the Add button to enter the Add User interface.

HIKVISION DS-7316HQHI-K4 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	4
Power requirements	100 - 240 VAC
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
