Digital Video Recorder User Manual
176
Step 1 Go to Menu > Maintenance > Net Detect > Traffic.

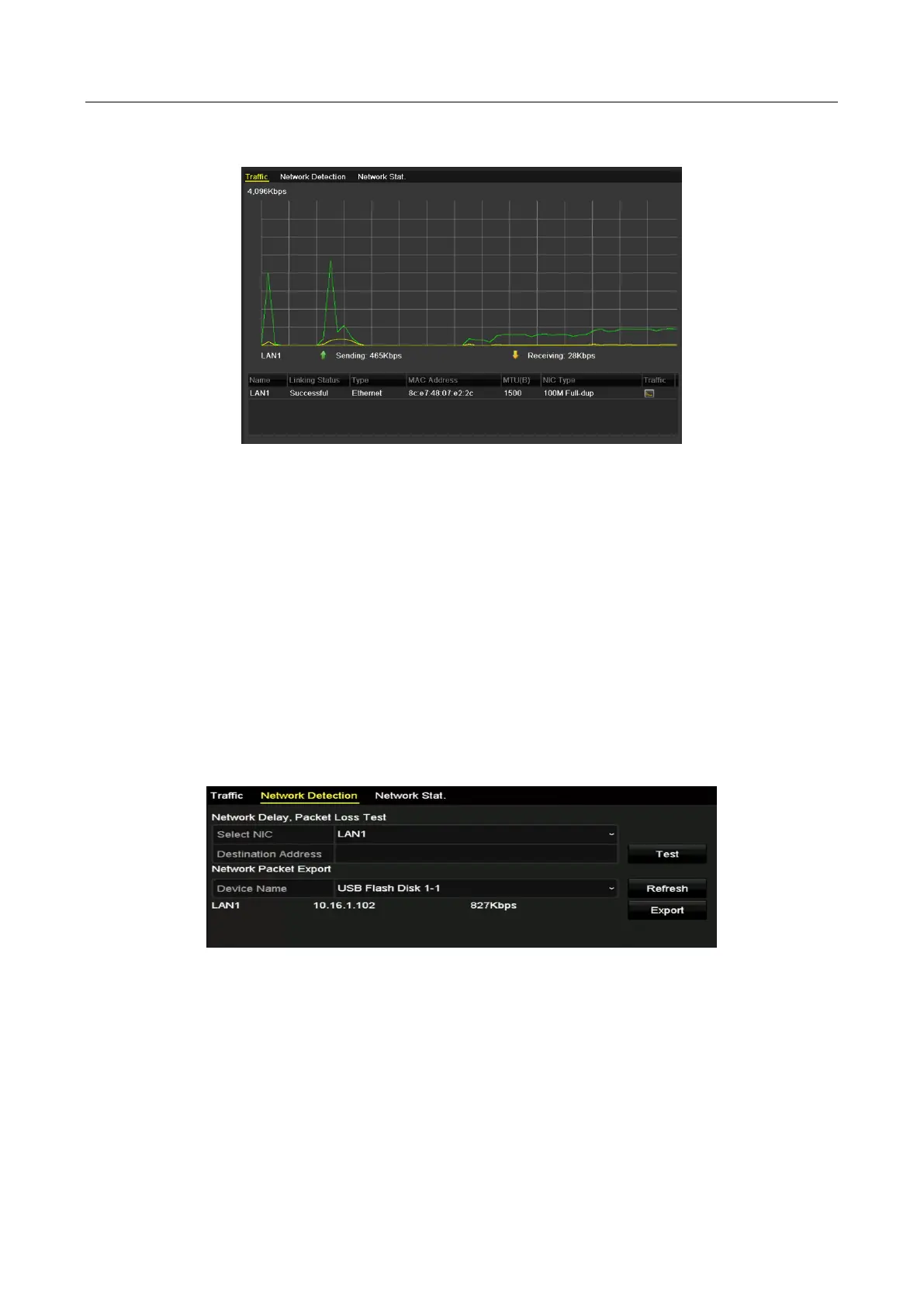

Figure 12-20 Network Traffic Interface
Step 2 You can view the sending rate and receiving rate information on the interface. The traffic
data is refreshed every 1 second.
12.3 Configuring Network Detection
Purpose
You can obtain network connecting status of DVR through the network detection function,
including network delay, packet loss, etc.
12.3.1 Testing Network Delay and Packet Loss
Step 1 Go to Menu > Maintenance > Net Detect > Network Detection.
Figure 12-21 Network Detection Interface
Step 2 Select a NIC to test network delay and packet loss.
Step 3 Enter the destination address in the text field of Destination Address.
Step 4 Click the Test button to start testing network delay and packet loss.
