Digital Video Recorder User Manual
34

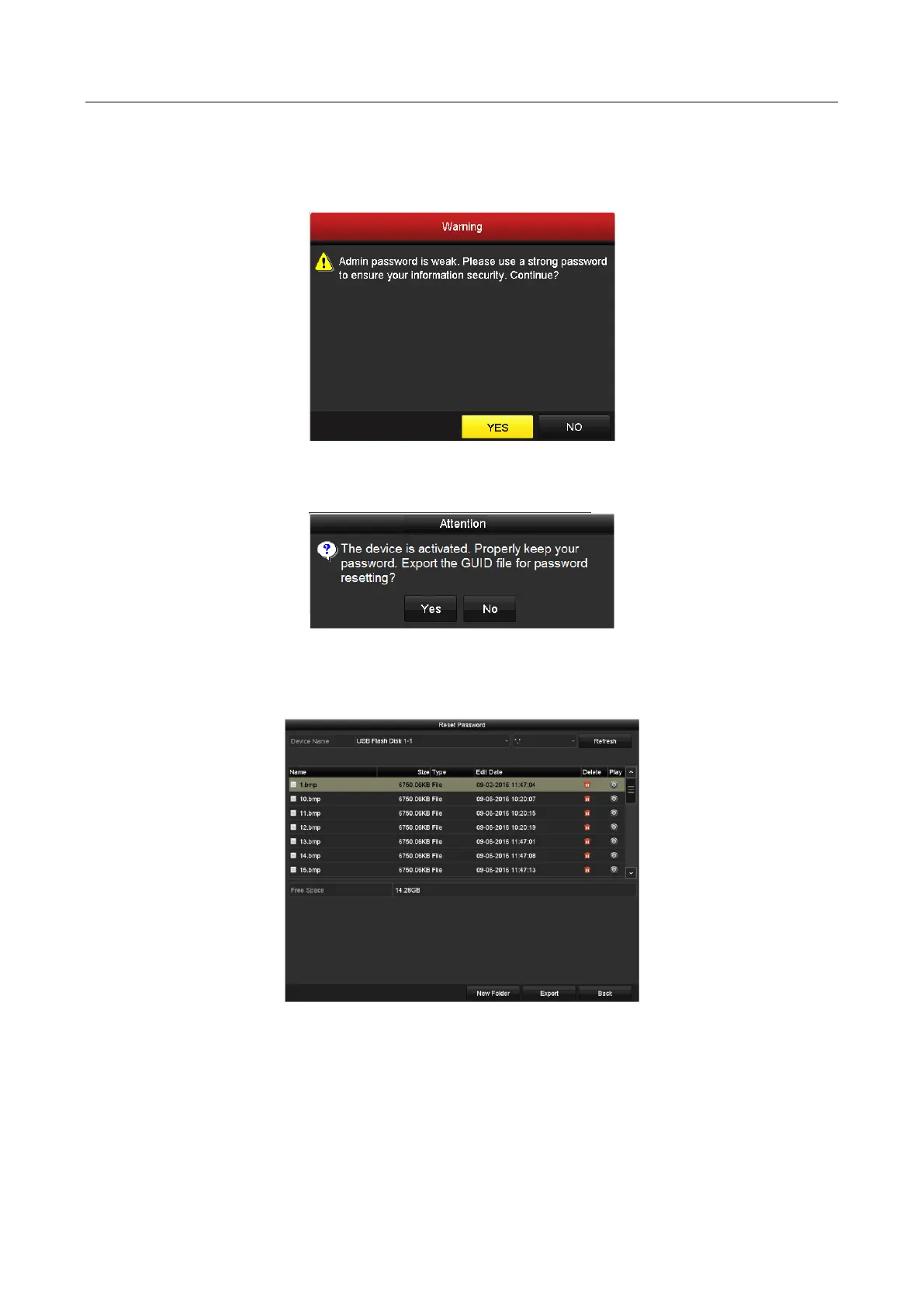

For the old version device, if you update it to the new version, the following dialog box will
pop up once the device starts up. You can click YES and follow the wizard to set a strong
password.
Figure 2-4 Warning
Step 3 After the device is activated, the Attention box pops up as below.
Figure 2-5 Attention
Step 4 (Optional) Click Yes to export GUID. The Reset Password interface pops up. Click Export to
export GUID to the USB flash drive for password resetting.
Figure 2-6 Export GUID
Step 5 After exporting GUID, the Attention box pops up as below. Click Yes to duplicate the
password or No to cancel it.

Table of Contents

Other manuals for HIKVISION DS-7316HQHI-K4

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7316HQHI-K4 and is the answer not in the manual?

HIKVISION DS-7316HQHI-K4 Specifications

General IconGeneral
Product colorBlack
Channels quantity16 channels
Video compression formatsH.264, H.264+, H.265, H.265+
Analog signal format systemNTSC, PAL
Playback resolutions supported3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports1
Supported network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interfaceSerial ATA
Maximum HDD capacity8000 GB
Number of HDDs supported4
Power requirements100 - 240 VAC
Power consumption (typical)55 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Weight5000 g
Dimensions (WxDxH)445 x 390 x 70 mm
