Digital Video Recorder User Manual
66

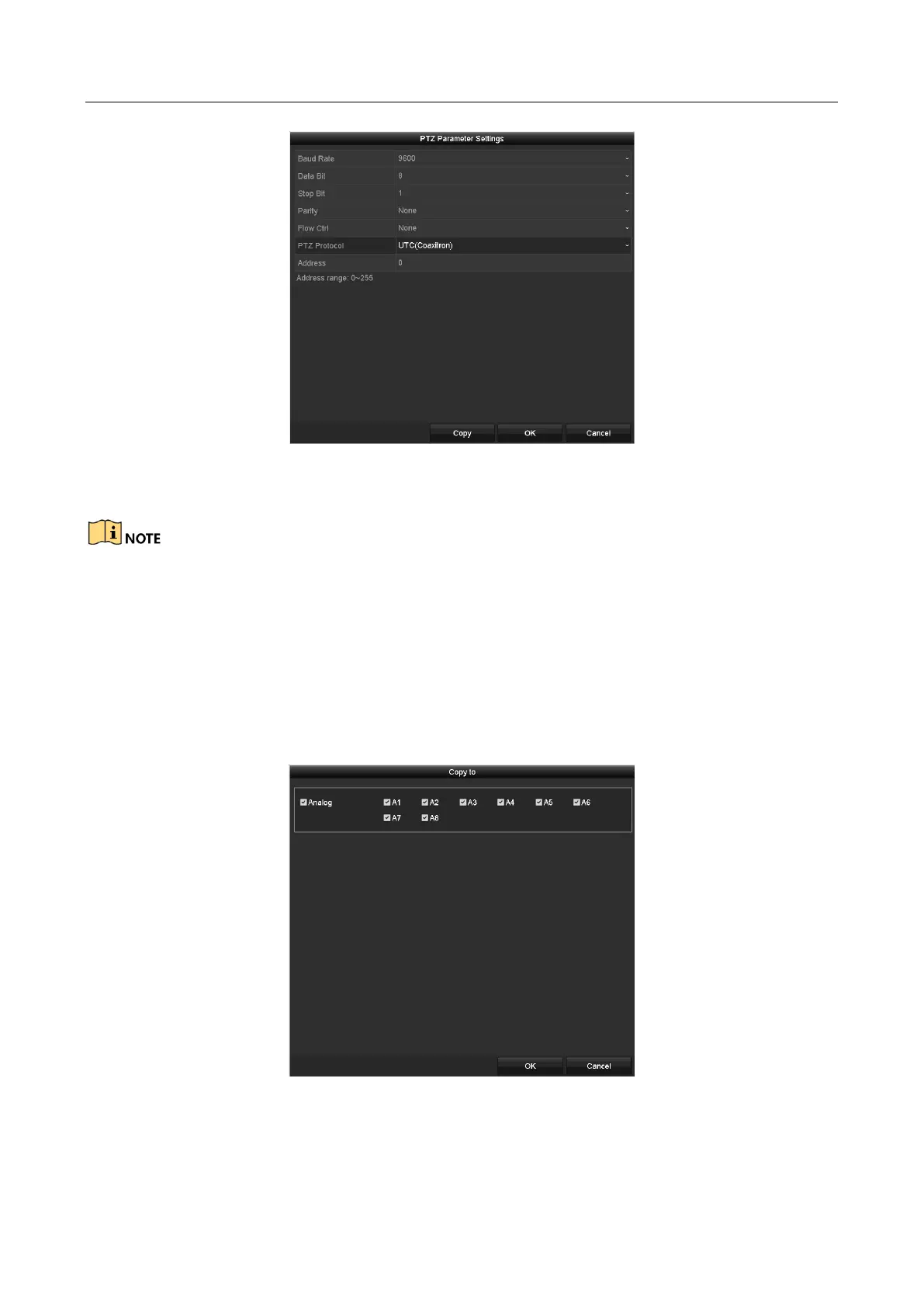

Figure 4-2 PTZ-General
Step 4 Select the parameters of the PTZ camera from the drop-down list.

All the parameters should be exactly the same as the PTZ camera parameters.

For the Coaxitron camera/dome connected, you can select the PTZ protocol to UTC
(Coaxitron). Make sure the protocol selected here is supported by the connected
camera/dome.

When the Coaxitron protocol is selected, all the other parameters like the baud rate, data
bit, stop bit, parity and flow control are not configurable.
Step 5 (Optional) Click Copy button to copy the settings to the other channels. Select the channels
you want to copy to and click OK to return to the PTZ Parameters Settings interface.
Figure 4-3 Copy to Other Channels
Step 6 Click OK to save the settings.

HIKVISION DS-7316HQHI-K4 Specifications

General

Product color	Black
Channels quantity	16 channels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Playback resolutions supported	3840 x 2160, 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
HDD interface	Serial ATA
Maximum HDD capacity	8000 GB
Number of HDDs supported	4
Power requirements	100 - 240 VAC
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
