HIKVISION DS-7608NI-I2/8P User Manual

Network Video Recorder User Manual
250

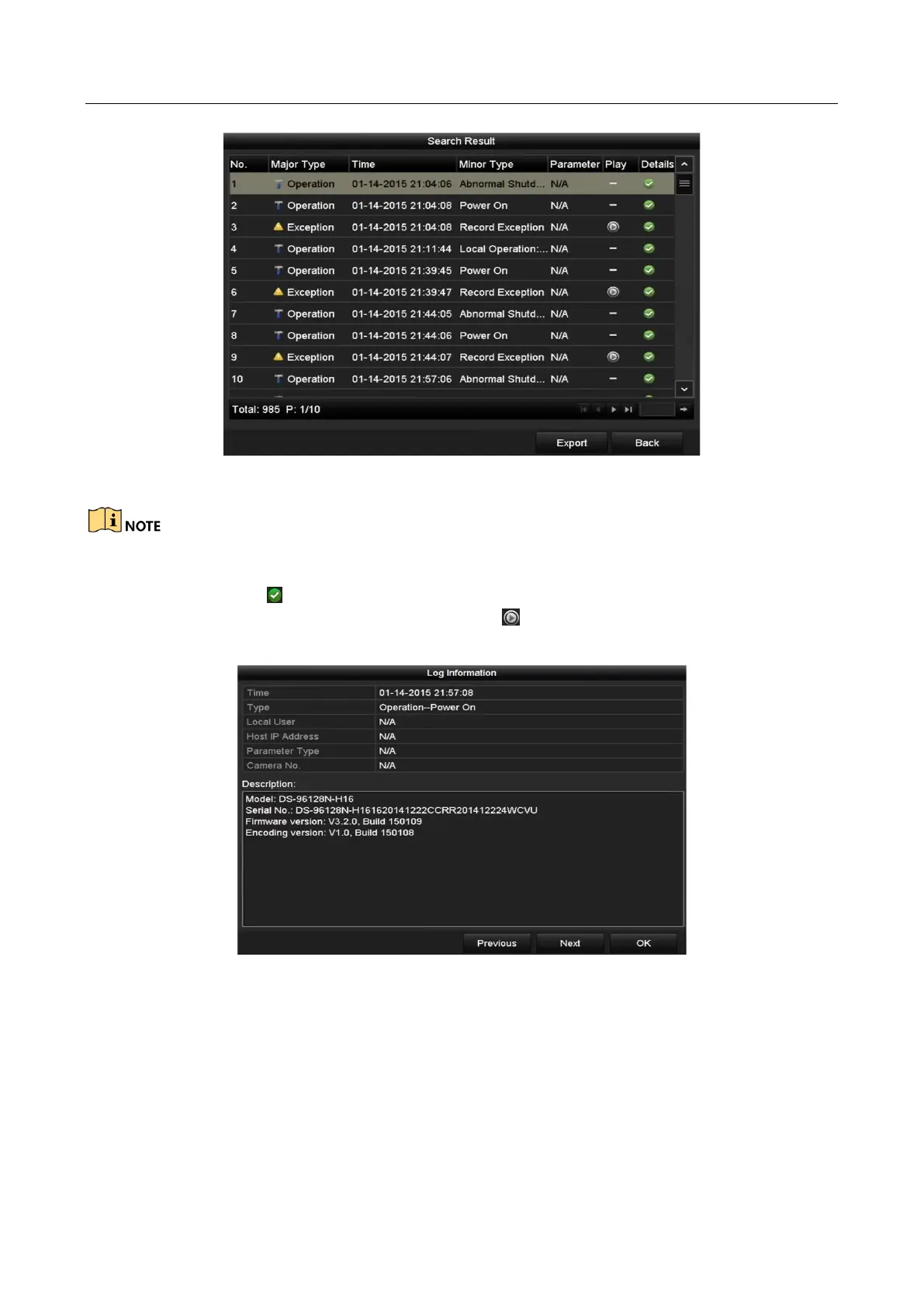

Figure 16-3 Log Search Results
Up to 2000 log files can be displayed each time.
Step 5 You can click the button of each log or double click it to view its detailed information, as
shown in Figure 16-4. And you can also click the button to view the related video files if
available.
Figure 16-4 Log Details
Step 6 If you want to export the log files, click the Export button to enter the Export menu, as
shown in Figure 16-4 Log Details.
You can also click Export All on the Log Search interface (Figure 15.2) to enter the Export
interface (Figure 15.5), and all the system logs will be exported to the backup device.

HIKVISION DS-7608NI-I2/8P Specifications

General

Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	15 W
Total Power over Ethernet (PoE) budget	120 W
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Number of fans	1 fan(s)
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Output bandwidth	256 Mbit/s
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	8 channels
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Still image resolution(s)	3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Analog signal format system	NTSC, PAL
Resolution at capture speed	1920x1080@60fps
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs installed	0
Number of HDDs supported	2
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Product color	Black, Silver
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	3000 g
