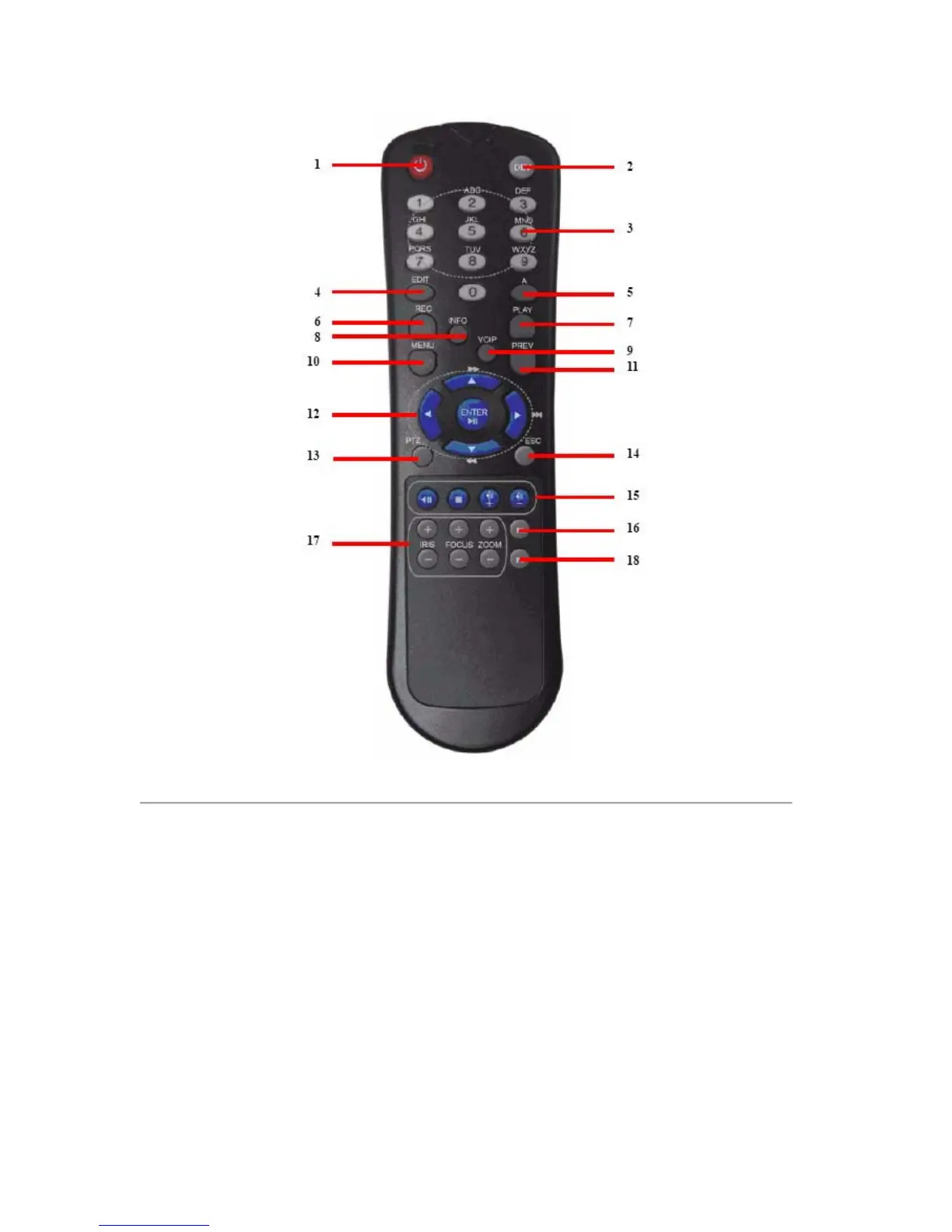

Figure 5. IR Remote Control
The keys on the remote control closely resemble the ones found on the front panel. Referring to Figure 5, they include:
1. POWER Button: Same as POWER button on front panel.
2. DEV Button: Enables/Disables Remote Control.
3. Alphanumeric Buttons: Same as Alphanumeric buttons on front panel.
4. EDIT Button: Same as EDIT/IRIS+ button on front panel.
5. A Button: Same as A/FOCUS+ button on front panel.
6. REC Button: Same as REC/SHOT button on front panel.
7. PLAY Button: Same as PLAY/AUTO button on front panel.
8. INFO Button: Same as ZOOM+ button on front panel.
9. VOIP Button: Same as MAIN/SPOT/ZOOM- button on front panel.
10. MENU Button: Same as MENU/WIPER button on front panel.
11. PREV Button: Same as PREV/FOCUS- button on front panel.
12. DIRECTION/ENTER Buttons: Same as DIRECTION/ENTER buttons on front panel.
13. PTZ Button: Same as PTZ/IRIS- button on front panel.
14. ESC Button: Same as ESC button on front panel.
15. RESERVED: Reserved.
16. F1 Button: Same as F1/LIGHT button on front panel.
17. PTZ CONTROL Buttons: Buttons to adjust the iris, focus and zoom of a PTZ camera.
