The buttons on the soft keyboard represents:
Lowercase: Designates lowercase input is being used.
Uppercase: Designates uppercase input is being used.
Switch to Lowercase: Switch to lowercase input.
Switch to Uppercase: Switch to uppercase input.
Number: Designates number input is being used.
Symbols: Switch to symbols input.
Backspace: Delete the character in front of the cursor.
Enter: Confirm selection.
ESC: Exit out of Soft Keyboard.
Figure 7. Soft Keyboard Buttons

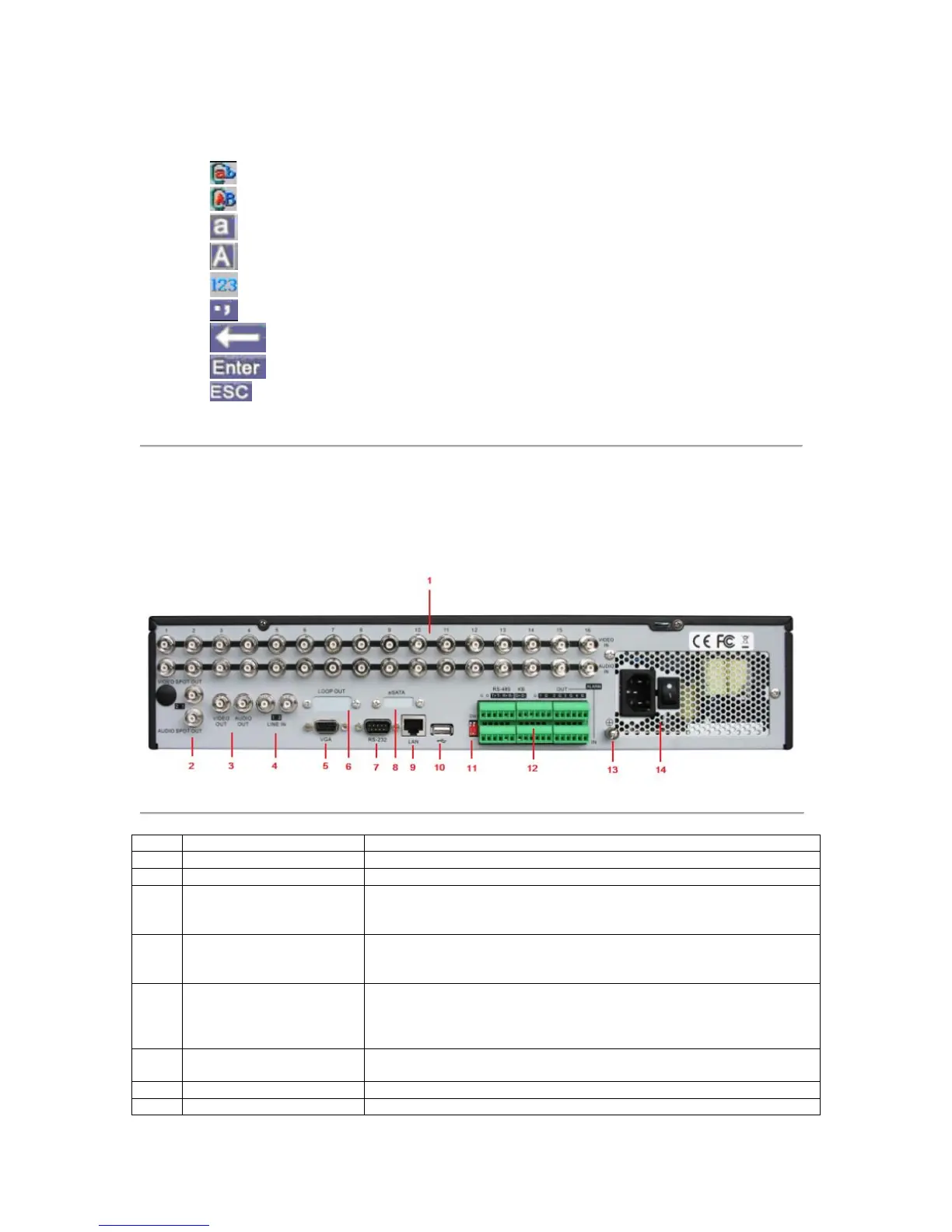

Rear Panel Diagram
Figure 8. Rear Panel Diagram
No.
Item
Description
1
VIDEO IN
BNC connectors for analog video input.
AUDIO IN
BNC connectors for analog audio input.
2
VIDEO SPOT OUT
BNC connector for monitor. If VGA is connected, interface is for video
output only. If VGA is not connected, interface is for video output,
playback and showing PTZ controls.
AUDIO SPOT OUT
BNC connector for audio output. If VGA is connected, audio is synchronized
with VGA. If VGA is not connected, audio is synchronized with VIDEO
SPOT OUT.
3
VIDEO OUT
BNC connector for video output. If VGA is connected, the interface is used
for spot output only with local video display, playback, recording and PTZ
controls. If VGA is not connected, the interface is used as the main video
output with local video display and menu operations.
AUDIO OUT
BNC connector for audio output. This connector is synchronized with VIDEO
OUT.
4
LINE IN
BNC connector for audio input.
5
VGA
DB9 connector for VGA output. Display local video output and menu.
