82

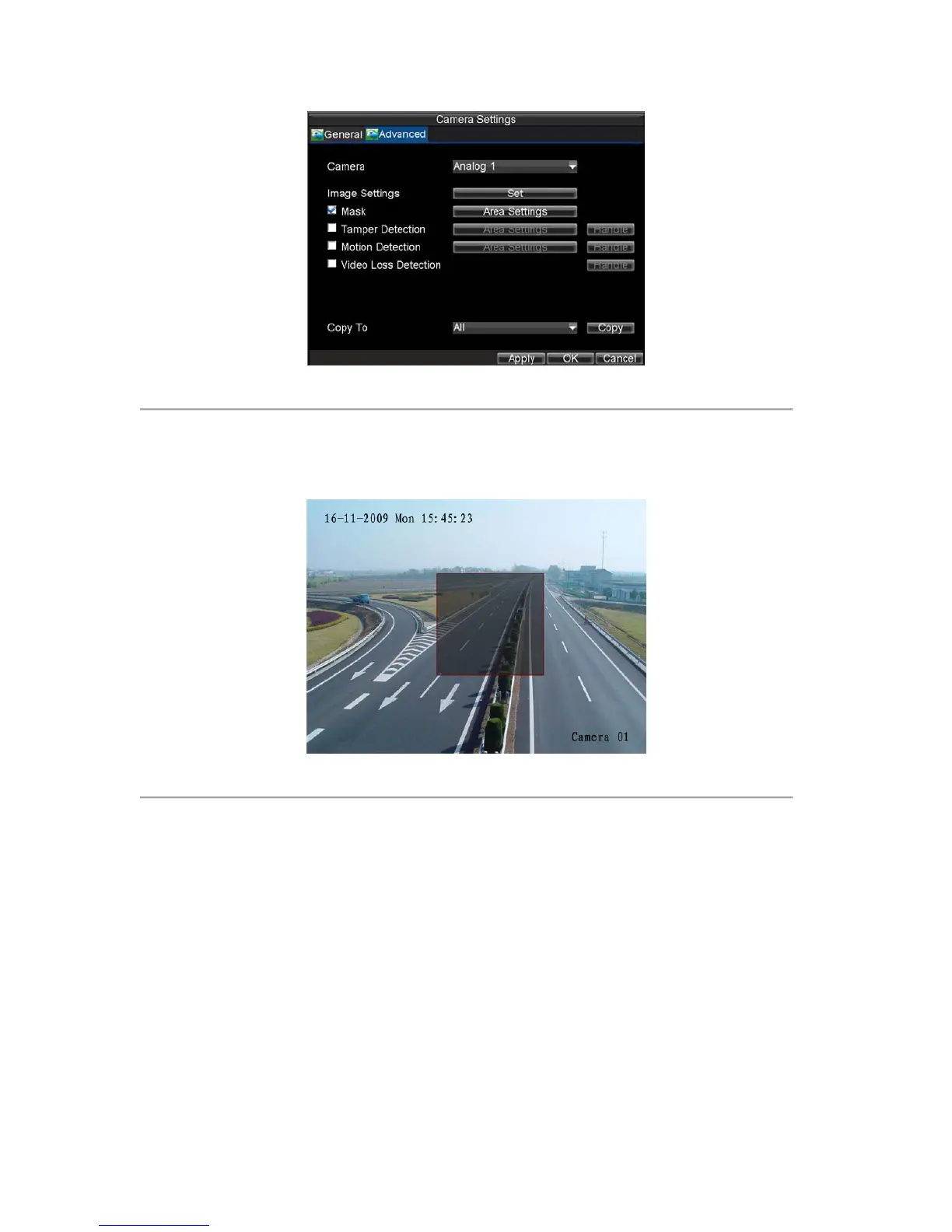

Figure 7. Advanced Camera Settings Menu
4. Check the Mask checkbox to enable feature.
5. Click the Area Settings button to enter Area Settings menu.
6. Setup mask area, as shown in Figure 8. Up to 4 areas can be set.
Figure 8. Setting Mask Area
7.
Select OK to save and exit mask setup.
Note: Max. 4 areas can be set.
Adjusting Display Settings
Display settings such as the brightness, contrast, saturation and hue can also be adjusted in the Camera Management
menu.
To adjust display settings:
1. Enter the Camera Management/Settings menu, shown in Figure 1 by clicking Menu > Setting >
Camera.
2. Select channel to adjust display settings under Channel #. Click the Set button.
