87
Setting HDD Groups
Your DVR can separate multiple HDDs into groups. Videos from specified channels can be set to be recorded onto a
particular HDD group.
To setup a HDD group:
1. Enter the HDD Management menu by clicking Menu > HDD.
2. Select HDDs to be added to group.
3. Select Set button to enter HDD Settings menu.
4. Set the HDD Group Number, as shown in Figure 5.

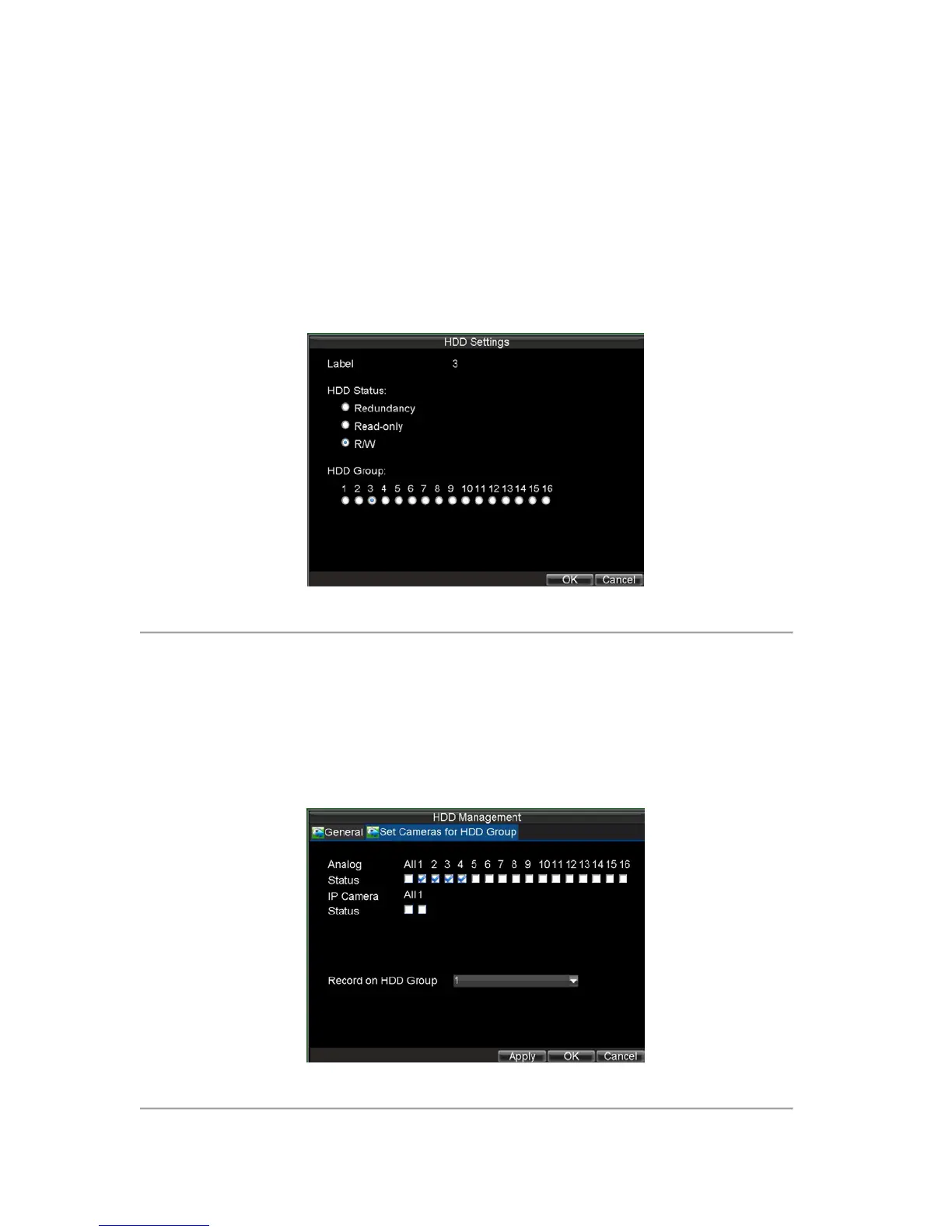

Figure 5. HDD Settings Menu
5. Select OK to save and exit menu.
Note: By default, all HDDs belong to group 1.
To setup specified channels to be recorded onto a particular HDD group:
1. Select Set Cameras for HDD Group tab to enter setup interface.
2. Select channels for the group.
3. Select the HDD group you want the channels to be recorded on, as shown in Figure 6.
Figure 6. Set Cameras for HDD Group
