68
3. Click the Set button next to Host/Others to enter the Host/Others menu.
4. Set Multicast IP, as shown in Figure 10. When adding a device to the Network Video Surveillance
software, the multicast address must be the same as the DVR’s multicast IP.

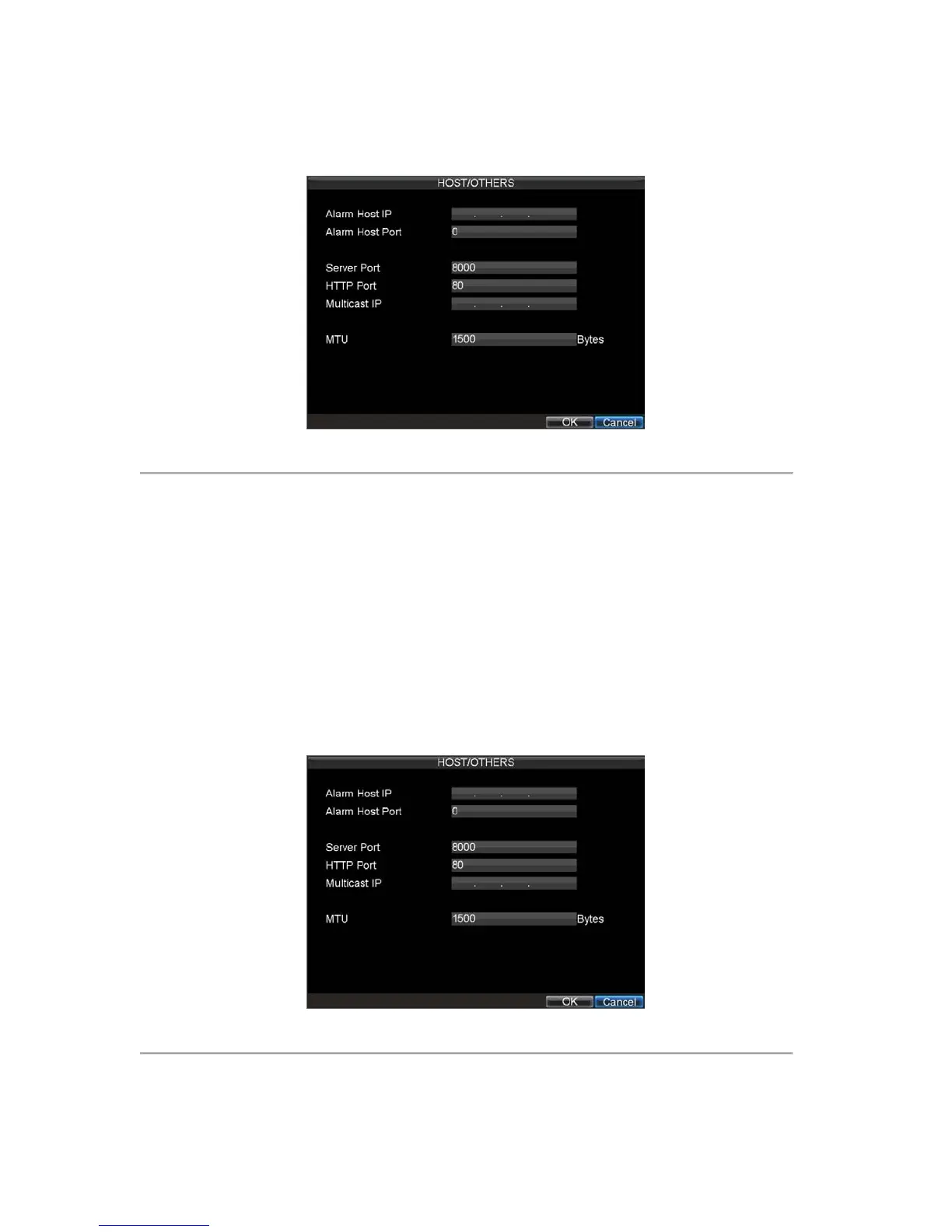

Figure 10. Host/Others Menu
5. Click OK to save and exit menu.
Configuring MTU
MTU is the abbreviation of Maximum Transmission Unit. Unit is represented by bytes.
To change MTU:
1. Enter the Network Settings menu by clicking Menu > Setting > Network.
2. Select the Advanced tab.
3. Click the Set button next to Host/Others to enter the Host/Others menu.
4. Enter new MTU for this device, as shown in Figure 11.
Figure 11. Host/Others Menu
Note: The virtual value of MTU is from 500 to 9676.
To Next Page
