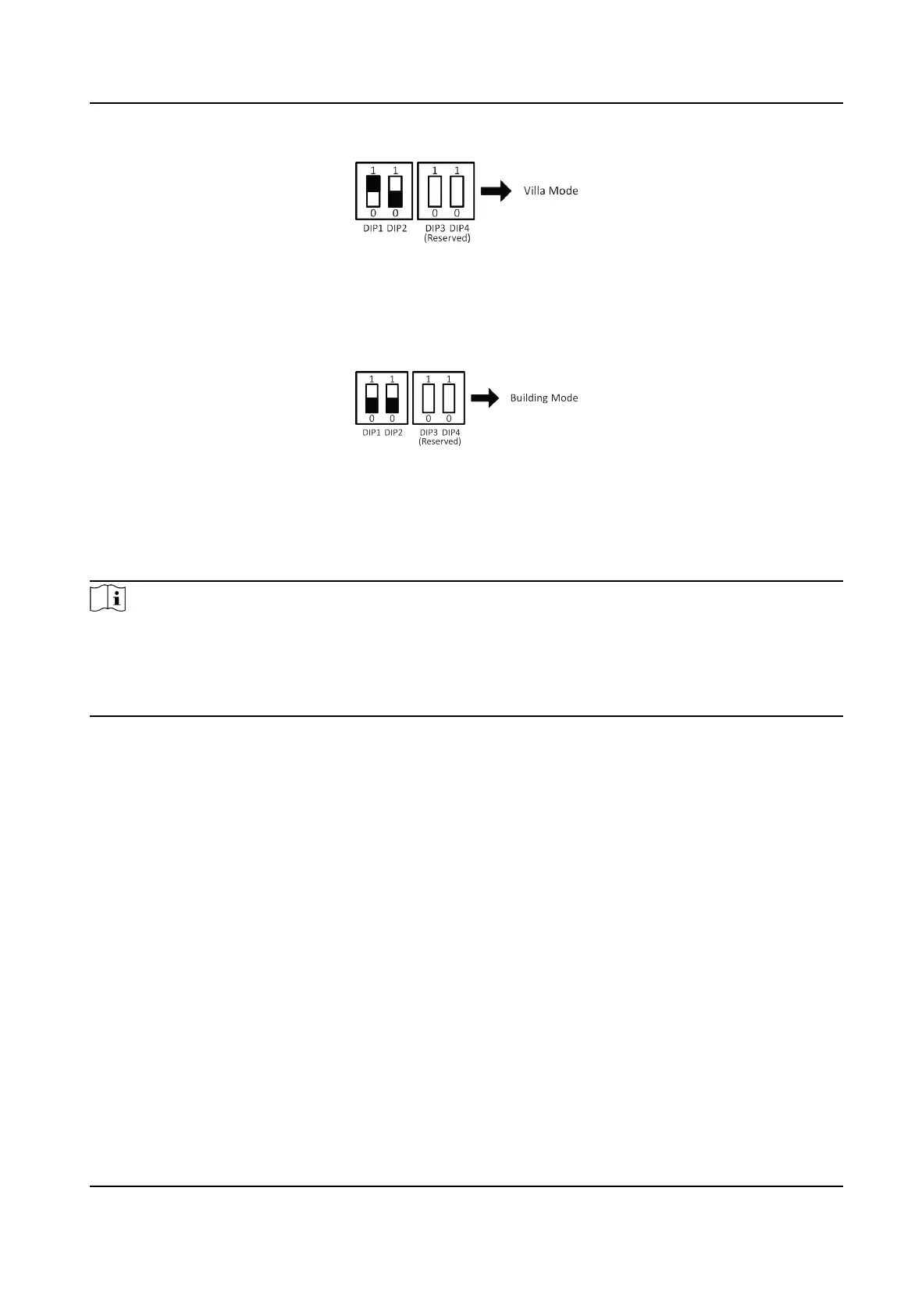

Figure 7-5 Villa Mode
Villa Mode: The device can be powered by separate power supply. Under the villa mode, more
than one device can be lightened up; when the extension is called, it can be lightened up and
intercom via videos.
Figure 7-6 Building Mode
Building Mode: In one power supply system, up to 4 indoor staons can be wired and up to 1
indoor staon can be normally used at the same me. When other devices are lightened up, the IN
USE indicator will also be lightened up. Separate power supply is not supported. When the
extension is called, the screen cannot be lightened up.
Note
●
DIP 1 and DIP 2 are for mode sengs, and DIP 3 and DIP 4 are reserved.
●
If DIP 2 is set as 1, the funcon of Professional Studio will be enabled.
●
The device is on debugging mode when the extension No. is 9. You can operate the indoor
staon on debugging mode without connecng to the door staon.
DS-KD7003EY-IME2 Module Door Staon User Manual
51
