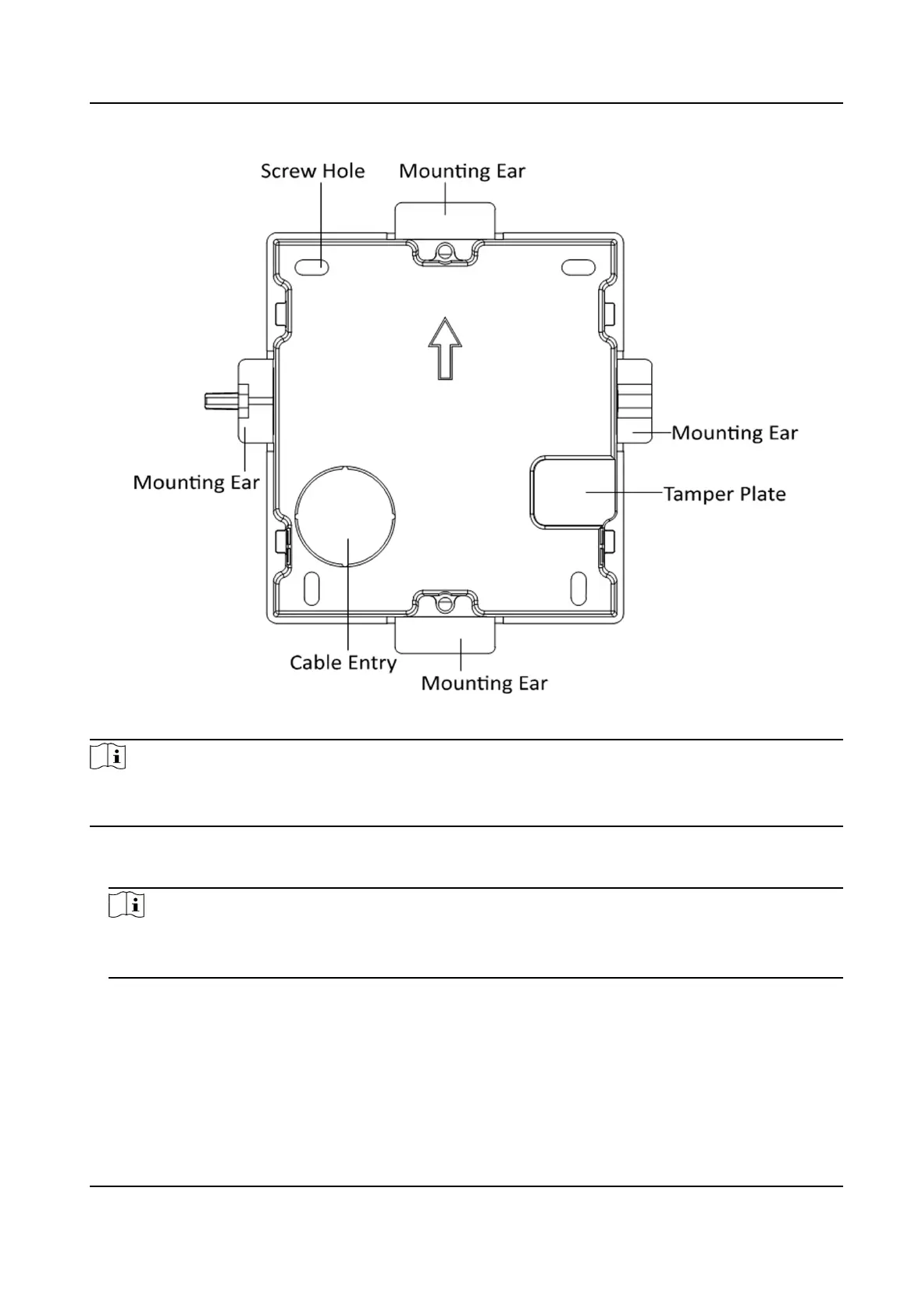

Figure 4-7 Gang Box
Note
The dimension of one-module gang box is: 115 (W) × 134 (H) × 56 (D) mm. The dimension is for
reference only.
Steps
1.
Drill an
installaon hole, and pull the cables out.
Note
●
The suggested dimension of installaon hole is 118 (W) × 108 (H) × 45.5 (D) mm.
●
The suggested length of cables le outside is 100 mm.
DS-KD8003 Series Module Door Staon User Manual
