Figure 4-8 Drill Installaon Hole
2.
Remove the
plasc sheet of the cable entry.
3.
Mark the gang box screw holes on the wall.
1) Route the cables through the gang box hole.
2) Insert the gang box into the
installaon hole.
3) Mark the gang box screw holes' posion with a marker, and take out the gang box.

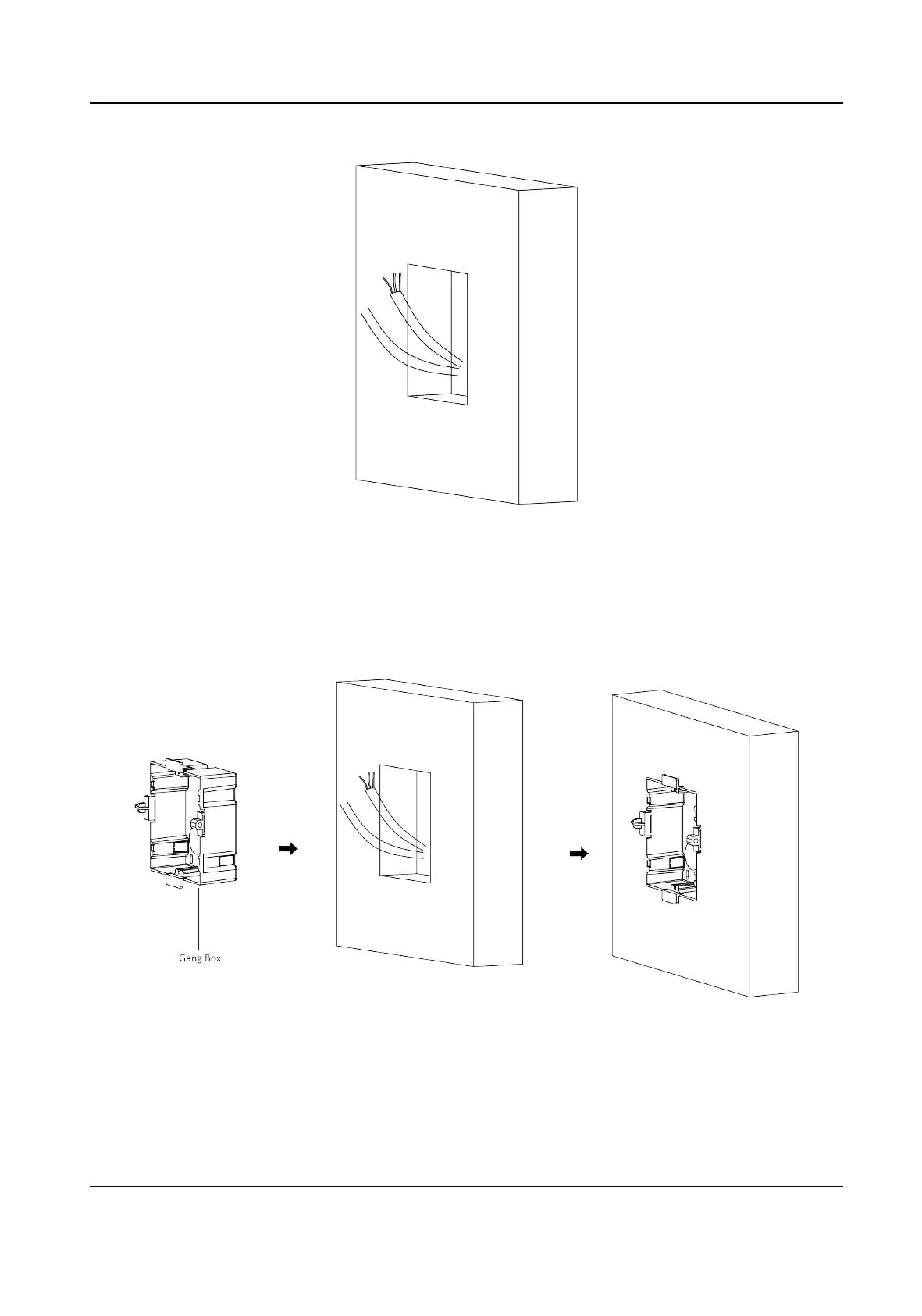

Figure 4-9 Mark the Screw Holes
4.
Drill 4 holes according to marks on the wall, and insert the expansion sleeves into the screw
holes.
DS-KD8003 Series Module Door Staon User Manual
