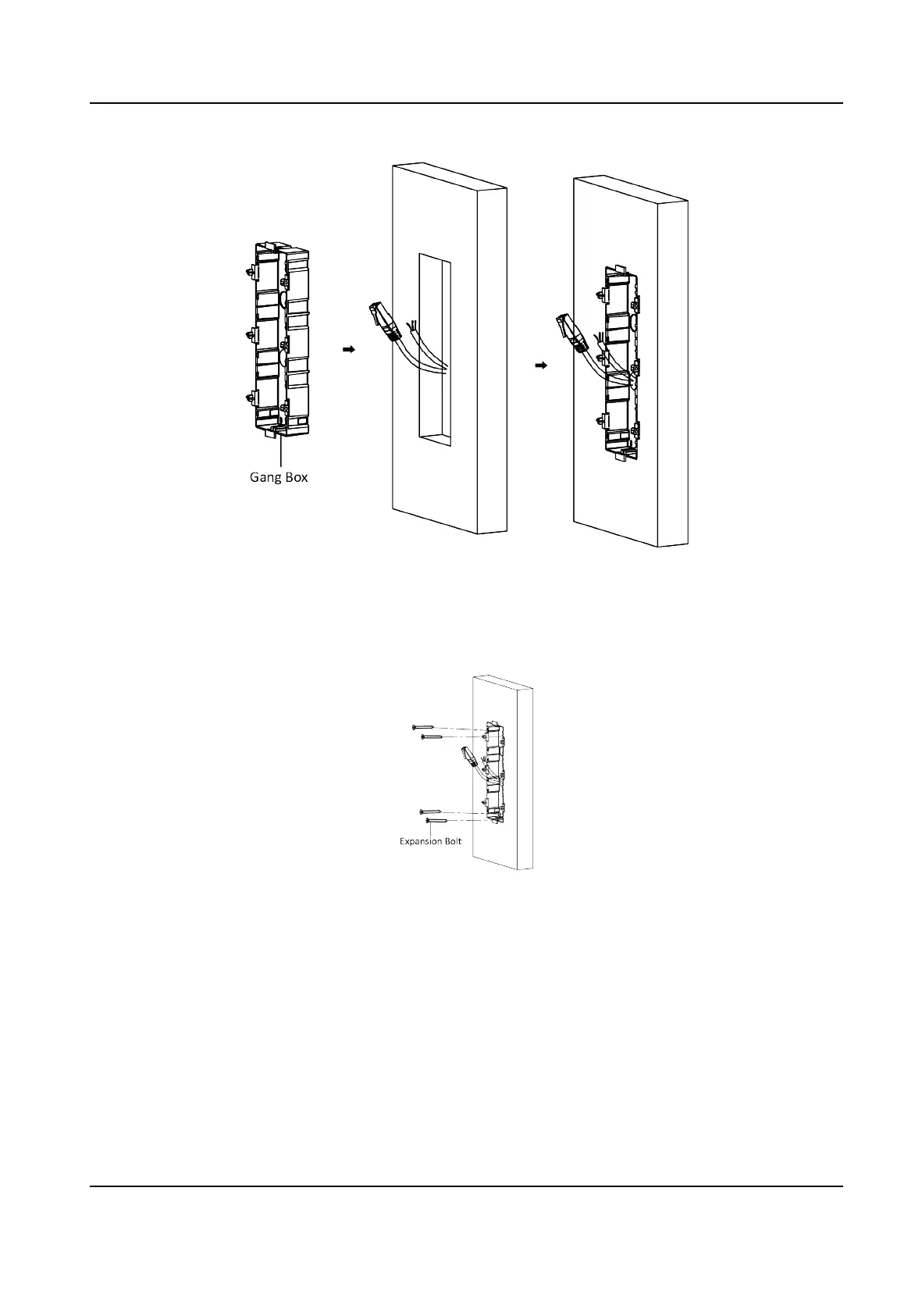

Figure 4-38 Mark the Screw Holes
4.
Drill 4 holes according to marks on the wall, and insert the expansion sleeves into the screw
holes. The suggested size of hole is 6 (diameter) × 45 (depth) mm.
5.
Fix the gang box with 4 expansion bolts.
Figure 4-39 Fix the Gang Box
6.
Fill the gap between the gang box and wall with concrete. Remove the mounng ears with tool
aer concrete is dry.
DS-KD8003 Series Module Door Staon User Manual
50
