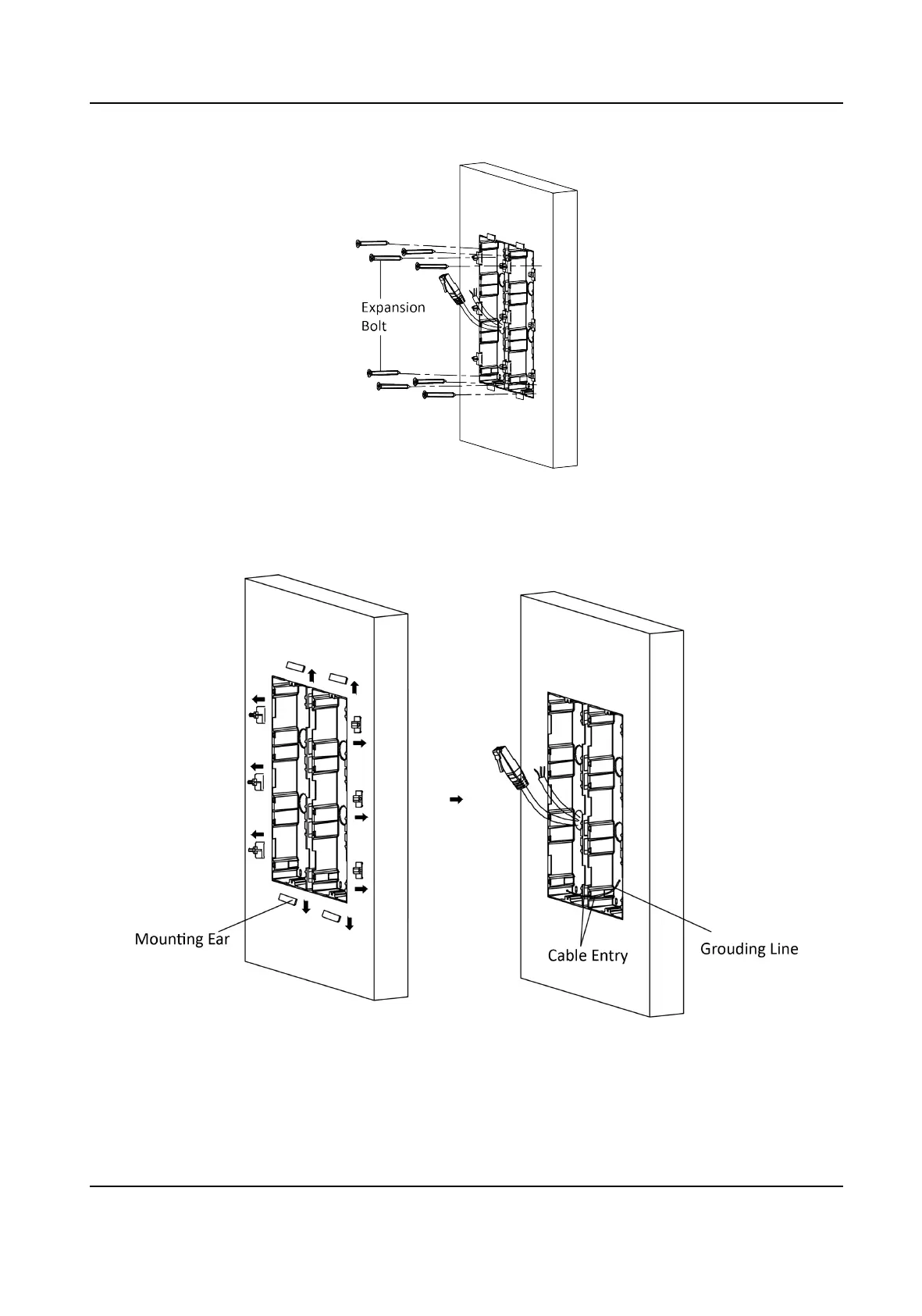

Figure 4-57 Fix the Gang Boxes
8.
Fill the gap between the gang box and wall with concrete. Remove the mounng ears with tool
aer concrete is dry. Route the grounding line through the cable entries.
Figure 4-58 Remove the Mounng Ears
