Note
The green-yellow line in the package is for grounding.
9.
Connect cables and insert the modules.
1) Connect Cable 1 and one end of Cable 2 to the corresponding interfaces of the Main Unit,
then place the Main Unit into the upper grid of the le gang box.
2) Connect the other end of Cable 2 to the input interface of Sub Module 1. Connect one end of
Cable 3 to the output interface of Sub Module 1 and insert it into the middle grid of the le
gang box.
3) Finish the wiring and inserng according to the cable number and the posion shown as
below.

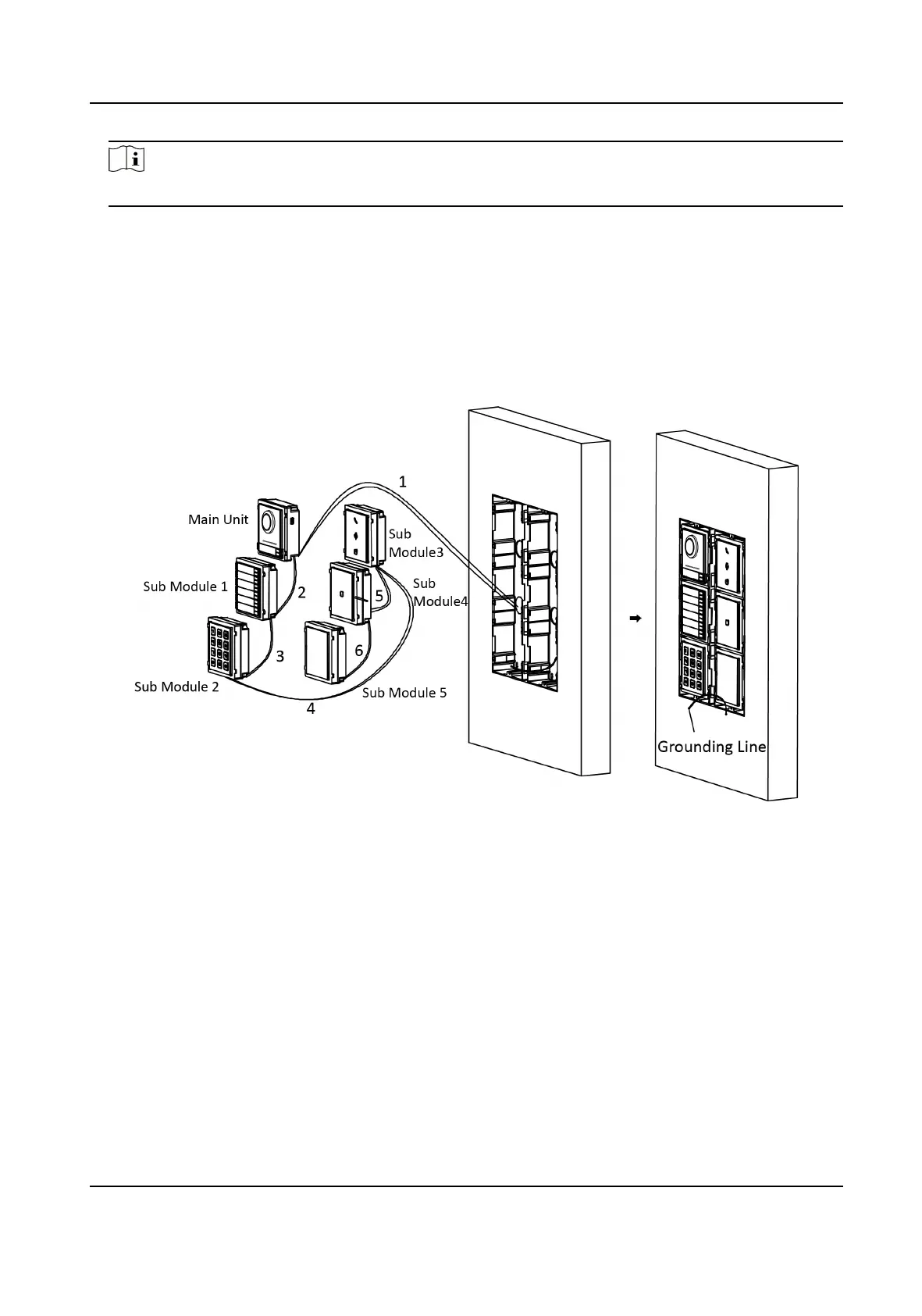

Figure 4-59 Install Mounng Frame
The cables connect to each module shown as below.
