Align the device with the mounng plate, and secure the device on the mounng plate with 1
supplied screw (SC-M3X8NL-SUS316L-GB78).

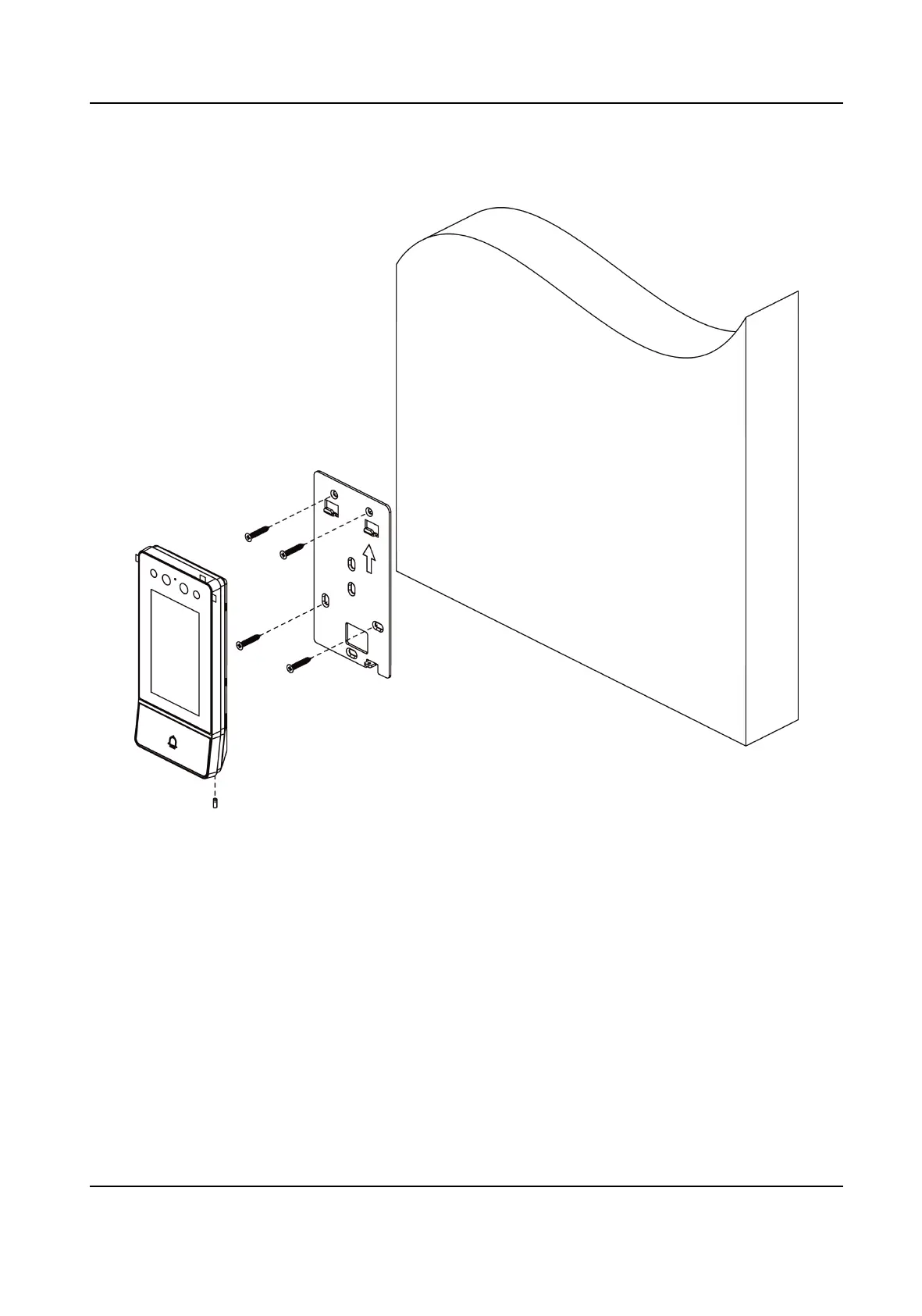

Figure 3-3 Surface Mounng
3.3 Flush
Mounng
Steps
1.
Make sure the gang box is installed on the wall.
2.
Secure the
mounng plate on the gang box with the four supplied screws (SC-KA4X25).
3.
Remove the back cover and route the cable through the cable hole, wire the cables and insert
the cables in the gang box.
4.
Align the device with the
mounng plate, and secure the device on the mounng plate with 1
supplied screw (SC-M3X8NL-SUS316L-GB78).
Video Intercom Villa Door Staon User Manual
8

HIKVISION DS-KV9503-WBE1 Specifications

General

Color	Yes
Speakerphone	-
Connectivity technology	Wired & Wireless
Number of displays supported	1
Maximum number of cameras supported	2
Voice codecs	G.711, G.711a
IK code	IK08
Proper use	Outdoor
Product color	Black, Silver
Placement supported	Vertical
International Protection (IP) code	IP65
Megapixel	2 MP
Sensor type	CMOS
Viewing angle, vertical	44 °
Viewing angle, horizontal	88 °
Display diagonal	4.3 \
Touchscreen type	Capacitive
Display resolution	800 x 480 pixels
Display technology	IPS
Video formats supported	H.264, H.265
Operating system installed	Linux
Quantity per pack	1 pc(s)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Indoor unit power type	DC
Power consumption (typical)	6 W
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	25.63 mm
Width	84.78 mm
Height	181.93 mm
Weight	490 g
