Set the stream type, the video type, the resoluon, the bitrate type, the video quality, the frame
rate, the Max. bitrate, the video encoding, and I Frame Interval.
Click Save to save the sengs aer the conguraon.

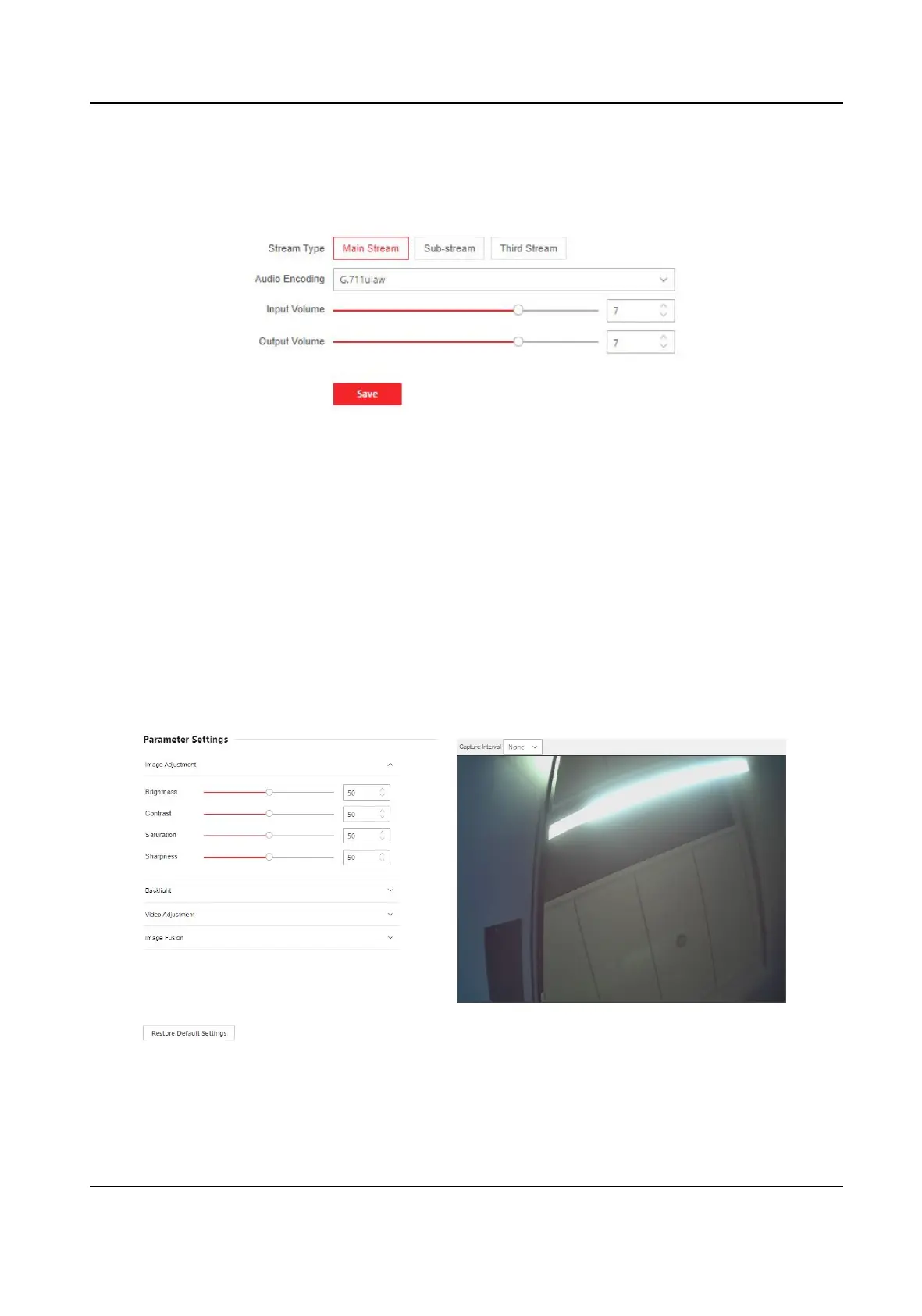

Figure 8-6 Audio Sengs
Set the stream type, audio encoding, input volume, and output volume according to your actual
needs.
Click Save to save the sengs.
8.6.10 Set Image Parameters
You can adjust the image parameters, video parameters, supplement parameters and capture
interval.
Steps
1.
Click Conguraon → Image .
Figure 8-7 Image Sengs
2.
Congure the parameters to adjust the image.
Video Intercom Villa Door Staon User Manual
54

HIKVISION DS-KV9503-WBE1 Specifications

General

Color	Yes
Speakerphone	-
Connectivity technology	Wired & Wireless
Number of displays supported	1
Maximum number of cameras supported	2
Voice codecs	G.711, G.711a
IK code	IK08
Proper use	Outdoor
Product color	Black, Silver
Placement supported	Vertical
International Protection (IP) code	IP65
Megapixel	2 MP
Sensor type	CMOS
Viewing angle, vertical	44 °
Viewing angle, horizontal	88 °
Display diagonal	4.3 \
Touchscreen type	Capacitive
Display resolution	800 x 480 pixels
Display technology	IPS
Video formats supported	H.264, H.265
Operating system installed	Linux
Quantity per pack	1 pc(s)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Indoor unit power type	DC
Power consumption (typical)	6 W
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	25.63 mm
Width	84.78 mm
Height	181.93 mm
Weight	490 g
