HIKVISION DS-KV9503-WBE1 User Manual

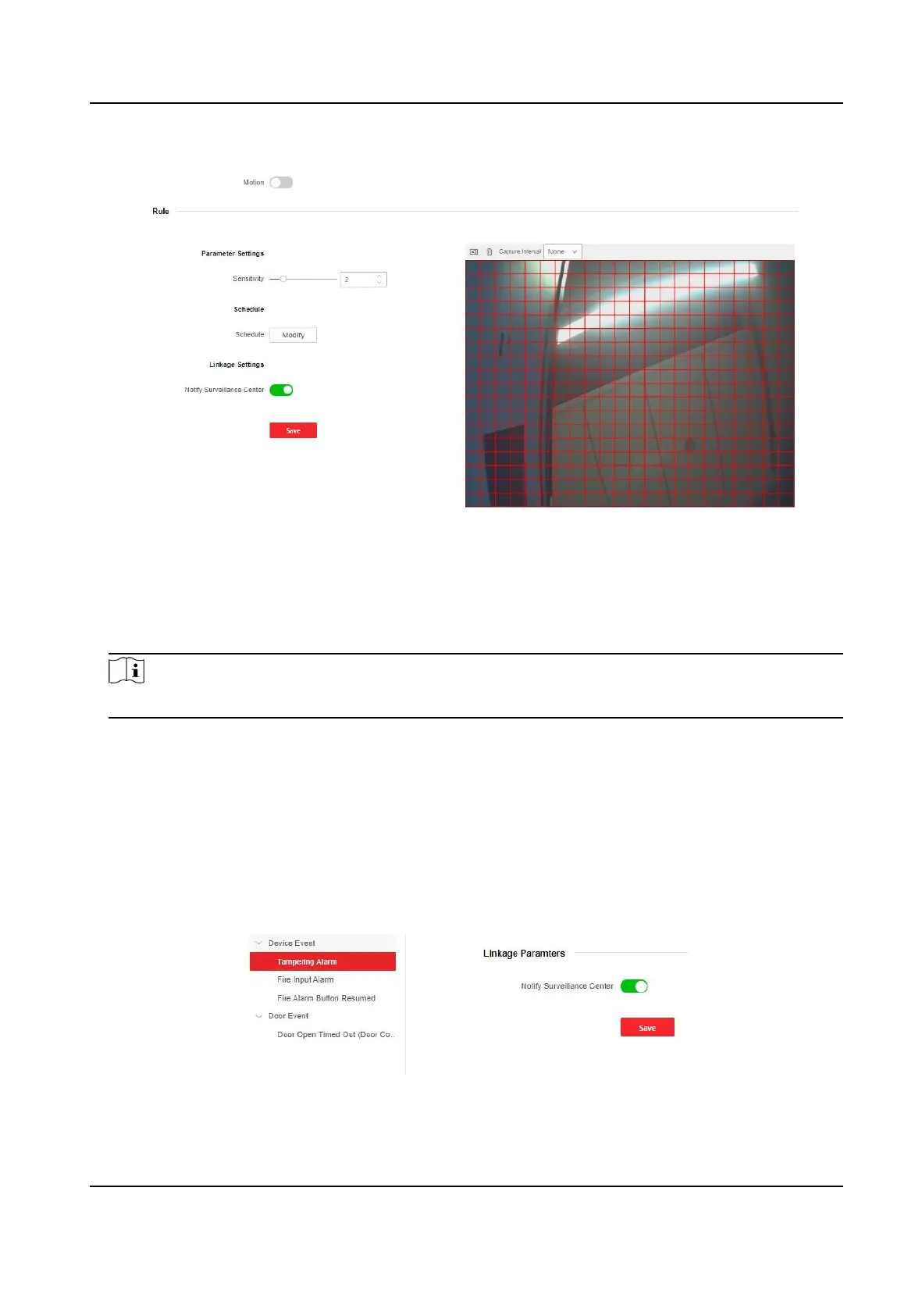

Figure 8-8 Moon Detecon
2.
Drag the block or set value to adjust sensivity.
3.
Click Modify to edit the arming schedule.
4.
Click on the
me bar and drag to select the me period. Click Save to save the sengs.
5.
Click to enable Nofy Security Center.
Note
Send an excepon or alarm signal to the remote management soware when an event occurs.
6.
Click Save to enable the sengs.
8.6.12 Event Linkage
Set linked acons for events.
Steps
1.
Click Conguraon → Event → Event Detecon → Linkage Sengs to enter the page.
Figure 8-9 Event Linkage
Video Intercom Villa Door Staon User Manual
56

HIKVISION DS-KV9503-WBE1 Specifications

General

Color	Yes
Speakerphone	-
Connectivity technology	Wired & Wireless
Number of displays supported	1
Maximum number of cameras supported	2
Voice codecs	G.711, G.711a
IK code	IK08
Proper use	Outdoor
Product color	Black, Silver
Placement supported	Vertical
International Protection (IP) code	IP65
Megapixel	2 MP
Sensor type	CMOS
Viewing angle, vertical	44 °
Viewing angle, horizontal	88 °
Display diagonal	4.3 \
Touchscreen type	Capacitive
Display resolution	800 x 480 pixels
Display technology	IPS
Video formats supported	H.264, H.265
Operating system installed	Linux
Quantity per pack	1 pc(s)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, RTSP
Indoor unit power type	DC
Power consumption (typical)	6 W
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	25.63 mm
Width	84.78 mm
Height	181.93 mm
Weight	490 g
