HIKVISION HWN Series User Manual

Network Video Recorder User Manual
40

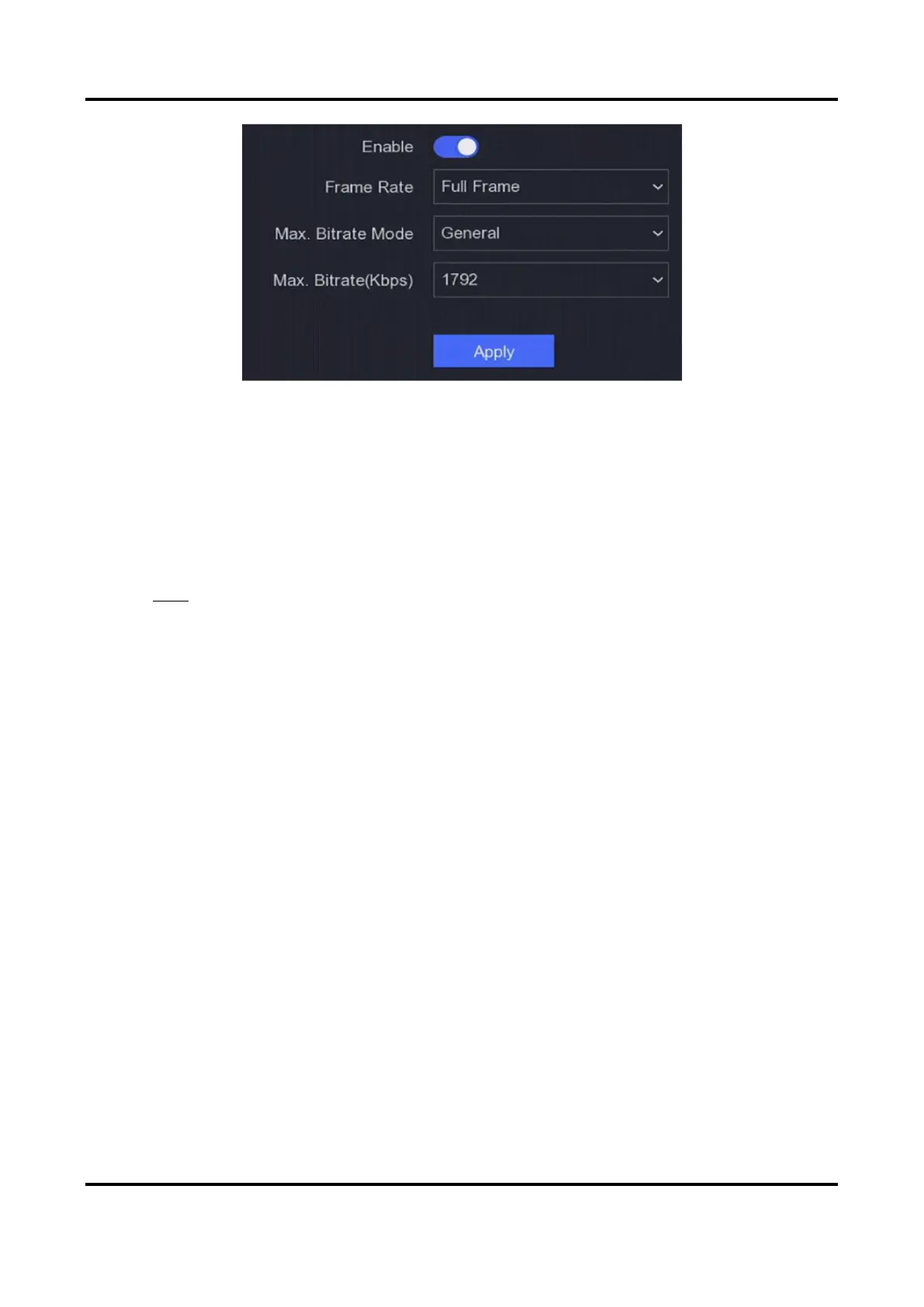

Figure 6-4 Channel-Zero
4. Turn on Enable.
5. Configure Frame Rate, Max. Bitrate Mode, and Max. Bitrate. The higher frame rate and bitrate
require higher bandwidth requirement.
6. Click Apply.
6.1.3 User
Refer to User for details.
6.2 Network Configuration
6.2.1 TCP/IP
TCP/IP must be properly configured before you operate video recorder over network.
Steps
1. Go to Configuration → Network → General → TCP/IP.
2. Configure network parameters.
Working Mode
● Multi-address Mode:
● The parameters of the two NIC cards can be configured independently. You can select
LAN1 or LAN2 in the NIC type field for parameter settings. You can select one NIC card as
default route. And then the system is connecting with the extranet and the data will be
forwarded through the default route.
● Net-fault Tolerance Mode:
● The two NIC cards use the same IP address, and you can select the Main NIC to LAN1 or
LAN2. By this way, in case of one NIC card failure, the video recorder will automatically
enable the other standby NIC card so as to ensure the normal running of the whole system.
● Load Balance Mode:

HIKVISION HWN Series Specifications

General

Model Series	HWN Series
Video Input	IP Video Input
Video Output	HDMI, VGA
Operating System	Embedded Linux
Type	NVR
Channels	Varies by model (4/8/16/32/64)
Recording Resolution	Up to 12MP
Resolution	Varies by model
Hard Drive Support	Yes
HDD Slots	Varies by model (1/2/4/8)
Max HDD Capacity	Up to 10TB per HDD
Network Interface	RJ45 10/100/1000Mbps
USB Interface	USB 2.0, USB 3.0
Operating Temperature	-10°C to +55°C (14°F to 131°F)
Operating Humidity	10% to 90%
Dimensions	Varies by model
Weight	Varies by model
Category	Network Video Recorder (NVR)
Power Supply	12 VDC
