HIKVISION Network Speed Dome User Manual

User Manual of VCA Network Speed Dome
© Hikvision
130
Appendix 7 Alarm In/Out Connections
This section is only for the speed domes with alarm in/out functions.
The speed dome can be connected with alarm inputs (0~5VDC) and alarm outputs.
Refer to the following diagrams for alarm output:
JQC-
3FG
Relay
30VDC
GND OUT
L N
～220V AC
Relay Output
Dome
(10 A 250VAC)
Diagram (left)
Diagram(right)
1A
OUT(n)
OUT(n)
+
-
DC
DC Load
Relay Output
Dome
OUT(n)
OUT(n)

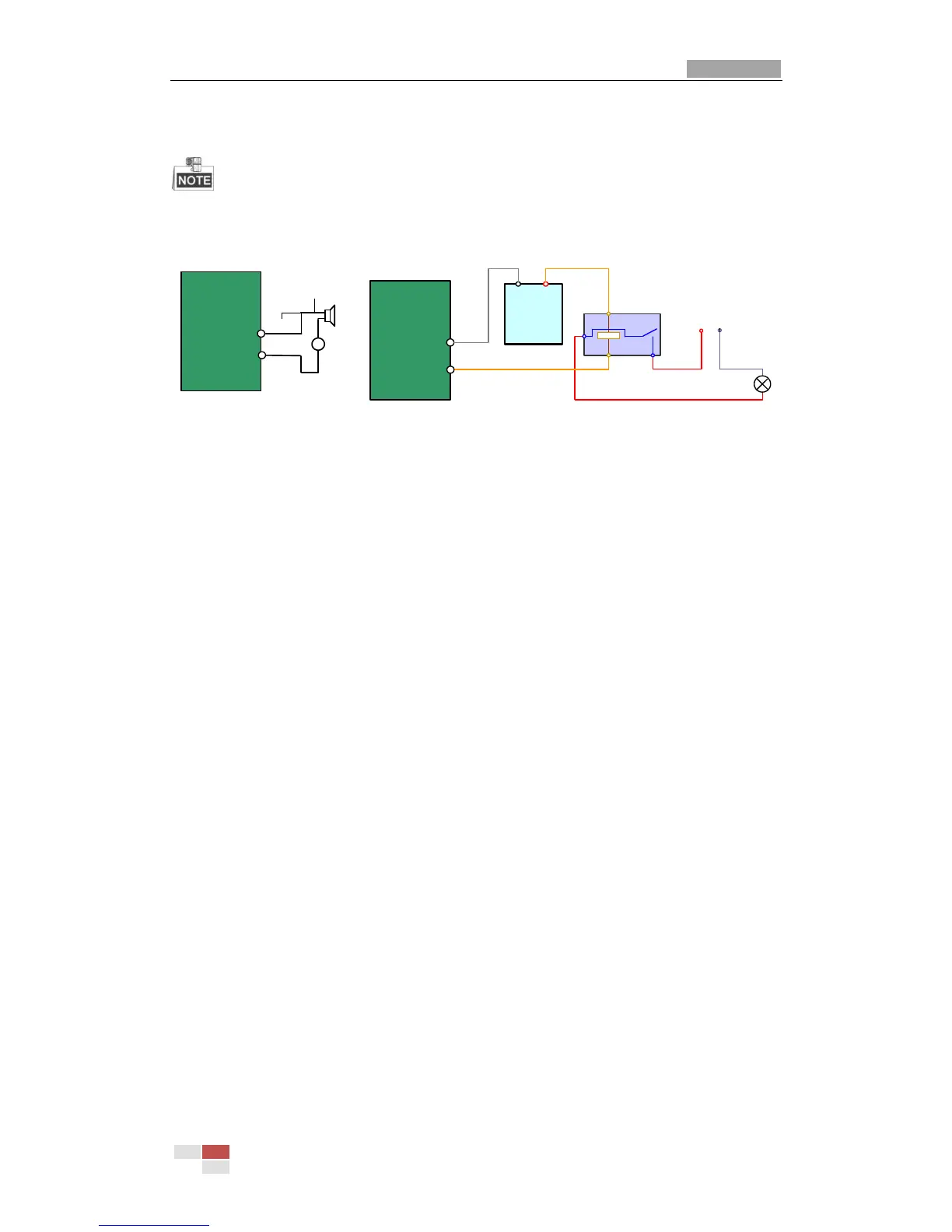

Figure A-11 Alarm Out Connections
The alarm provides the relay output (no voltage), and the external power supply is
required when it connects to the alarm device.
 For DC power supply (left diagram), the input voltage must be no more than
30VDC, 1A.
 For AC power supply, the external relay must be used (right diagram) to prevent
damages to the speed dome and avoid risk of electric shock.

HIKVISION Network Speed Dome Specifications

General

IK code	IK10
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
International Protection (IP) code	IP67
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Automatic gain control	Yes
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Analog signal format system	NTSC, PAL
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.8 \
Pan range	0 - 360 °
Pan speed	210 °/sec
White balance	ATW, Auto, Fluorescent, Indoor, Lamp, Manual, Outdoor
Pan preset speed	280 °/sec
Tilt angle range	-20 - 90 °
Tilt preset speed	250 °/sec
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0 lx
Preset programs quantity	300
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	36 x
Focal length range	- mm
Detect distance (tele)	1.5 m
Detect distance (wide)	0.01 m
Maximum aperture number	4.5
Minimum aperture number	1.5
Type	IP security camera
PTZ modes	4 Pattern, Auto Scan
PTZ protocols	Pelco-P/D
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Behavior analysis	Intrusion detection, Line crossing detection
LED type	IR
Night vision distance	200 m
Voice codecs	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio input channels	1 channels
Audio formats supported	PCM
Wi-Fi	No
Number of users	32 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1x
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Number of simultaneous users	20 user(s)
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	256 GB
AC input voltage	24 V
Power source type	AC, PoE
Power consumption (max)	60 W
Power consumption (Power over Ethernet (PoE))	50 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	410 mm
Weight	8000 g
Diameter	266.6 mm
