7.2 Initializing and Configuring Storage
Steps:
1. Initialize the local disk or added network disk.
(1) Enter the HDD Settings interface (Advanced Configuration > Storage >
Storage Management), in which you can view the capacity, free space, status,
type and property of the disk.
(2) If the status of the disk is Uninitialized as shown in Figure 7-3, check the
corresponding checkbox to select the disk and click to start
initializing the disk.

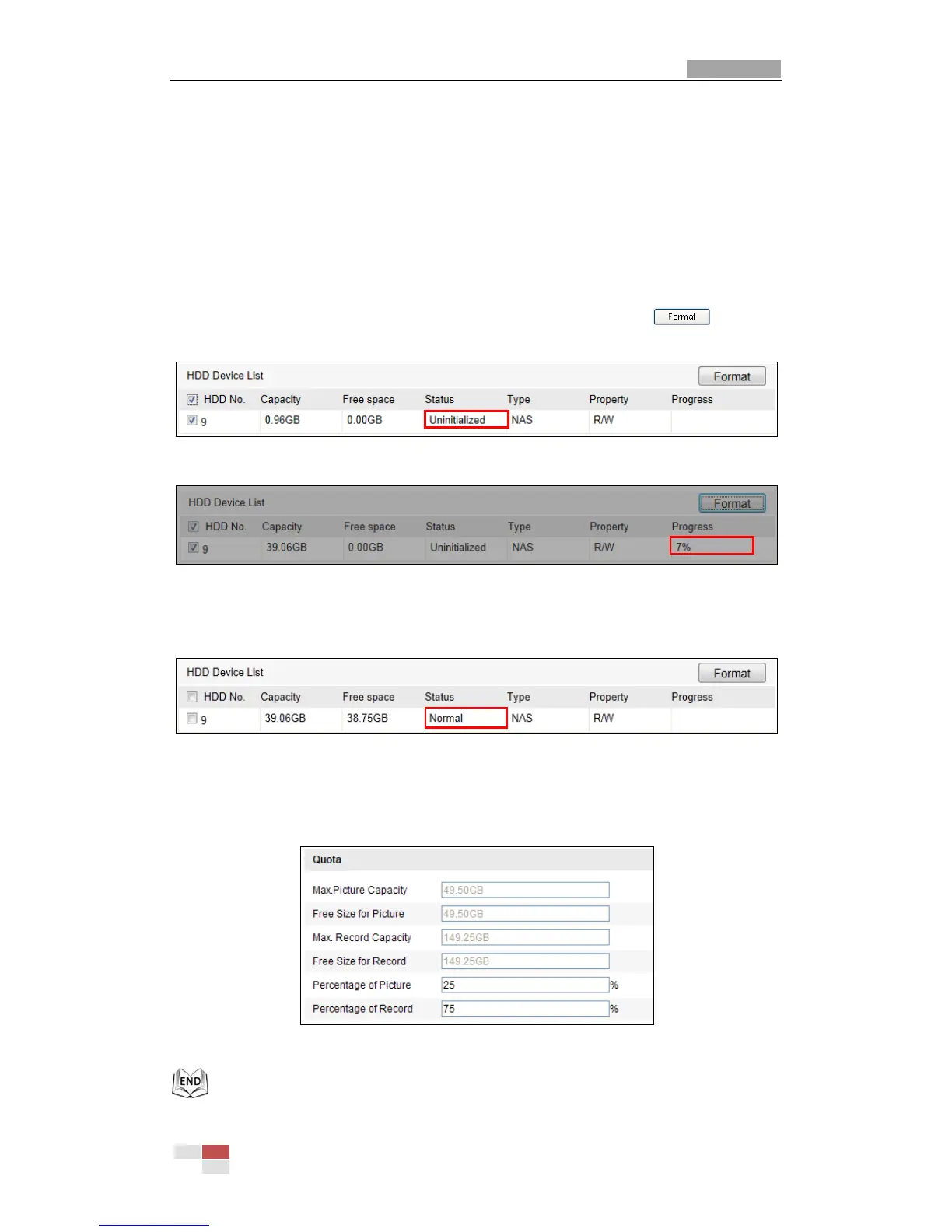

Figure 7-3 Initialize Disk
Figure 7-4 Initializing
When the initialization completed, the status of disk will become Normal as
shown in Figure 7-5.
Figure 7-5 View Disk Status
2. Configure the quota for saving the video and picture.
Enter the percentage for picture and record in the text filed, and the total
percentage must be 100%.
Figure 7-6 Setting Quota

HIKVISION Network Speed Dome Specifications

General

IK code	IK10
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
International Protection (IP) code	IP67
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Automatic gain control	Yes
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Analog signal format system	NTSC, PAL
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.8 \
Pan range	0 - 360 °
Pan speed	210 °/sec
White balance	ATW, Auto, Fluorescent, Indoor, Lamp, Manual, Outdoor
Pan preset speed	280 °/sec
Tilt angle range	-20 - 90 °
Tilt preset speed	250 °/sec
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0 lx
Preset programs quantity	300
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	36 x
Focal length range	- mm
Detect distance (tele)	1.5 m
Detect distance (wide)	0.01 m
Maximum aperture number	4.5
Minimum aperture number	1.5
Type	IP security camera
PTZ modes	4 Pattern, Auto Scan
PTZ protocols	Pelco-P/D
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Behavior analysis	Intrusion detection, Line crossing detection
LED type	IR
Night vision distance	200 m
Voice codecs	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio input channels	1 channels
Audio formats supported	PCM
Wi-Fi	No
Number of users	32 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1x
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Number of simultaneous users	20 user(s)
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	256 GB
AC input voltage	24 V
Power source type	AC, PoE
Power consumption (max)	60 W
Power consumption (Power over Ethernet (PoE))	50 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	410 mm
Weight	8000 g
Diameter	266.6 mm
