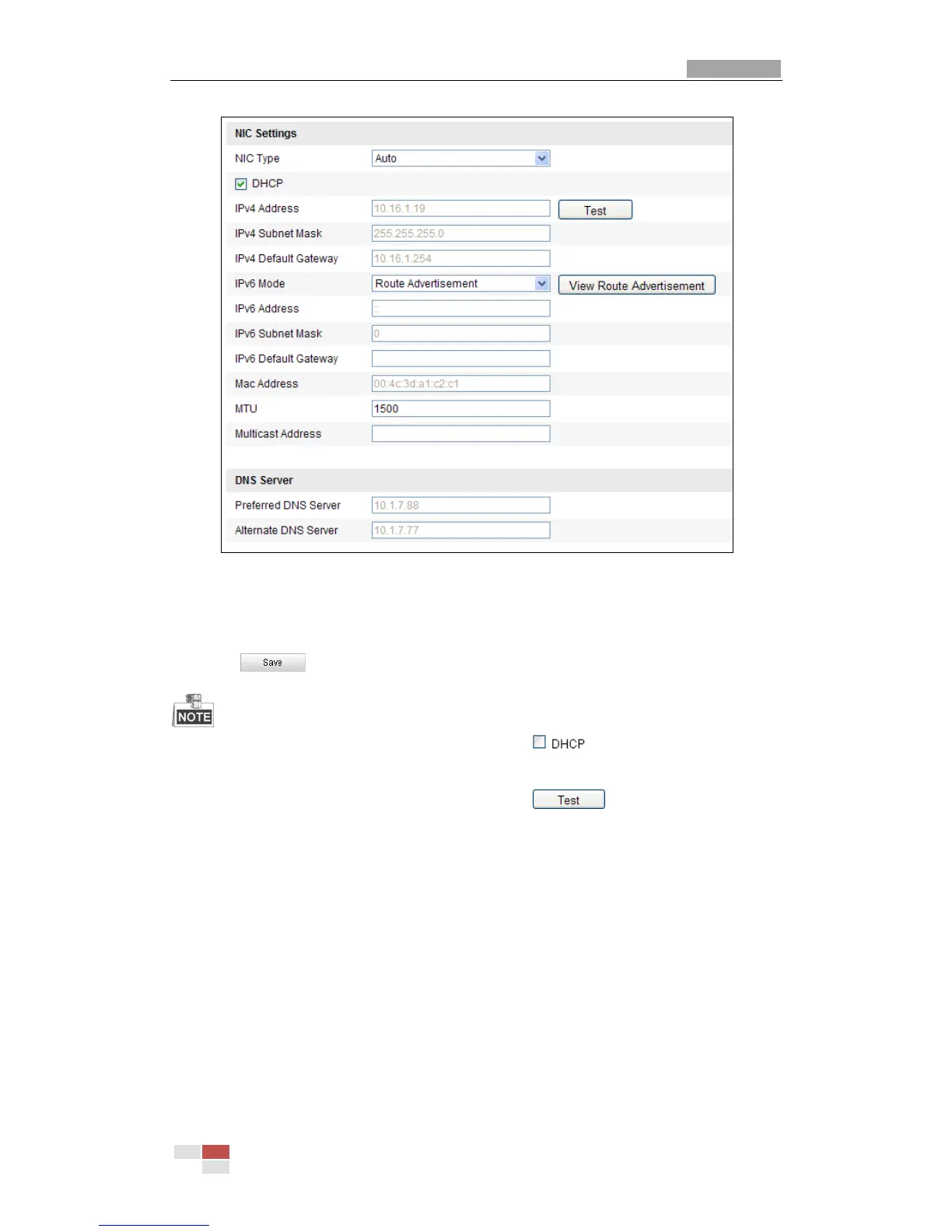

Figure 6-7 TCP/IP Settings
2. Configure the NIC settings, including the IPv4(IPv6) Address, IPv4(IPv6) Subnet
Mask and IPv4(IPv6) Default Gateway.
3. Click to save the above settings.
 If the DHCP server is available, you can check to automatically obtain
an IP address and other network settings from that server.
 If the IP address is set manually, you can click to check whether the
IP address is already used to prevent the IP address confliction.
 The valid value range of Maximum Transmission Unit (MTU) is 500 ~ 9676. The
default value is 1500.
 The Multicast sends a stream to the multicast group address and allows multiple
clients to acquire the stream at the same time by requesting a copy from the
multicast group address.
Before utilizing this function, you have to enable the Multicast function of your
router and configure the gateway of the network speed dome.
 If the DNS server settings are required for some applications (e.g., sending
email), you should properly configure the Preferred DNS Server and Alternate
DNS server.
 Check the checkbox of Enable Multicast Discovery, and then the speed dome
can be detected by client software in the LAN.

HIKVISION Network Speed Dome Specifications

General

IK code	IK10
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
International Protection (IP) code	IP67
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Automatic gain control	Yes
Video compression formats	H.264, H.264+, H.265, H.265+, M-JPEG
Analog signal format system	NTSC, PAL
Supported graphics resolutions	352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/1.8 \
Pan range	0 - 360 °
Pan speed	210 °/sec
White balance	ATW, Auto, Fluorescent, Indoor, Lamp, Manual, Outdoor
Pan preset speed	280 °/sec
Tilt angle range	-20 - 90 °
Tilt preset speed	250 °/sec
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0 lx
Preset programs quantity	300
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	36 x
Focal length range	- mm
Detect distance (tele)	1.5 m
Detect distance (wide)	0.01 m
Maximum aperture number	4.5
Minimum aperture number	1.5
Type	IP security camera
PTZ modes	4 Pattern, Auto Scan
PTZ protocols	Pelco-P/D
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Behavior analysis	Intrusion detection, Line crossing detection
LED type	IR
Night vision distance	200 m
Voice codecs	G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2
Audio input channels	1 channels
Audio formats supported	PCM
Wi-Fi	No
Number of users	32 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1x
Ethernet interface type	Fast Ethernet
Supported network protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Number of simultaneous users	20 user(s)
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Maximum memory card size	256 GB
AC input voltage	24 V
Power source type	AC, PoE
Power consumption (max)	60 W
Power consumption (Power over Ethernet (PoE))	50 W
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90 %

Weight and Dimensions

Height	410 mm
Weight	8000 g
Diameter	266.6 mm
