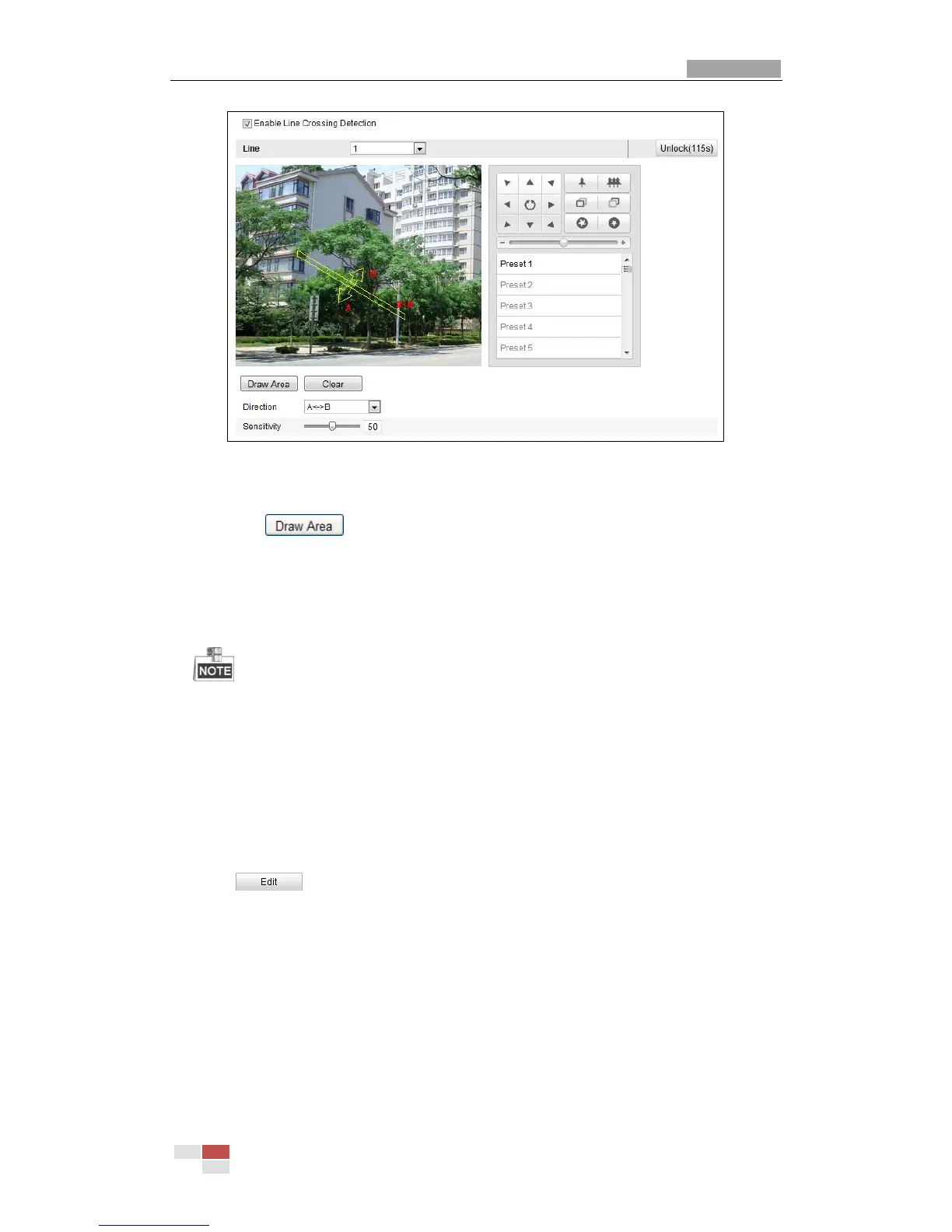

Figure 6-58 Configuring Line
5. Draw area.
(1) Click to draw a line on the image.
(2) Click the line to switch to the editing mode.
Click and drag an end to the desired place to adjust the length and angle of
the line. And click and drag the line to adjust the location.
Up to four lines are supported.
6. Configure the parameters for each defense region separately.
Direction: Select the detection direction in the dropdown list, there are A<->B,
A->B and B->A selectable.
Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the
object which can trigger the alarm, when the sensitivity is high, a very small
object can trigger the alarm.
7. Click to edit the arming schedule for line crossing detection. The
arming schedule configuration is the same as the setting of the arming schedule
for motion detection. Refer to Step 2 in Section 6.6.1 Configuring Motion
Detection.
8. Check the checkbox to select the linkage method taken for the line crossing
detection. Notify surveillance center, send email, upload to FTP, trigger channel,
smart tracking and trigger alarm output are selectable. Please refer to Step 3 in
Section 6.6.1 Configuring Motion Detection.
