Set-up of Charging Curve
DP1 DP2 DP4 Set Up Yellow LED Green LED Flash
OFF OFF OFF IUI0-Pb Flooded OFF 1
ON ON OFF IUoU-Gel Trojan OFF 2
OFF ON OFF IUoU-AGM GEL OFF 3
ON OFF OFF IUI0-Gel Sonnenschein OFF 4
OFF OFF ON IUIa-Pb Flooded ON 1
ON ON ON IUI0-AGM EV-Discover ON 2
OFF ON ON IUa-AGM Zenith ON 3
ON OFF ON IUIa-Gel Sonnenschein ON 4
Error Codes of Charger
The charger have an alarm system through successive flashes of the yellow LED.
Error code
Flash Description
1 Battery not connected or reverse polarity or output short circuit.
Verify the battery connection.
2 Alarm time-out: damaged battery or battery capacity is too high
The alarm is reset disconnecting the main supply. If it persists consult your
service.
3 Faulty battery charger
The alarm is reset disconnecting the main supply. If it persists consult your
service.
4 Overtemperature
The alarm is reset when the charger cools. Verify the ventilation.

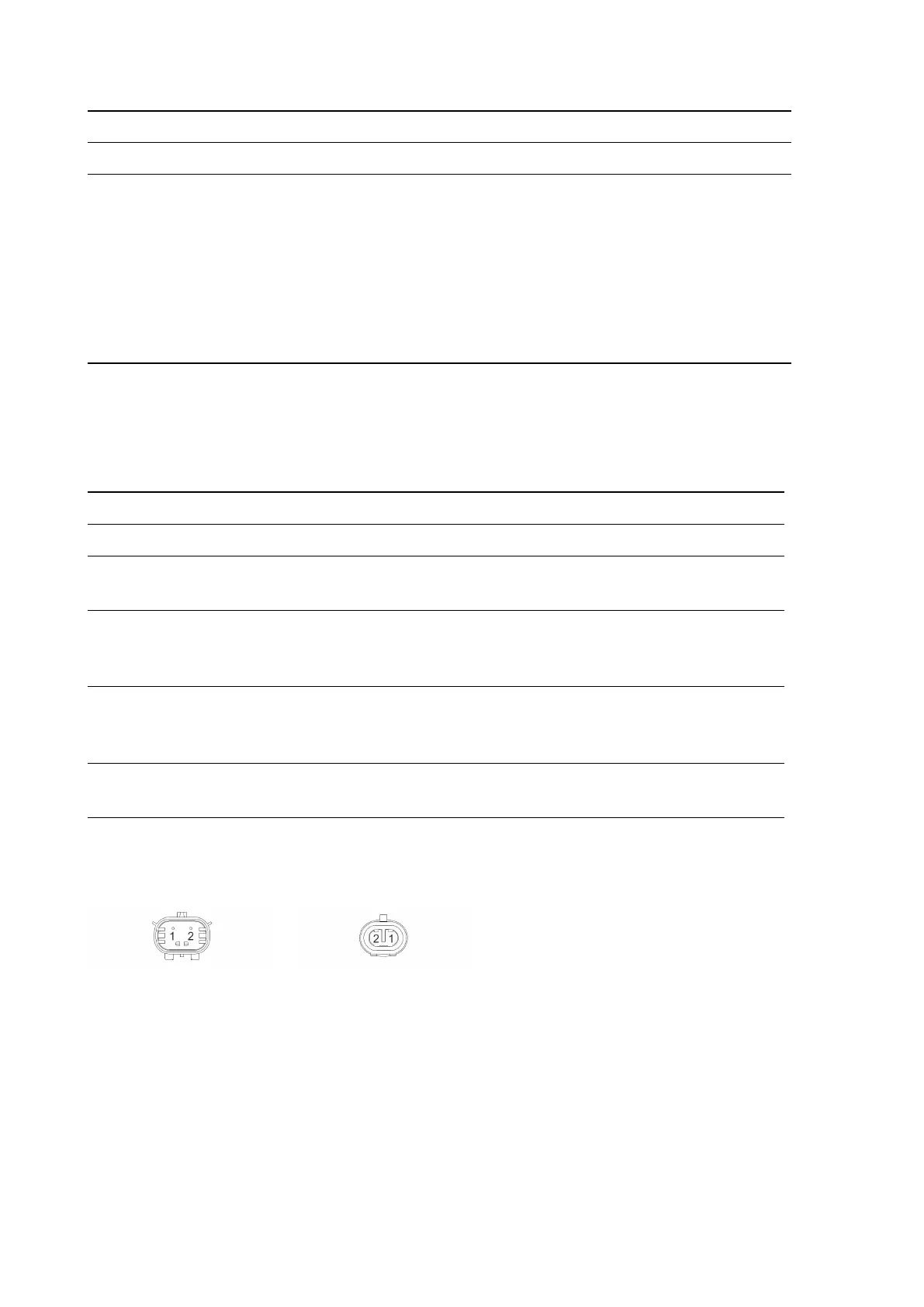

Charger Cables Detail
1 Battery -
2 Battery +
1 COM Relay contact
2 N.C. Relay contact
37
