Hillyard TRIDENT T26SC PLUS - Programming

5.5 Programming

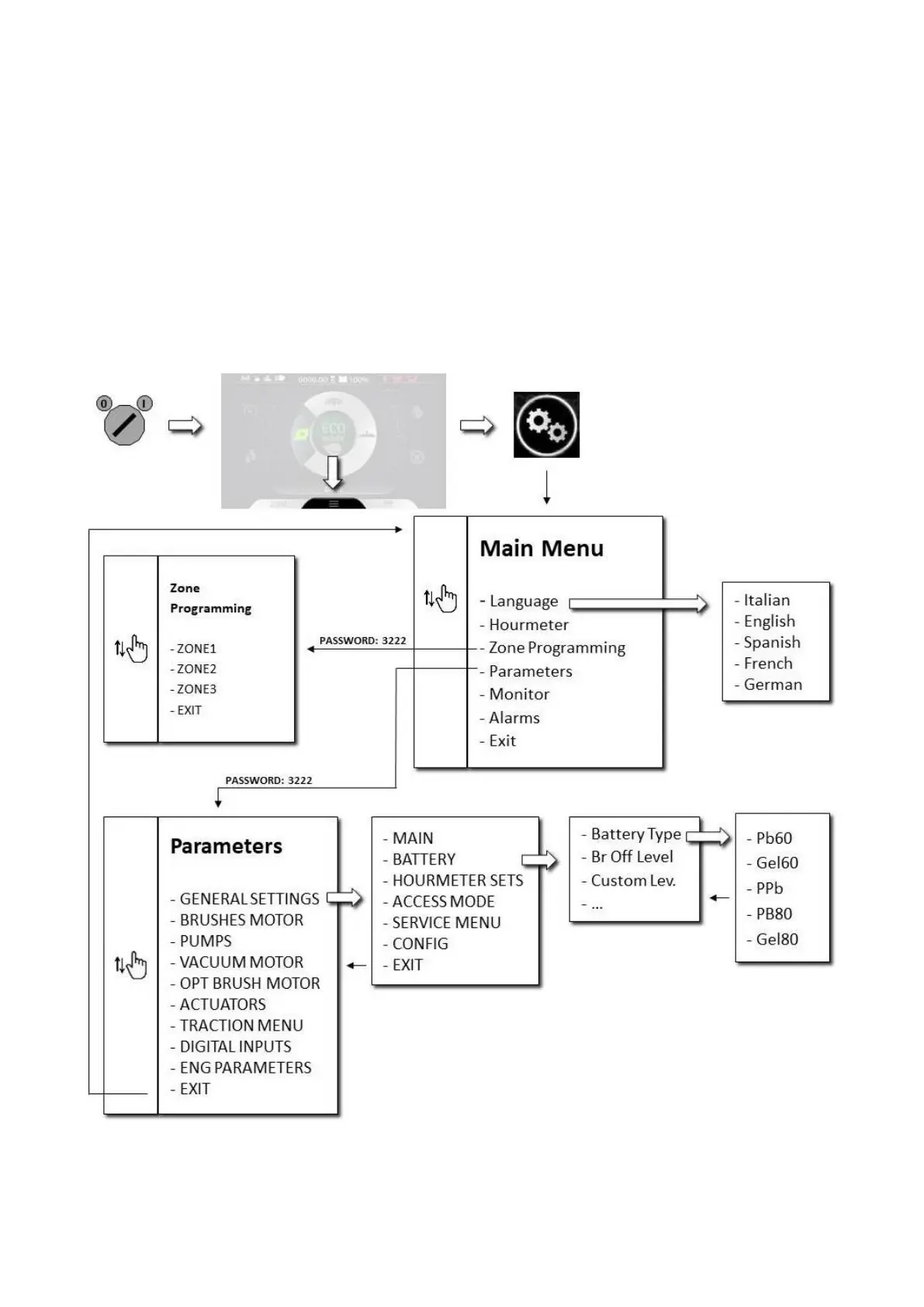

5.5.1 Menu Tree
The Display allows the access to basic settings with free access and to the param-
eter list protected by Password (3222). The structure of the menu can be shown in
the following image.
Turn on the machine and access the menus by following the icons in the diagram
Refer to the specific tables for the submenus of the Parameters Menu.
39
