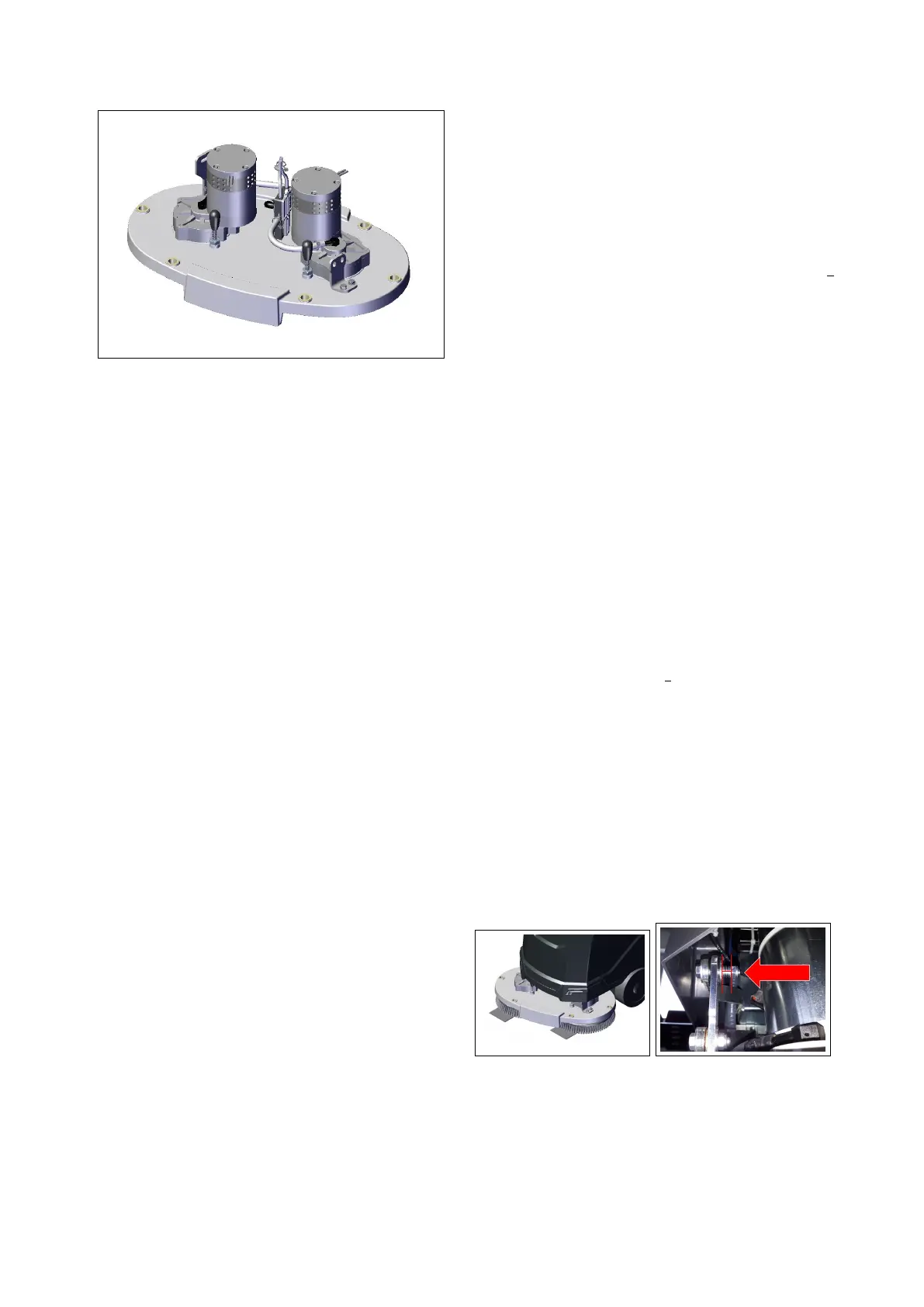

Figure 6.1: T26SC PLUS
6.1.1 Structure T26SC
• Motor
• Brush coupling Flange
• Brush Deck
• Bumper wheel
• Brass bushings
• Lifting Actuator
6.1.2 Description T26SC
The brush head is equipped with two
cylindrical counterrotating brushes with
conveying to the center.
It is composed from a deck on which
are fixed 2 gearmotors which threaded
shafts connected to the flanges, provides
the rotational movement.
6.2 Adjustments
6.2.1 T26SC
The scrub deck is tilted in the transverse
direction and should be adjusted longi-
tudinally inclined to the machine so that
the brushes have a distance of about
1
5
inch from the floor, larger on the front
than on the rear side. This allows the
brush to evenly lean to the ground and
perform its function properly.
Requirements: mounted brush, switched
off machine.
Procedure:
• Hook the brushes to the scrub deck
and remove the 2 splashguards as-
sembly.
• Loosen the brushdeck fixing screw
to the left arm.
• Place on the front of the brush, be-
tween the brush and the floor a
spacer of about
1
5
inch thick (see fig.
6.2.1-1).
• Lower the brush deck to the ground
and tighten the fixing screw of the
left arm.
• Tighten the fixing screw of the right
upper arm until the spring is com-
pressed 0,31in.
6.2.1-1 6.2.1-2
47
