Chapter 8
Machine Frame and Traction System

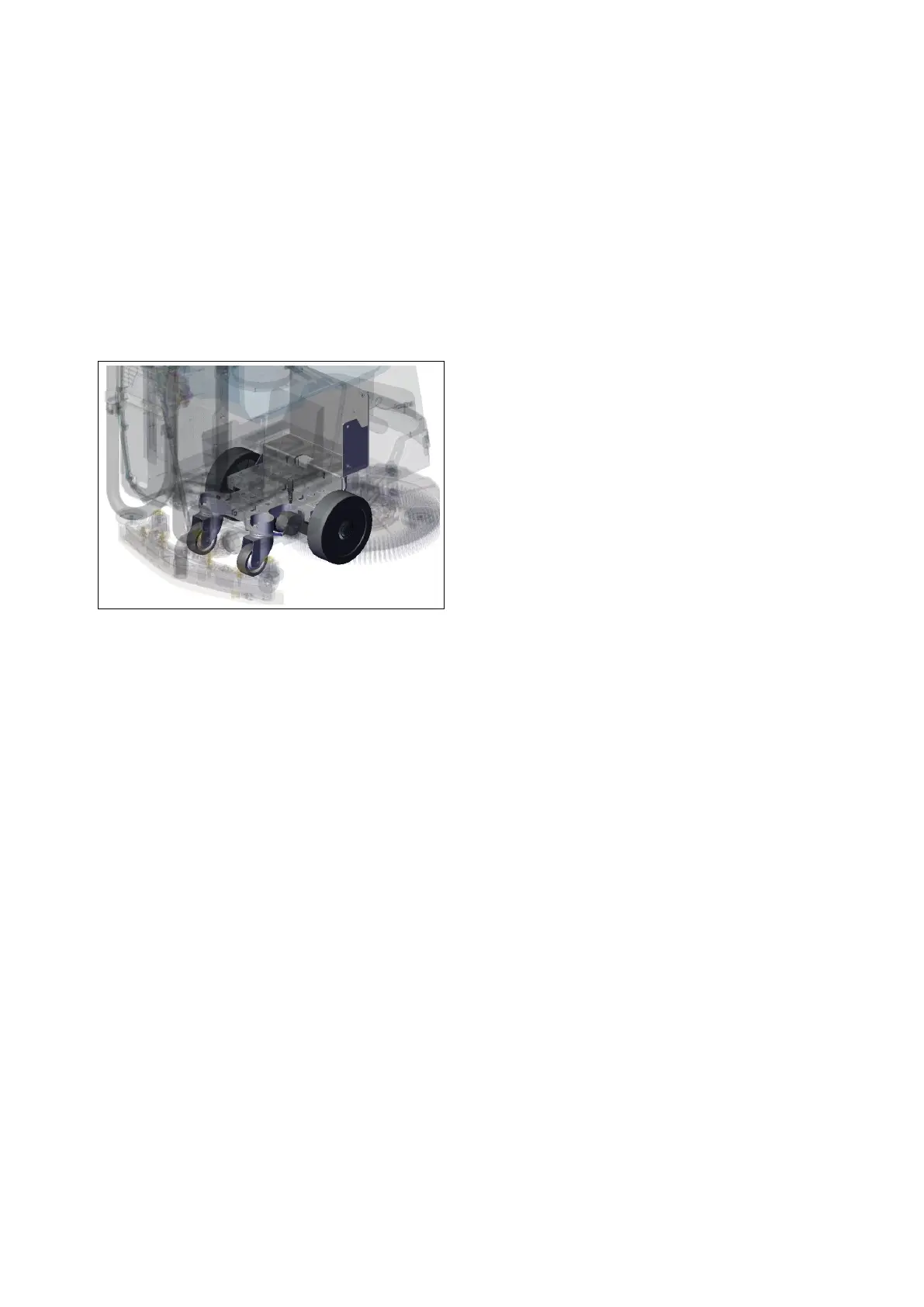

8.1 Structure
1. Frame
2. Front Wheels
3. Traction Motor
4. Electro Brake
8.2 Description
The frame is a single structure on which
are coupled the traction system and the
tanks group.
The machine traction is given by the
electric motor installed with a reduction
gear, whose output shafts act directly on
the machine front wheels, ensuring trac-
tion.
All models are fitted with mixed antiskid
/ non-marking wheels.
The Gearmotor has a parking brake
that acts on the traction wheels through
a control lever situated in proximity of
the right front wheel.
