11
English

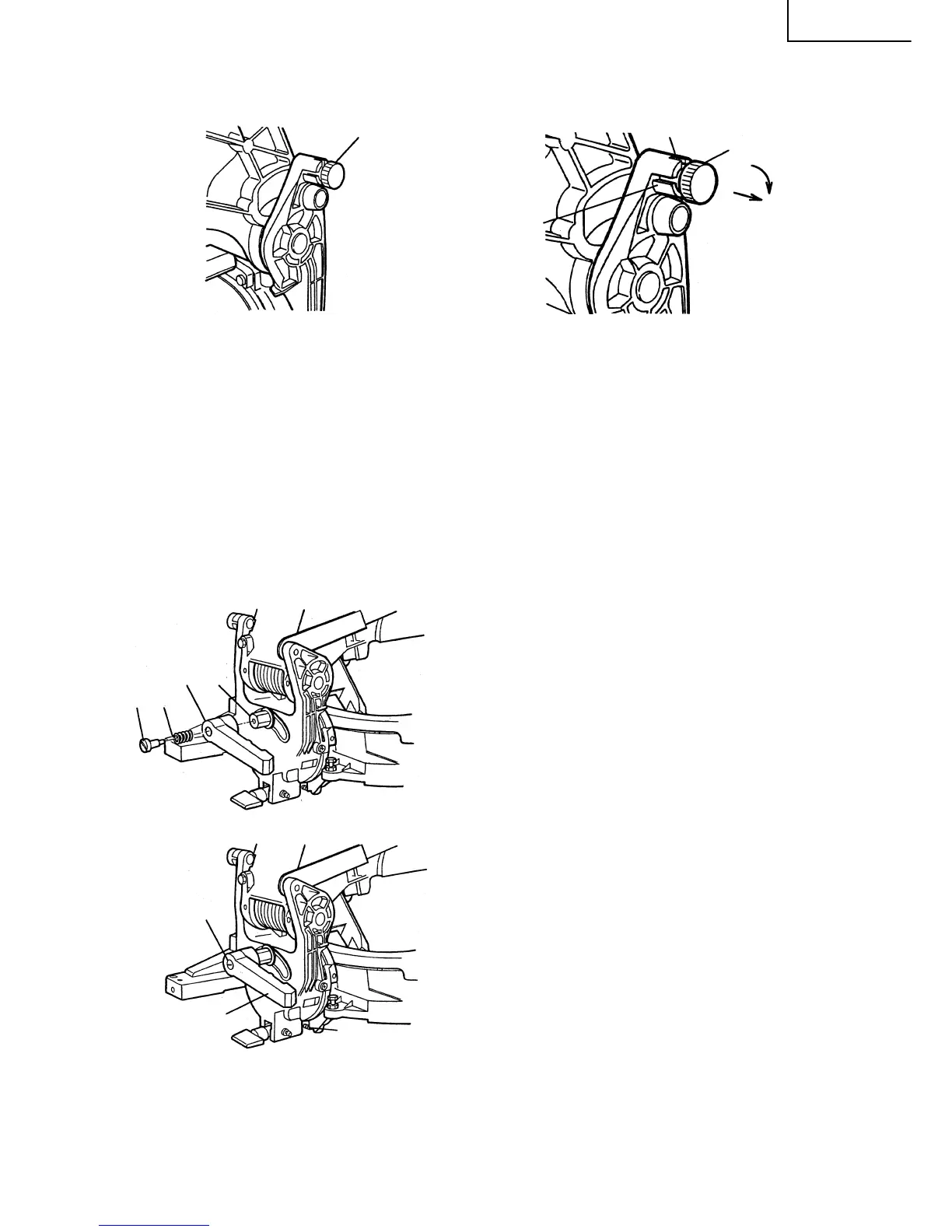

2. Releasing the plunger handle
Fig. 5-a Fig. 5-b
When the power tool is prepared for shipping, its main parts are secured by a plunger handle. M ove the
handle slightly so that the plunger handle can be disengaged and adjusted as indicated in Fig. 5-b.
NOTE: Lowering the handle sloghtly will enable you to disengage the plunger handle mo re easily
and safely.
The lock po sition of the p lunger handle is for carrying and storage only.
For transportation purpose, grasp the handle (see Fig. 1) with one hand and hold the base at the left end
grip section with the other hand to carry.
3. Installing the dust bag, miter handle, extension wing, stock stop and vises.
(The extension wing and stock stop are optional accessories).
Attach the dust bag, miter handle, extension wing, stock stop and vise asse mbly as indicated in Fig. 1
and Fig. 2.
(1) Asse mbly of clam p lever
q Insert spring and screw into the hole of the clam p lever
as shown in Fig. 6.
w Asse mble the cla mp lever to the handle collar, then
tighten the scre w as shown in Fig. 7.
4. Installing the extension stay
(1) Insert the extension stay into the hole of the base.
(2) Fasten the two 5 m m m achine screws and fix an extension stay as indicated in Fig. 2.
Plunger Handle
Plunger Handle
Clockwise
Pull o ut to disenga ge.
Rotate the knob 1/4 turn
and fit the pin stoppers
into the shallo w slot.
Fig. 6
During transport , fit the
plunger handle into the
deep slot.
N OTE: This posi tion is n ot be
used for any cutting
operation.
During operation fit the
plunger handle sto p pers
into the shallo w slot.
Fig. 7
Cla mp Lever
5 m m Hex. soc. hd. cap bolt (C)
(Sto p per for 0°)
Scre w
Ha n dle
Collar
Clam p
Lever
Scre w Spring
To Next Page
