OPTIONAL ACCESSORIES. . . sold separately
q Holder Asse m bly (Fig. 1) (Code N o. 317542)
w Vise Assem bly (Code No. 317541)
e Saw blade 10" (255 m m) TCT Saw blade for fine surface cut (Total teeth: 60) (Code No. 976472)
r Saw blade 10" (255 m m) TCT Saw blade for normal cut (Total teeth:70) (Code No. 976473)
WARNING: Using attachments or accessories not r ecommended in this manual can be dangerous
and cause personal injury or mechanical damag e to the saw.
APPLICATIONS
Wood, plyw ood, color board, soft fabric board, hard board similar m aterials and alu minu m sash.
PREPARATION BEFORE OPERATION
Make the follo wing preparations before operating the power tool:
1. Installation
Fig. 4

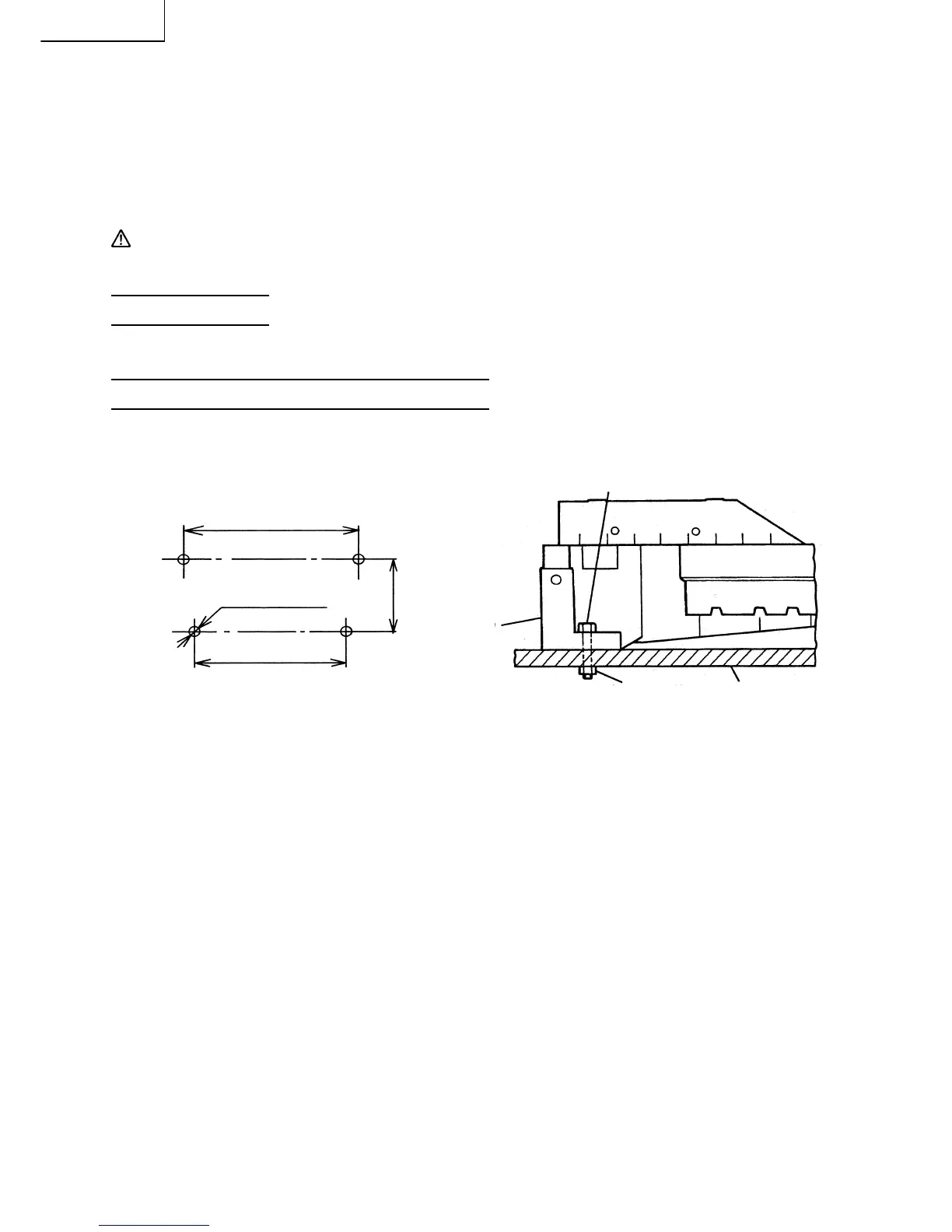

Attach the power tool to a level, horizontal w ork bench in accordance with Fig. 4.
Select 5/16" (8 m m) dia meter bolts suitable in length for the thickness of the w ork bench.
Bolt length should be at least 2" (50 m m) plus the thickness of the w ork bench.
For exam ple, use 5/16" (8 m m) × 3" (75 m m) bolts fot a 1" (25 m m) thick work bench.
The extension stay attached to the rear of the base (see Fig. 2) helps stabilize the power tool.
19-1/16" (484 m m)
1
1
-
1
/
2
"
(
2
9
2
m m
)
3/8" (10 m m), 4 Holes
16-27/32" (428 m m)
5/16" (8 m m) Bolt
Work Bench5/16" (8 m m) N ut
Base
To Next Page
