Disassembly procedure
Disassembly
spots
Item
No.
Necessary tools
(1) Remove the four Machine Screws (W/Washers) M5 x 25 (Black)
[242] and remove the Pulley Cover [317] from the Gear Case
[275].
(2) Pull the Belt (200H10) 16 x 508 [310] outward and turn it to remove
from Pulley (A) [307] and Pulley (B) [305].
(3) Remove the two Machine Screws (W/Washers) M5 x 20 (Black)
[313] and remove Bearing Holder (B) [312A] by lightly tapping the
Gear Case [275] with a plastic hammer.
(4) Remove the two Flat Hd. Screws M4 x 10 [304] and tap the Gear
Case [275] lightly with a plastic hammer to remove the Pinion Ass'y
[300].
(5) Remove the Machine Screw M4 x 8 [316] and remove the Stopper
Pin [314] and the Lock Spring [271] from the Gear Case [275].
NOTE: Be careful when removing the Machine Screw M4 x 8 [316]
because the Stopper Pin [314] and the Lock Spring [271]
pop out from the Gear Case [275].
(6) Remove the two Machine Screws M5 x 20 [296] and remove the
Spindle Ass'y [292] by lightly tapping the Gear Case [275] with a
plastic hammer.
4
Belt, pinion ass'y,
spindle ass'y

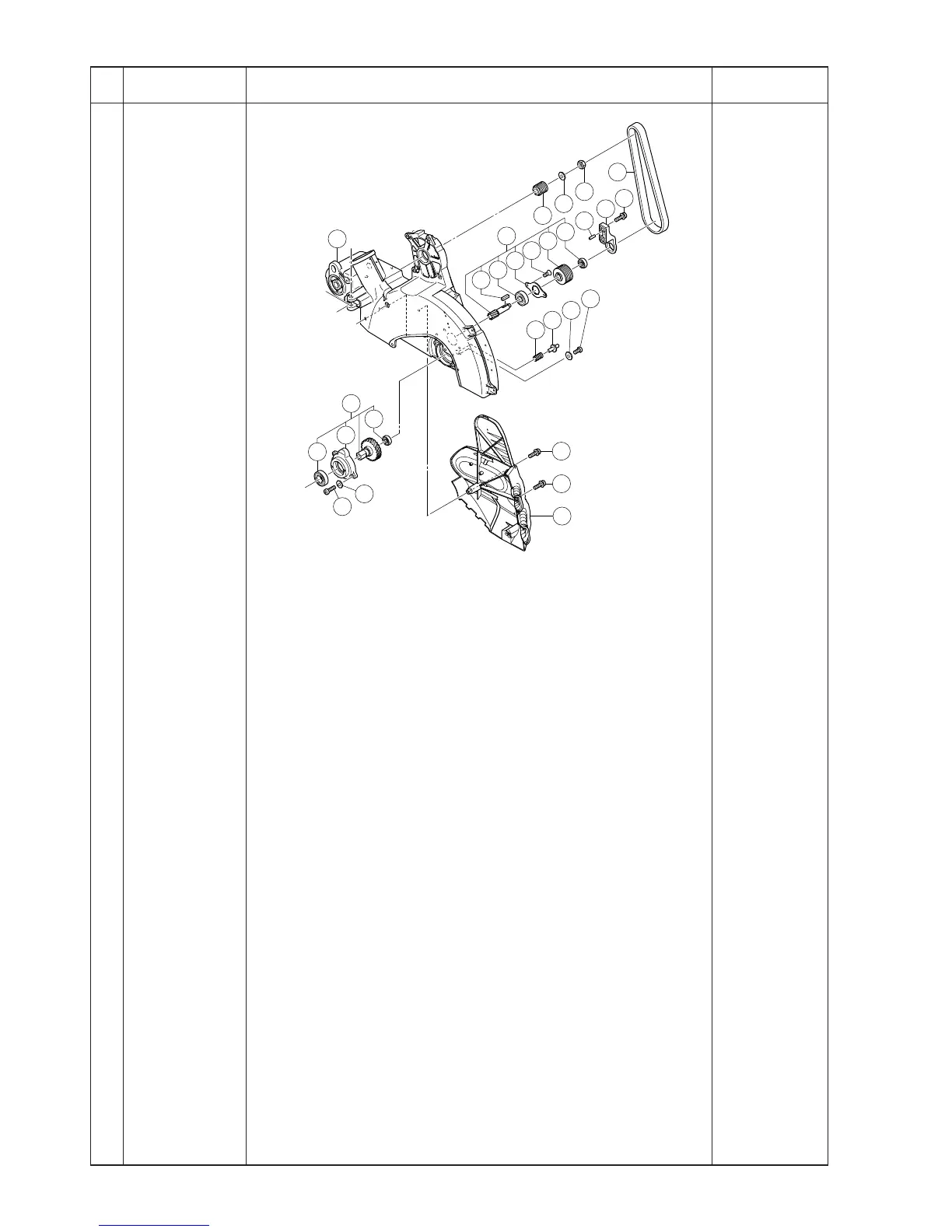

Fig. 61
Phillips
screwdriver
Plastic hammer
275
292
293
294
295
296
297
307
308
309
310
300
301
302
303
304
305
306
311
312A
313
271
314
317
242
242
315
316
