4.3 Segment Indication of the Escalator
The segmented 9 digits in the display of the escalator state of operation indicate the trouble code and
speed command value. This section describes them. Types other than EC4-605 are not applicable to the
escalator.

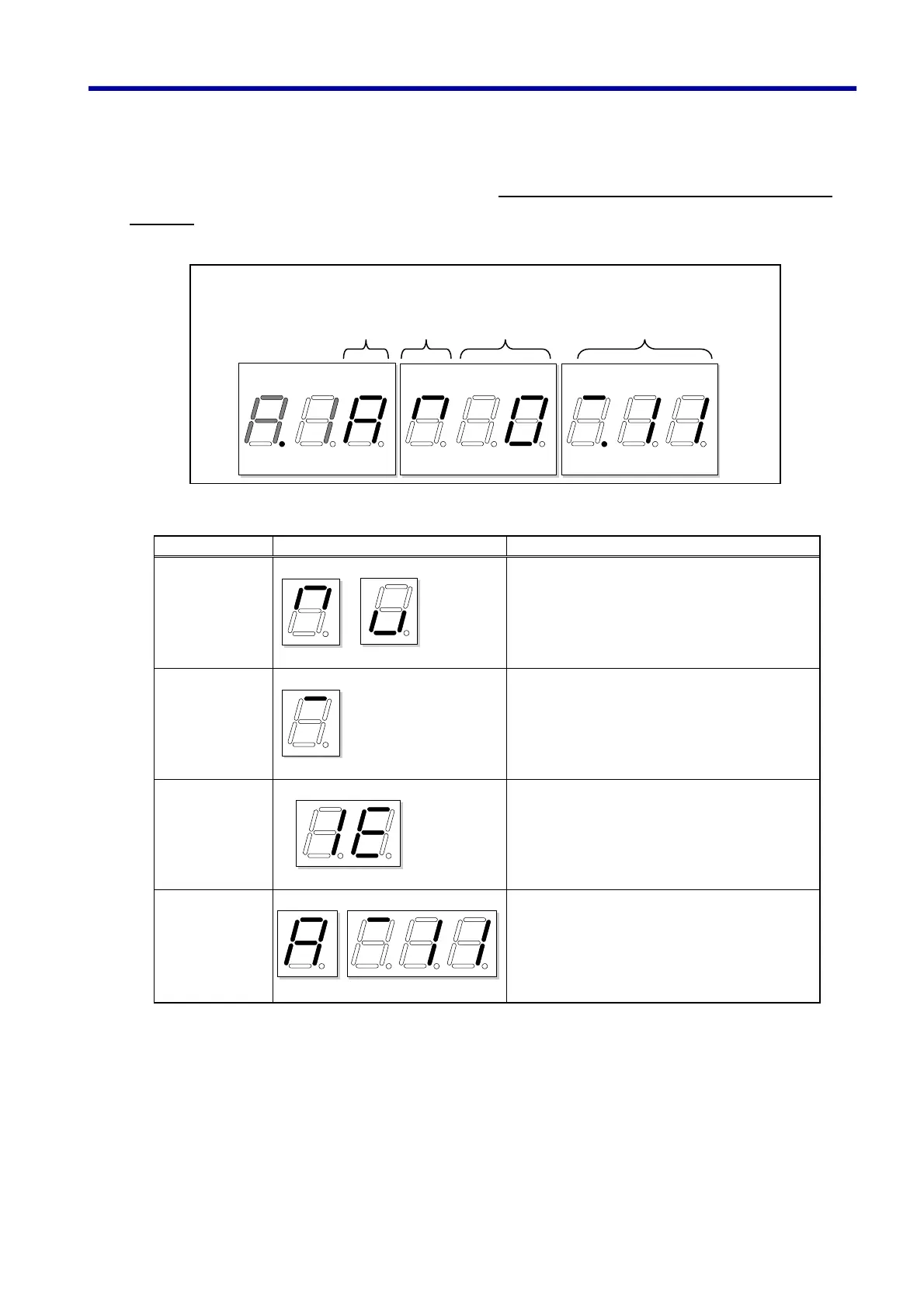

Table of the contents of operating state indicated in the segment sections of the display (Escalator)
Item Segment indication Descriptions
(6th digit):
Direction lamp
Upward Downward
Indicates that the direction of operation is
either upward or downward.
(6th digit): Local
adjustment area
write enabled
Write enabled
Mode 73 indicates that the writing of local
adjustment area is enabled. (Applicable to
the Technical Comment for Installation and
Maintenance ESK2001-06, Sections 13/14
E00 and E03 only)
(4th and 5th
digits): Speed
command
In the case of 30m/min
Indicates speed command hexadicimally.
(7th, 1st, 2nd,
and 3rd digits):
Trouble section
and code
Trouble section Trouble code
Indicates the trouble section and the code.
The 8th and 9th digits are set for the trouble
section of the elevator, hence not concerned
with the escalator.
(Refer to the List of Trouble Codes in the
Attachment)
(7th digit):
Trouble section
(6th digit):
Direction o
operation
(4th and 5th
digits): Speed
command
(1st, 2nd and 3rd
digits): Trouble
code
4. Elevator / Escalator Mode
