Hitachi Advanced Server HA820 G2 User Guide 119
9.

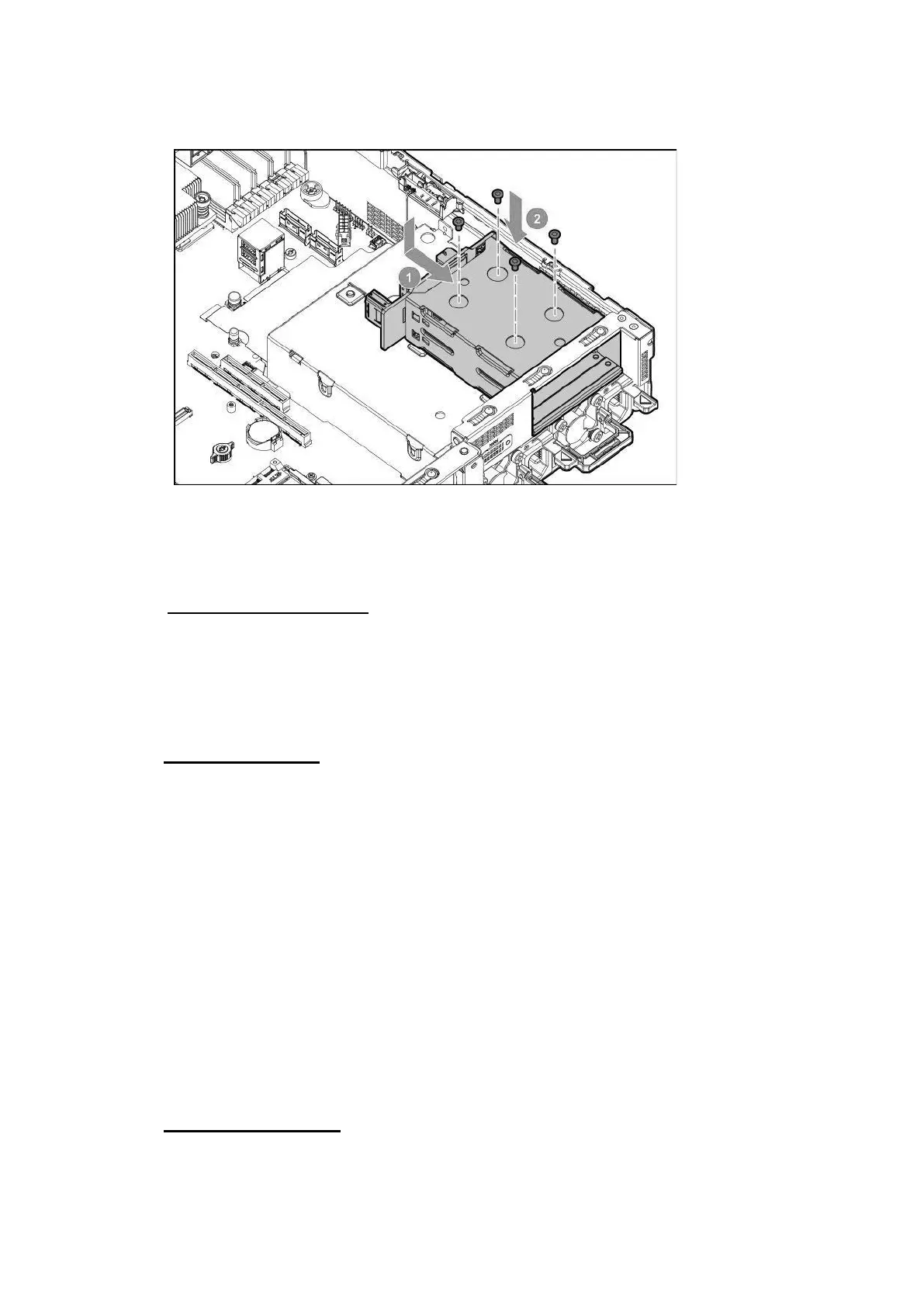

Install the drive cage.
10.
Install drives or drive blanks.
11.
Install the secondary rear wall or a secondary riser cage.
12.
Cable the drive backplane.
13.
Slide the server into rack.
14.
Connect each power cord to the server.
15.
Connect each power cord to the power source.
16.
Power up the server.
Installing a rear 2LFF SAS/SATA drive cage in the primary or secondary riser
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
•
T-10 Torx screwdriver
•
The components included with the hardware option kit
•
The front drive bays are fully populated with 12 LFF or 24 SFF drives.
•
High performance fans are installed in all fan bays.
Procedure
1.
Power down the server.
2.
Remove all power:
