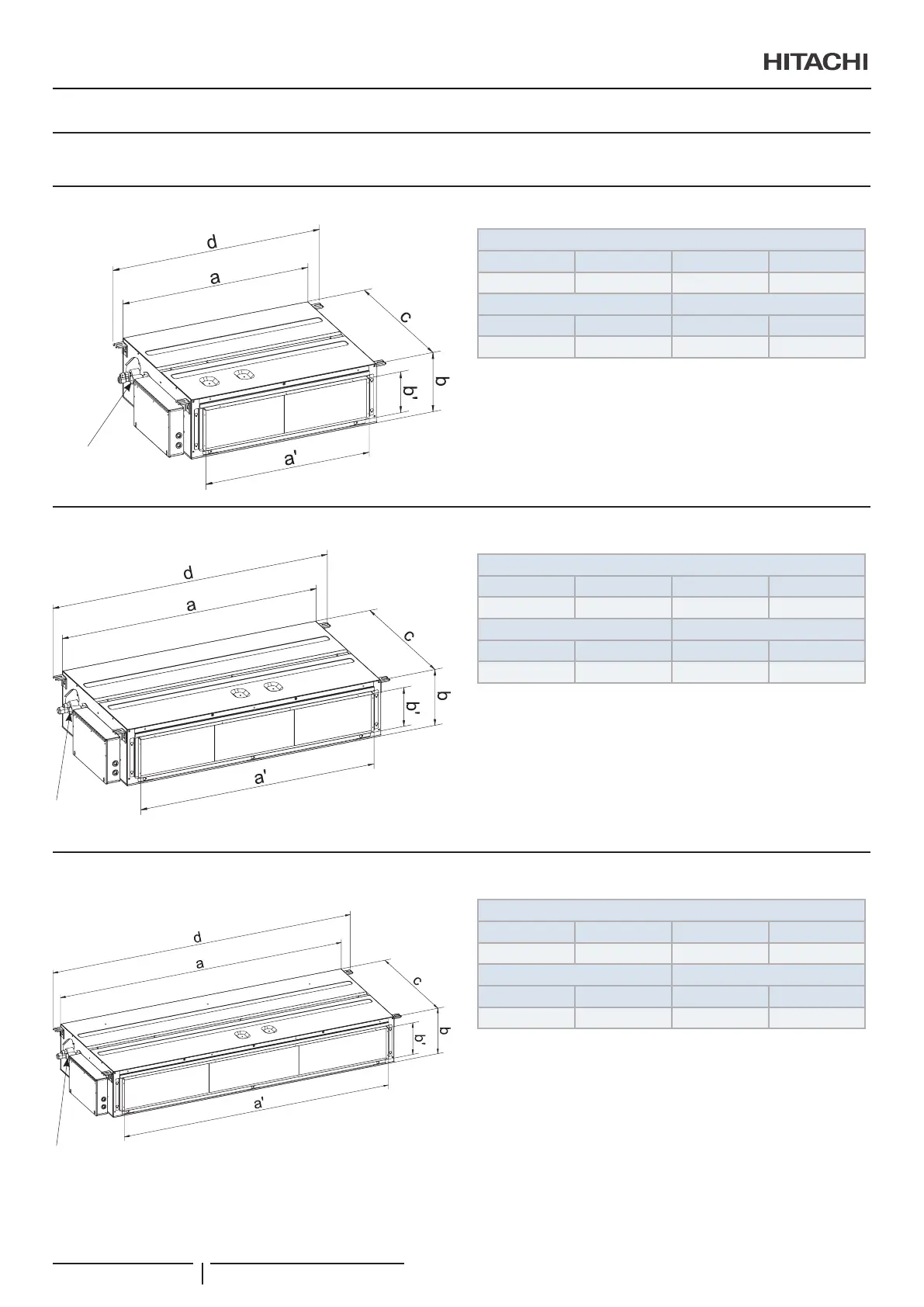

3 DIMENSIONS GÉNÉRALES
3.1 RPI-(1.5-2.0)FSRE
Tuyauterie
d'évacuation
Dimensions (mm)
a b c d
750 240 600 840
Sortie d'air (mm) Prise d'air (mm)
a' b' a' b'
524 162 663 177
3.2 RPI-(2.5-3.0)FSRE
Tuyauterie
d'évacuation
Dimensions (mm)
a b c d
1084 240 600 1174
Sortie d'air (mm) Prise d'air (mm)
a' b' a' b'
858 162 997 177
3.3 RPI-(4.0-6.0)FSRE
Tuyauterie
d'évacuation
Dimensions (mm)
a b c d
1474 240 600 1564
Sortie d'air (mm) Prise d'air (mm)
a' b' a' b'
1248 162 1387 177
DIMENSIONS GÉNÉRALES
PMML0528 rev.1 - 02/2021
70
