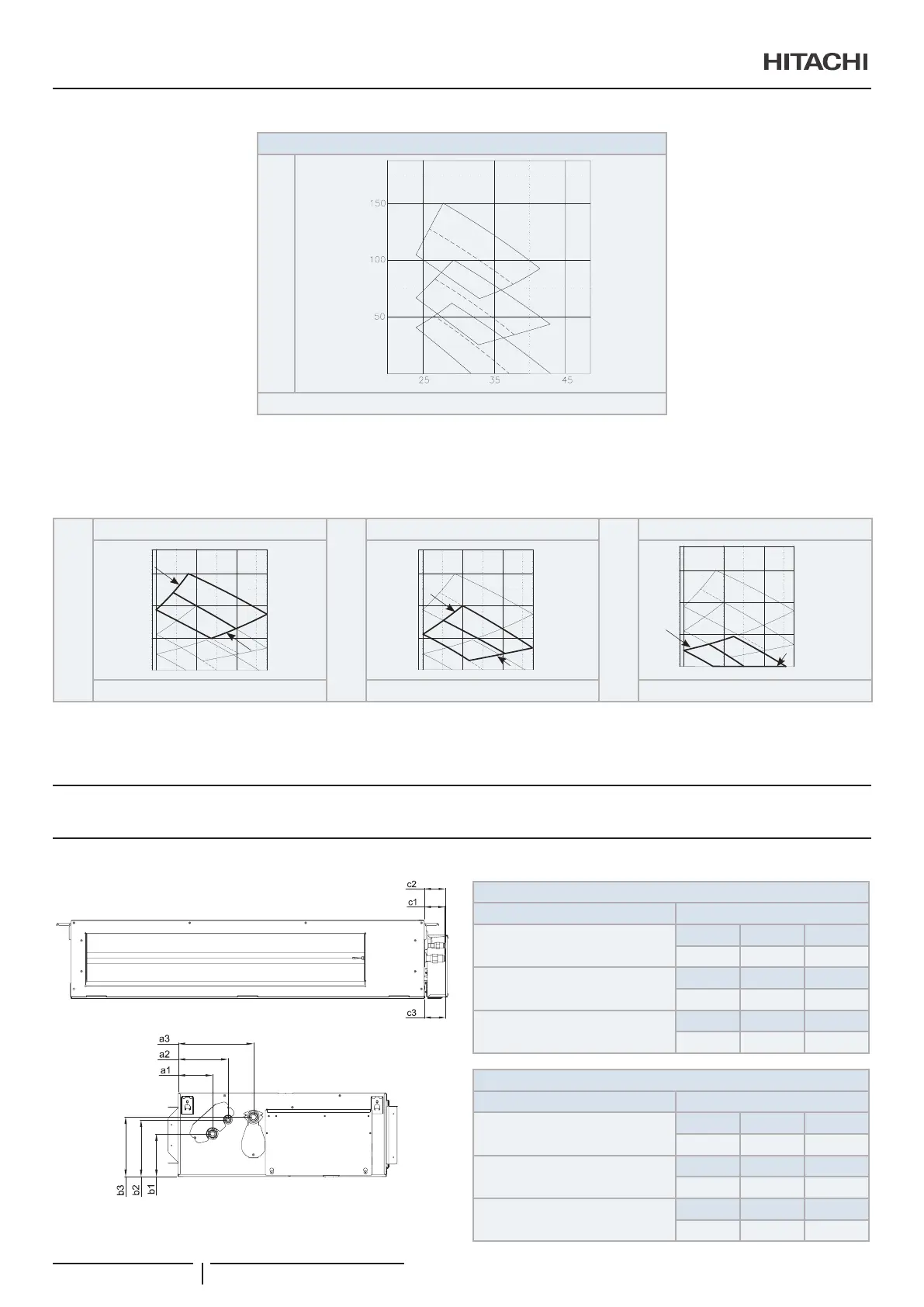

RPI-6.0FSRE
Pressione statica esterna (Pa)
Portata d'aria (m
3
/min)
Velocità della ventola disponibile in base alla pressione statica esterna selezionata
In base alla congurazione selezionata della pressione statica esterna (tramite la funzione opzionale C5), la velocità della ventola
disponibile nell'interruttore di controllo remoto è quella indicata a titolo esemplicativo nelle immagini seguenti.
Pressione statica esterna (Pa)
Pressione statica alta (SP-01)
Pressione statica esterna (Pa)
Pressione statica standard (SP-00)
Pressione statica esterna (Pa)
Pressione statica bassa (SP-02)
High H / High
Med
Low
Upper ESP limit
Lower ESP limit
High H / High
Med
Low
Upper ESP limit
Lower ESP limit
High H
High / Med
Low
Upper ESP limit
Lower ESP limit
Portata d'aria (m³/min) Portata d'aria (m³/min) Portata d'aria (m³/min)
? NOTA
La velocità "High H" è disponibile solo con il controllo remoto PC-ARFP(1)E.
5 LINEA REFRIGERANTE
5.1 COLLEGAMENTO DELLA LINEA
RPI-1.5FSRE
COLLEGAMENTO DELLA LINEA Dimensione (mm)
Tubo del gas
a1 b1 c1
99 122 69
Tubo del liquido
a2 b2 c2
143 162 57
Linea di drenaggio
a3 b3 c3
216 171 66
RPI-2.0FSRE
COLLEGAMENTO DELLA LINEA Dimensione (mm)
Tubo del gas
a1 b1 c1
99 122 69
Tubo del liquido
a2 b2 c2
143 162 64
Linea di drenaggio
a3 b3 c3
216 171 66
LINEA REFRIGERANTE
PMML0528 rev.1 - 02/2021
104
