Hitachi RPI-5.0FSN4E Service Manual

2 Unit installation
SMGB0077 rev.0 - 01/2013
87
2
S

Deodorising lter
For RCI-FSN3 indoor units: F-71L-D1 and F-160L-D1

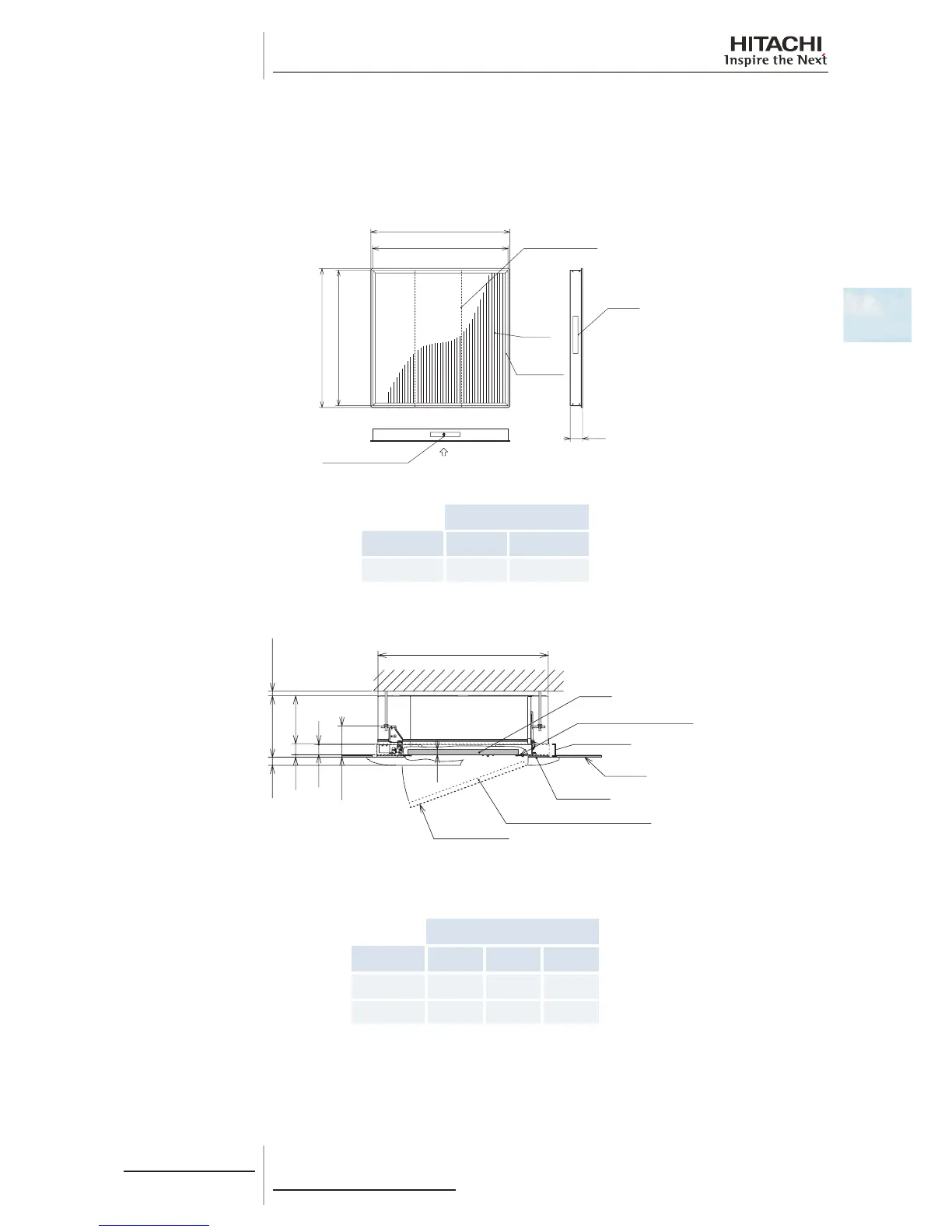

The dimensions of the deodorising lter are indicated in the following gure.
Remember that the lter thickness depends on the model.
588
544
Aluminum
Frame
Air Flow Direction
Model
2 Pieces
(Reinforcement)
Air
Filter
588
544
AIR FLOW
F-160L-D1
a
Model
Dimension F-71L-D1 F-160L-D1
a 25 45
The position of the deodorising lter is shown below:
40
c
Min.10
12 55 d
50 5
155
840
Indoor Unit
Air Inlet Grille
Long Life Filter (F-160L-K)
Air Panel
Filter Box
b
*Insert the air filter into the filter box
and fix the air filter by filter holder.
Filter Holder (Resin)*
Ceiling
Filter
Dimension
Model b c d
1.0 - 2.5 25 303 236
3.0 - 6.0 45 353 286
