3.5 Refrigerant and drain hose installation
3.5.1 RCI - 4-way cassette (1.0-6.0)FSN2E
¿ Gas refrigerant pipe installation

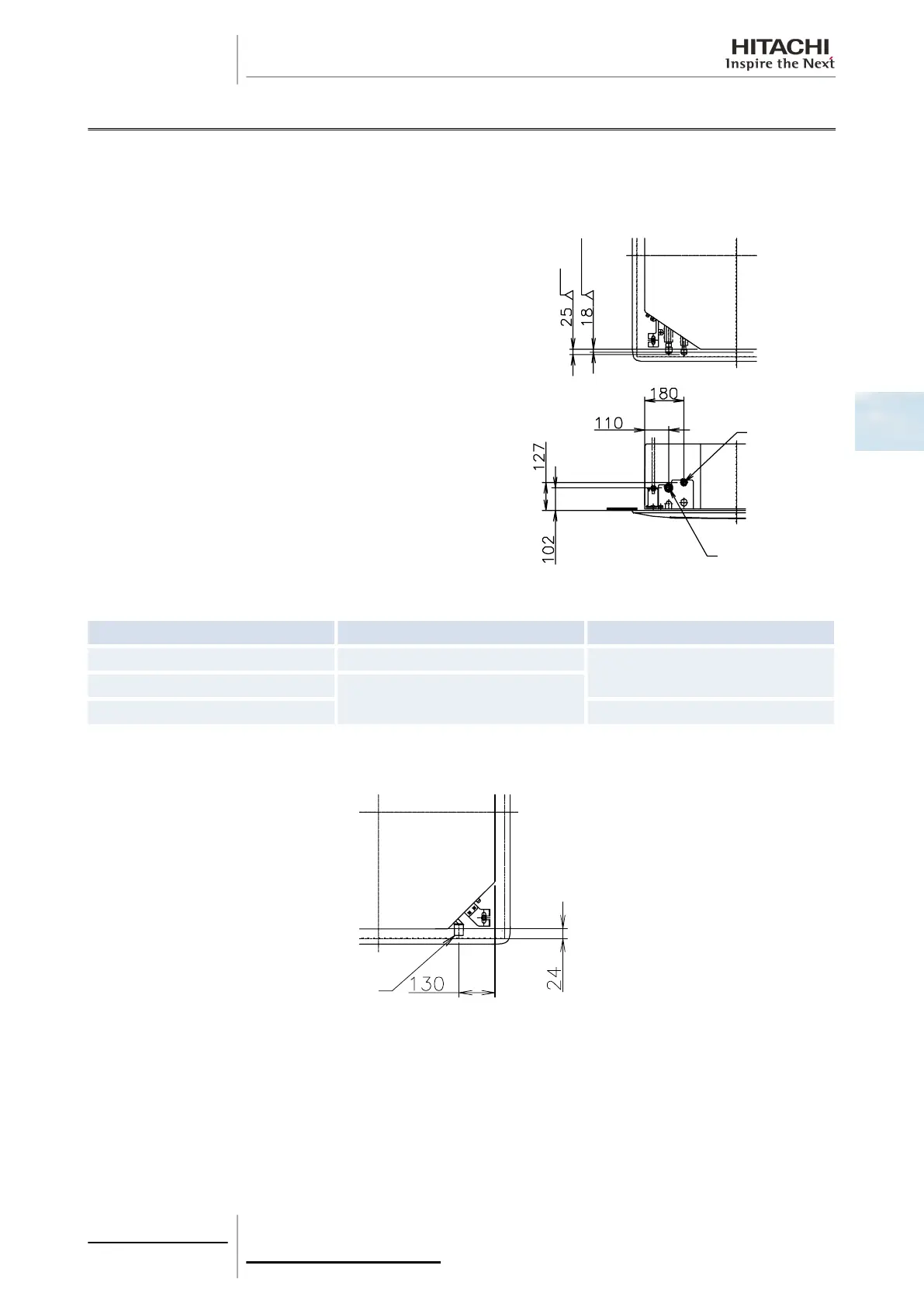

The correct position for the gas refrigerant pipe connection is
shown below. The pipe connection must be accessible from all
directions (above, left or right).
Models (1) Gas pipe mm (inches) (2) Liquid pipe mm (inches)
RCI-(1.0/1.5)FSN2E Ø12.70 (1/2)
Ø6.35 (1/4)
RCI-2.0FSN2E
Ø15.88 (5/8)
RCI-(2.5–6.0)FSN2E Ø9.53 (3/8)
¿ Drain pipe installation
The correct position for the drain hose connection -A- is shown below.
Prepare a polyvinyl chloride (PVC) pipe with an outer diameter of 32 mm.
3 Piping work and
refrigerant charge
89
SMGB0063 rev. 1 - 10/2010
3
