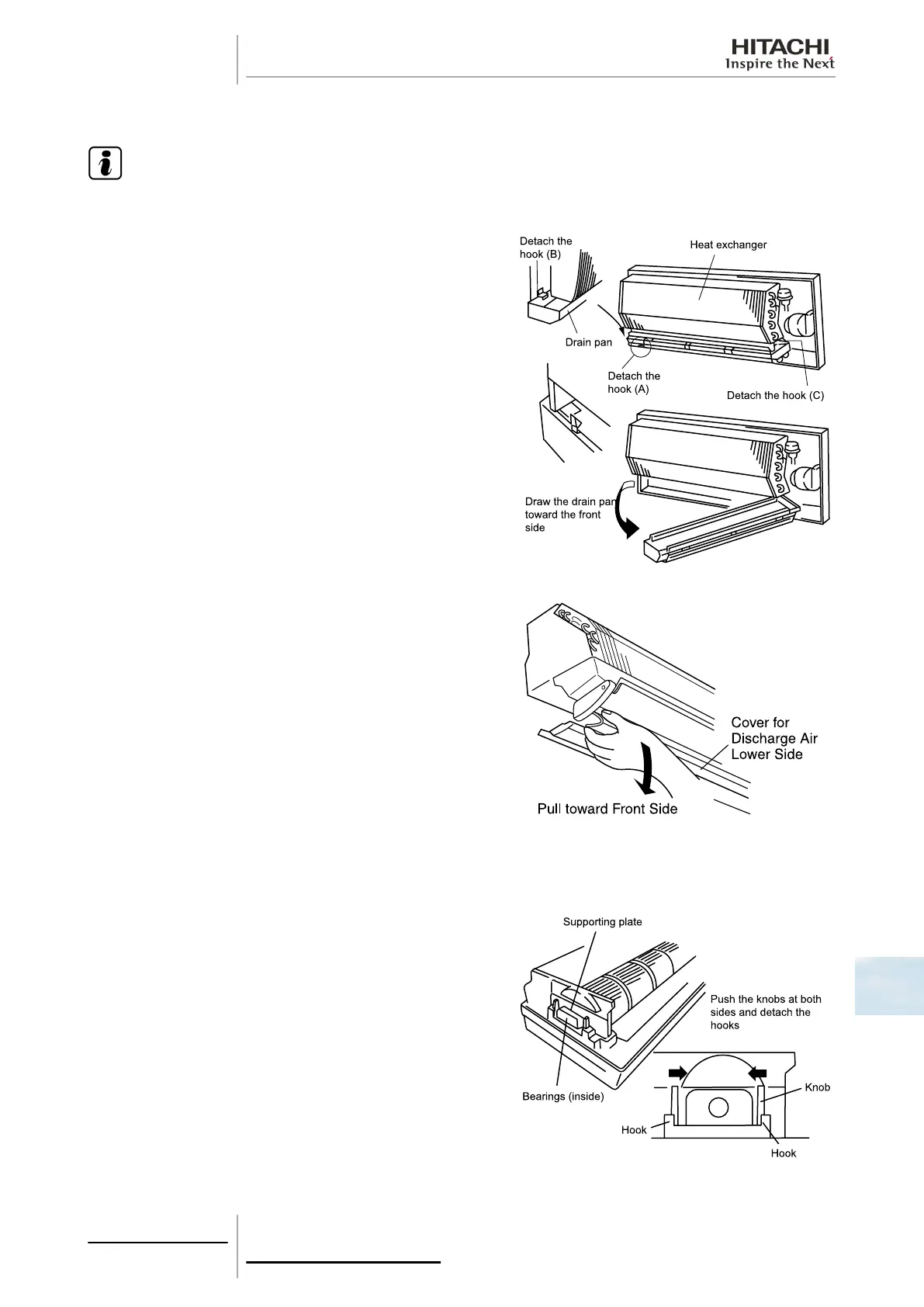

To fit the drain pan, carry out the removal procedure in reverse order.
N O T E
Make sure the hooks are correctly positioned.
RPK-(1.0-2.5)FSN(H)2M
RPK-(2.5-4.0)FSN2M
10.8.12 Removal of the fan motor
Removal of the fan motor (only RPK-(1.0-2.0)FSN(H)2M)
Remove the heat exchanger as indicated in section Removal of the
heat exchanger, see on page 337.
Remove the support securing plate by pushing the button on both
sides of the plate towards the inside and releasing the hooks.
Remove the supports securing the fan motor. To remove the motor
support, loosen the screw securing the motor shaft and the fan.
10 Servicing
341
SMGB0063 rev. 1 - 10/2010
10
