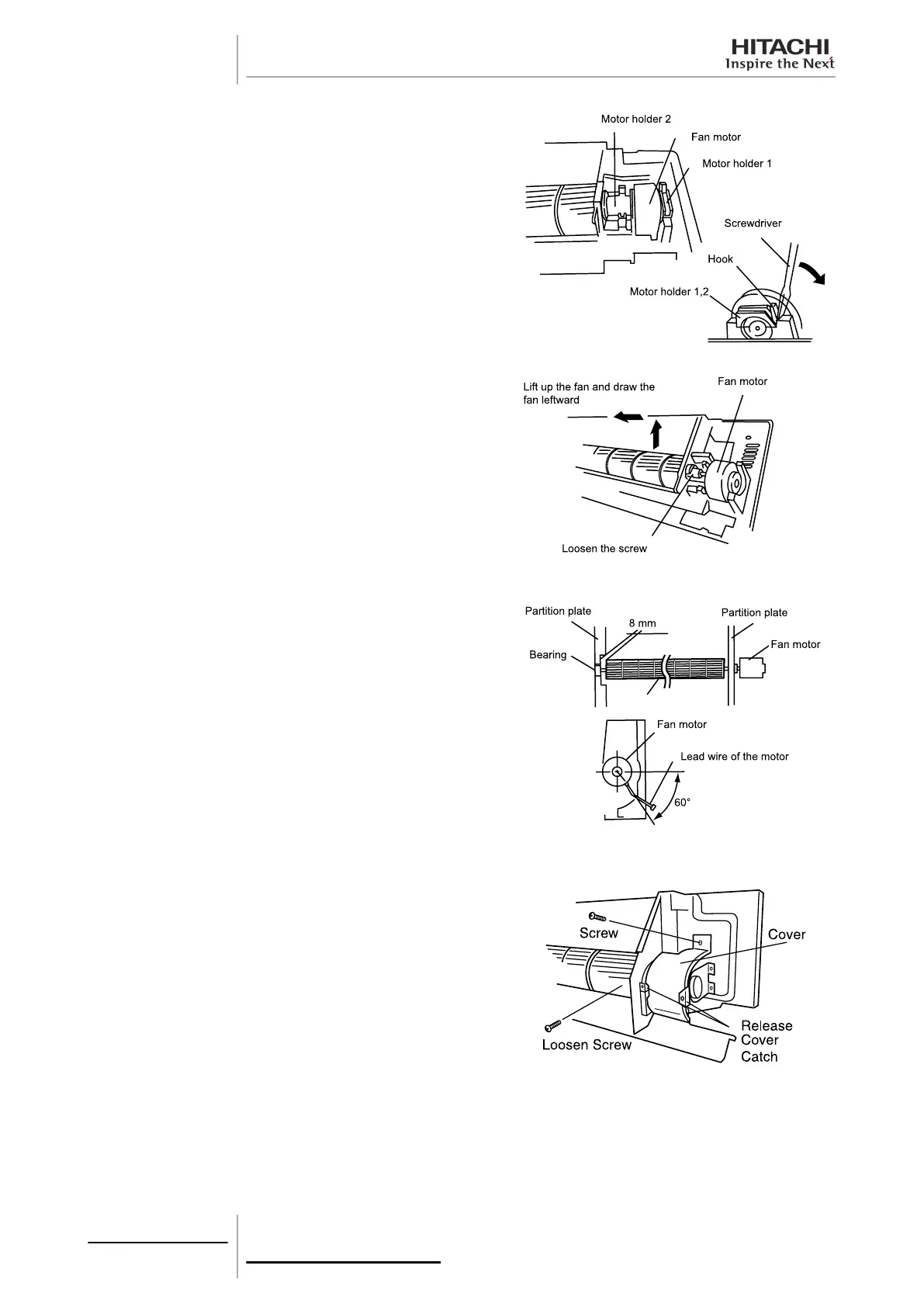

Pull the fan to the left while lifting the fan support slightly. Then
remove the fan and the fan motor.
To fit the fan and the fan motor, carry out the removal procedure
for both components in reverse order.
Secure the fan in position with a gap of 8 mm between the left end
(support side) and the partition plate.
Secure the fan motor with the conductor wire outlet in the position
shown in the figure.
Removal of the fan motor (only RPK-(2.5-4.0)FSN2M)
Remove the right-hand cover.
Remove the screw from the left cover.
10 Servicing
342
SMGB0063 rev. 1 - 10/2010
