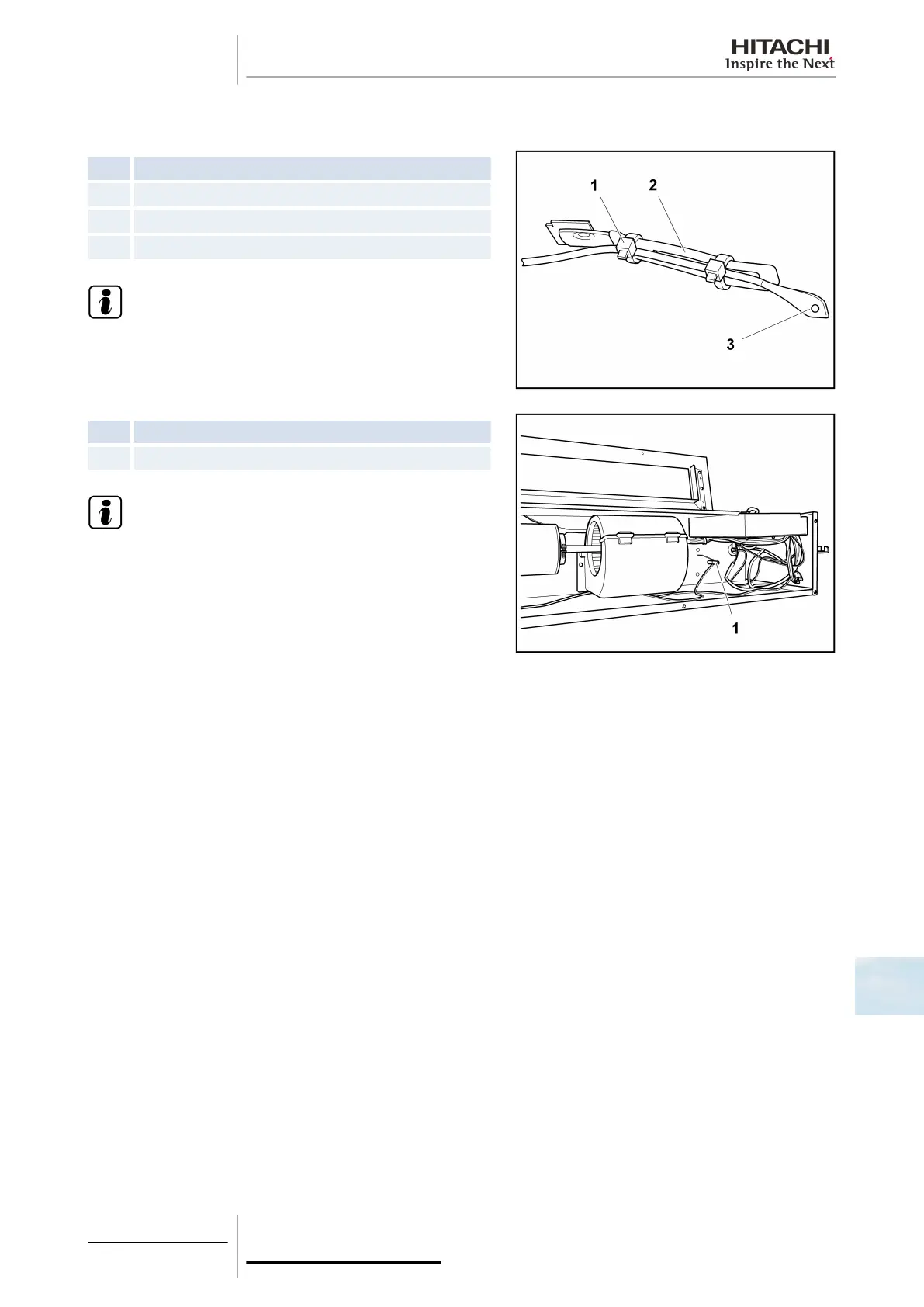

10.4.2 Removal of the inlet and outlet air thermistors
Inlet air thermistor
Nº Part
1 Tie
2 Cable clamp
3 Thermistor
N O T E
Disconnect and remove the thermistor.
The thermistor is located on the outlet side of the unit.
Nº
Part
1 Location of the air inlet thermistor
N O T E
To disconnect and remove the appropriate thermistor,
previously see the chapter corresponding to the wiring
diagrams in this Manual.
Remove the screws securing the rear cover of the unit.
Disconnect and remove the thermistor.
