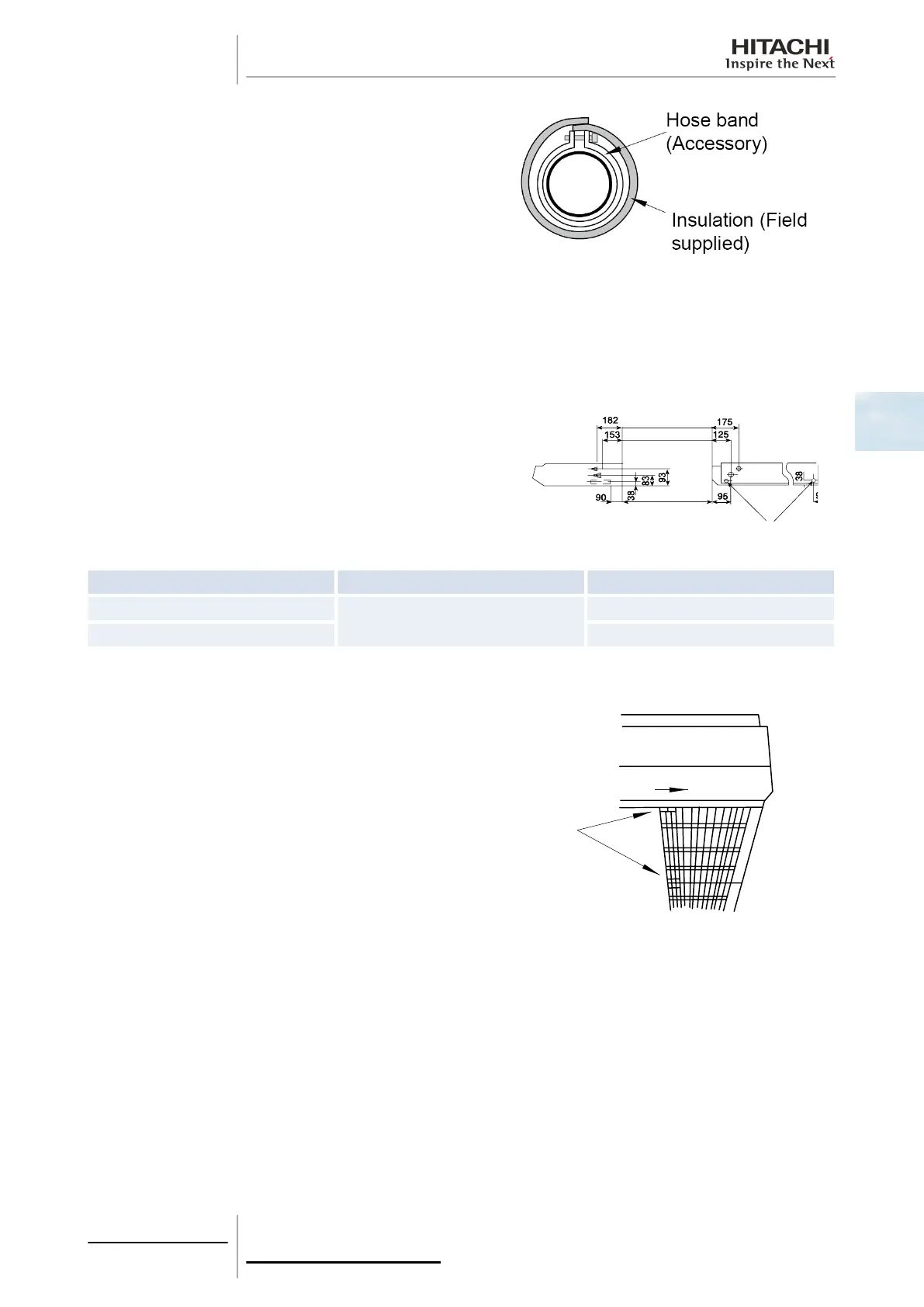

Then insulate the drain hose appropriately.
3.5.4 RPC - Ceiling type (2.0-6.0)FSN2E
¿ Gas refrigerant pipe installation
The correct position for the gas refrigerant pipe connection is
shown below. The refrigerant piping can be connected to the top
or rear of the unit.
Each part has a die-cut hole: Unit installation, see on page 30.
Models
(1) Gas pipe mm (inches) (2) Liquid pipe mm (inches)
RPC-2.0FSN2E
Ø15.88 (5/8)
Ø6.35 (1/4)
RPC-(2.5–6.0)FSN2E Ø9.53 (3/8)
The piping must be installed from the bottom of the unit.
1 Remove the air inlet grille and slide the buttons on the grille backwards.
2 Push and slide the air inlet grille backwards and open it.
Gas pipe
Liquid pipe
Drainage pipe
Gas pipe
Liquid pipe
Drainage pipe
3 Piping work and
refrigerant charge
93
SMGB0063 rev. 1 - 10/2010
