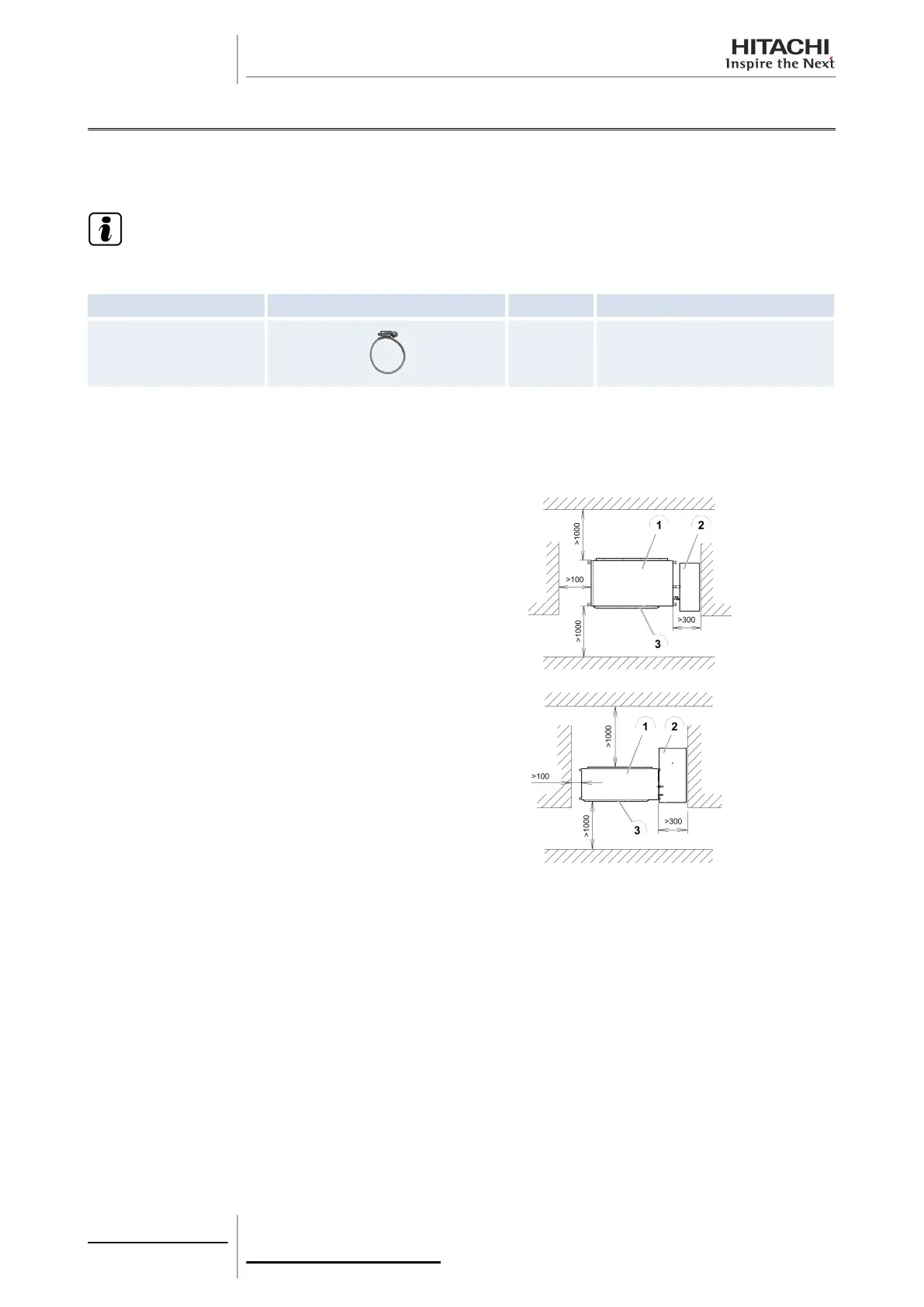

2.5 RPI(M) - Ducted indoor unit (0.8-6.0)FSN2E(-DU)
2.5.1 Accessories supplied with the unit
Check that the following accessories are supplied with the unit.
N O T E
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory Appearance Quantity Purpose
Wire clamp 1 For the drain hose connection.
2.5.2 Unit installation
Initial checks
Check that there is enough space around the unit. Consult the corresponding chapter of the Technical Manual for information
on the unit measurements.
RPI - Ducted indoor unit (0.8-1.5)FSN2E
1. Rear.
2. Unit inspection and maintenance access.
3. Front side.
RPI - Ducted indoor unit (2.0-6.0)FSN2E
1. Rear.
2. Unit inspection and maintenance access.
3. Front side.
2 Unit installation
42
SMGB0063 rev. 1 - 10/2010
