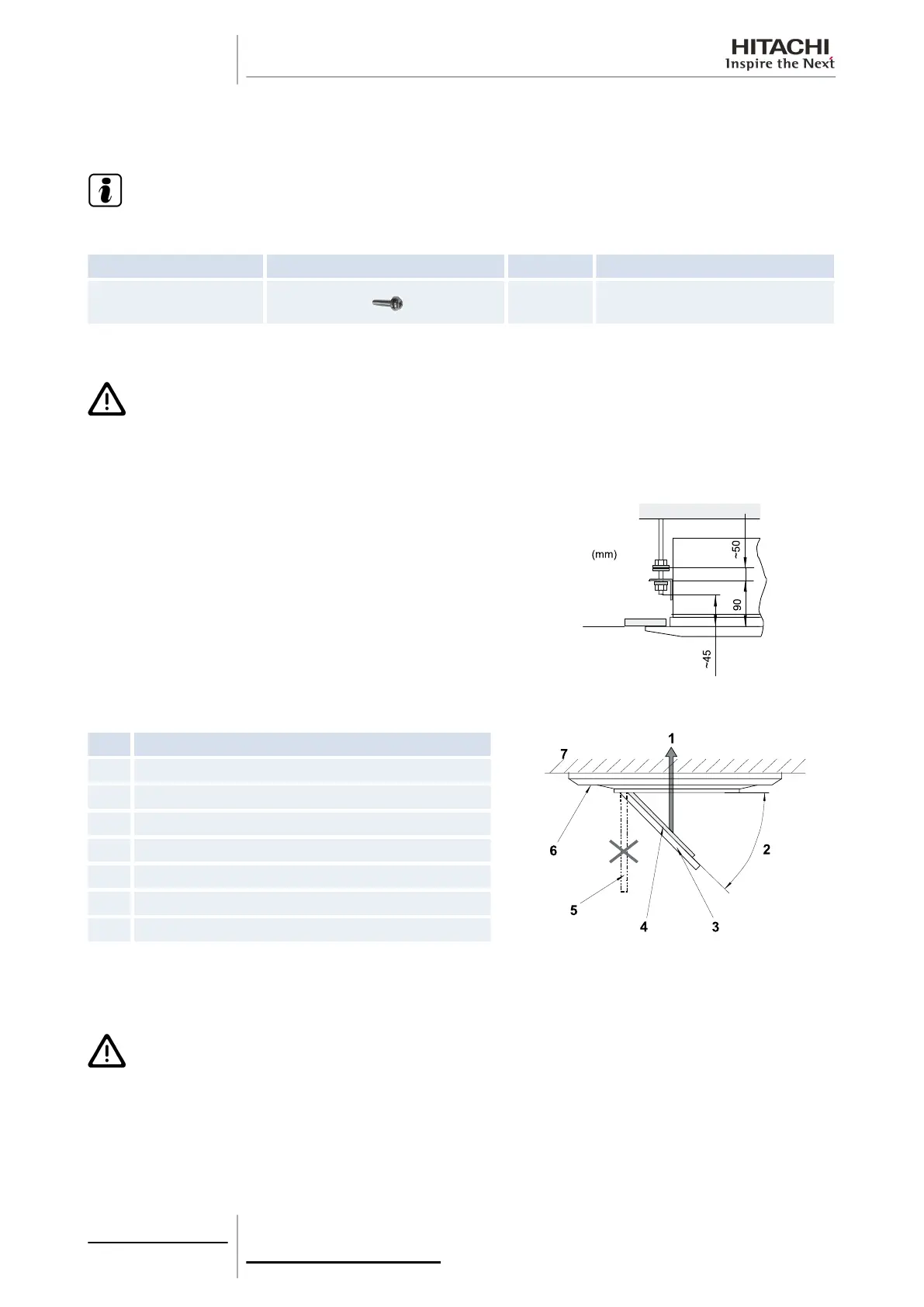

2.2.3 Accessories supplied with the air panel
Check that the following accessories are supplied with the unit.
N O T E
Please contact your HITACHI distributor if any of the accessories has not been supplied with the unit.
Accessory Appearance Quantity Purpose
Long bolt (M6 x 50) 4 For panel fixing.
2.2.4 Air panel installation
C A U T I O N
Take care while the air panel is unpacked and protect it by placing it on insulating or soft material so as not to
scratch the sealant insulation.
Location of the suspension brackets
Make sure the suspension brackets on the indoor unit are
approximately 90 mm in height above the false ceiling.
Remove the air inlet grille from the air panel
Nº
Part
1 Take up the grille keeping it inclined
2 45° (correct)
3 Air inlet grille
4 Air filter
5 Wrong
6 Air panel
7 Ceiling
Open the air inlet grille until it is at an angle of approximately 45° in relation to the air panel surface.
Lift the grille while keeping it tilted.
C A U T I O N
Do not allow the grille to swing freely or the securing mechanism will break.
2 Unit installation
28
SMGB0063 rev. 1 - 10/2010
