2.11.2 Filters
¿ Filter box (B-23H4)

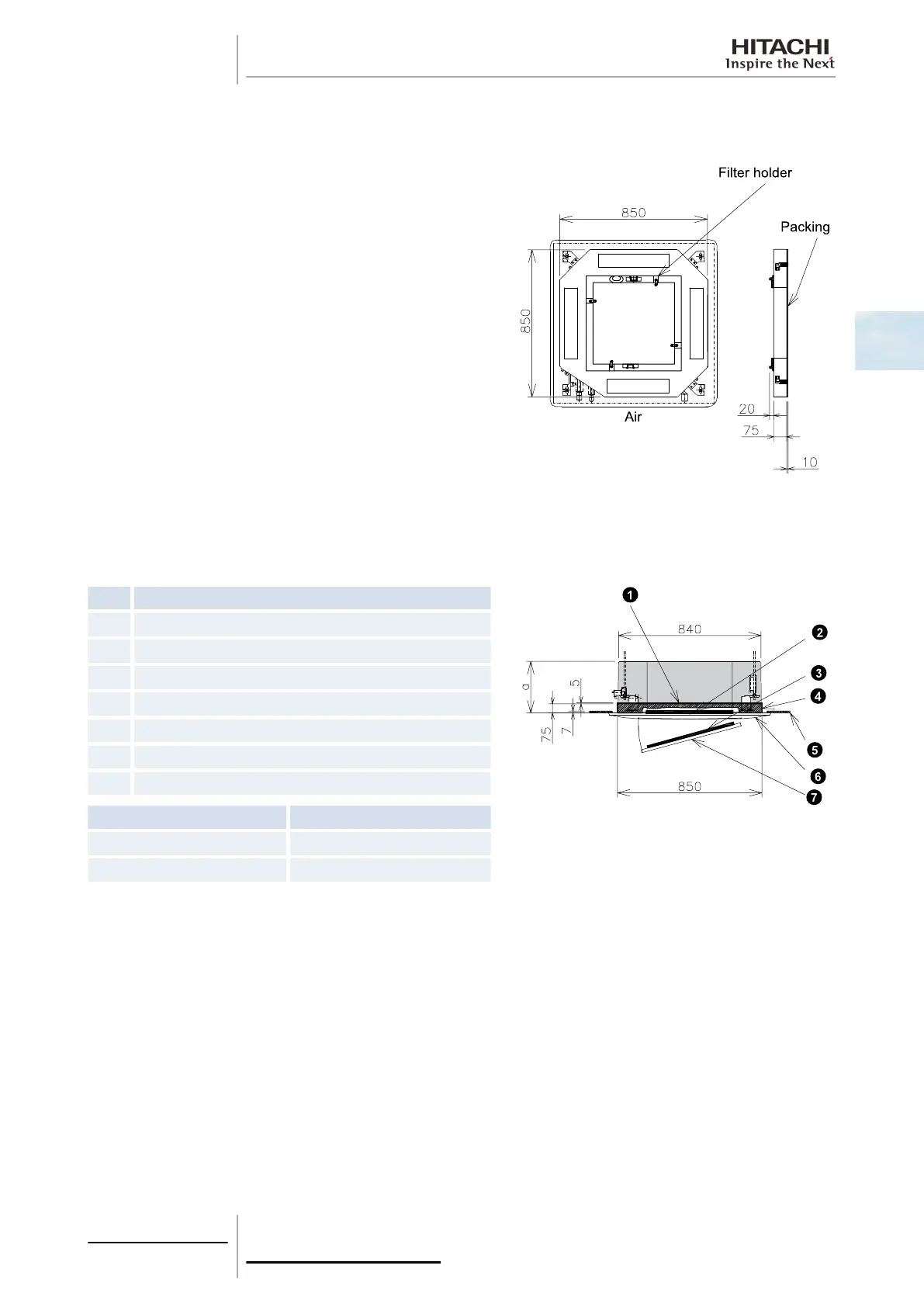

The dimensions of the filter box are shown in the following figure.
When the filter box is installed, the total height of the unit increases by approximately 85 mm. Therefore, pay attention to
the installation space.
Bear in mind that the size before compression is 10 mm, but the size is reduced after compression to 5mm.
Nº
Part
1 Suction grille
2 Air filter
3 Long-lasting air filter
4 Filter box
5 Ceiling
6 Air panel (optional)
7 Suction grille
Model a (mm)
RCI-(1.0-2.5)FSN2E 248
RCI-(3.0-6.0)FSN2E 298
2 Unit installation
73
SMGB0063 rev. 1 - 10/2010
