¿ Drain pipe installation

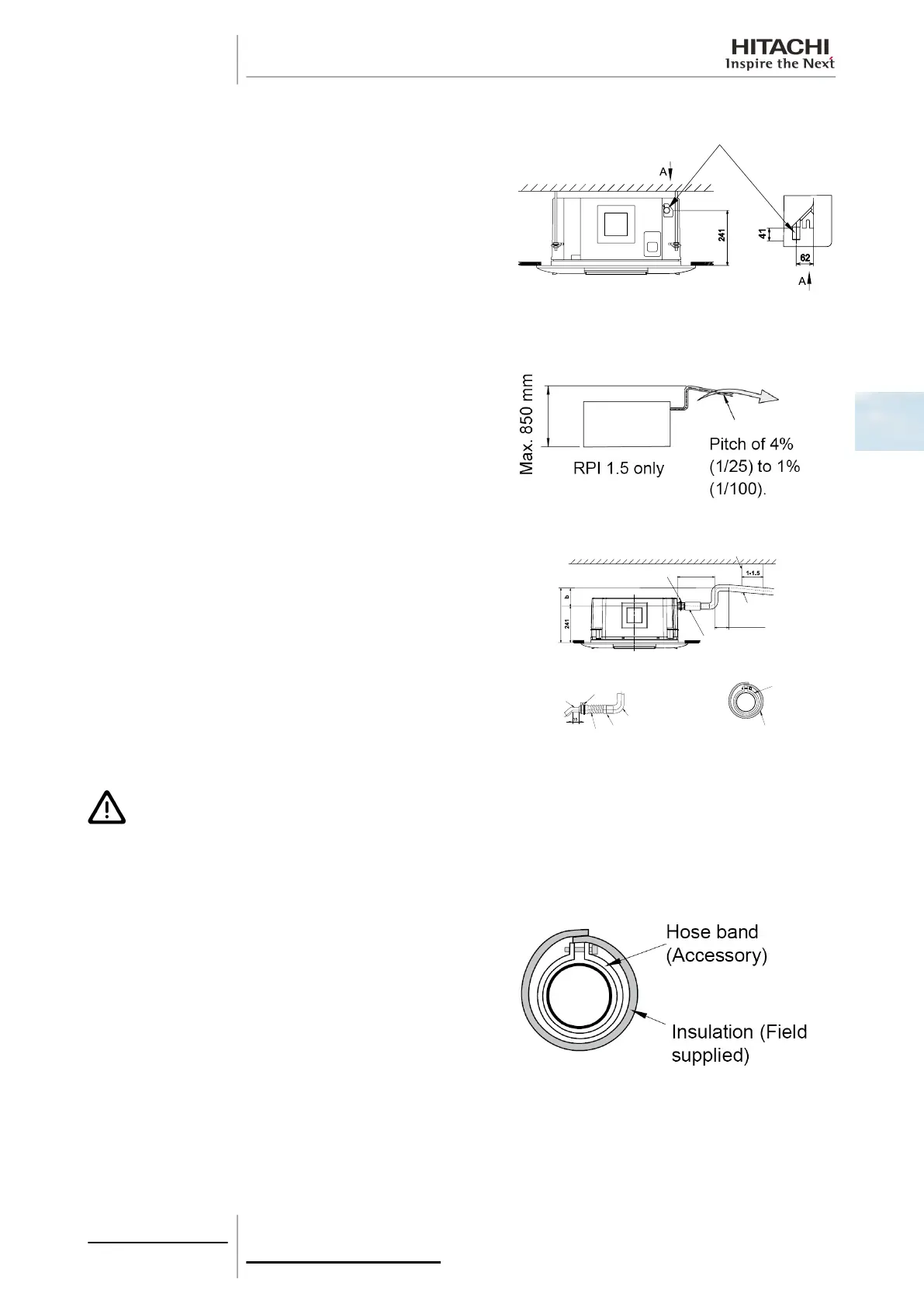

The correct position for the drain hose connection is shown below.
Prepare a polyvinyl chloride (PVC) pipe with an outer diameter of
32 mm.
Secure the pipe with the clamp and adhesive supplied.
The drain hose must have a gradient of 1% (1/100) to 4% (1/25).
Consider the following sizes: a + b + c ≤ 780 mm.
C A U T I O N
• Do not apply adhesive between the drain hose connection and the drain hose.
• Do not apply too much force when making the drain hose connection as this could damage it.
• Do not use bent or twisted drain pipes as these will cause water leaks.
Then insulate the drain hose appropriately.
Drain pipe connection
a (≤ 650)
Clamp (accessory)
Do not use adhesive
a (≤ 325)
Bracket
4% (1/25) - 1% (1/100)
c (< 50)
Drain pipe (accessory)
Drainage pipe
connection
Drainage pipe
(accessory)
Use PVC adhesive
PVC pipe Ø 32
(field-supplied)
Clamp (accessory)
Do not use adhesive
Clamp (accessory)
Insulation
(field-supplied)
