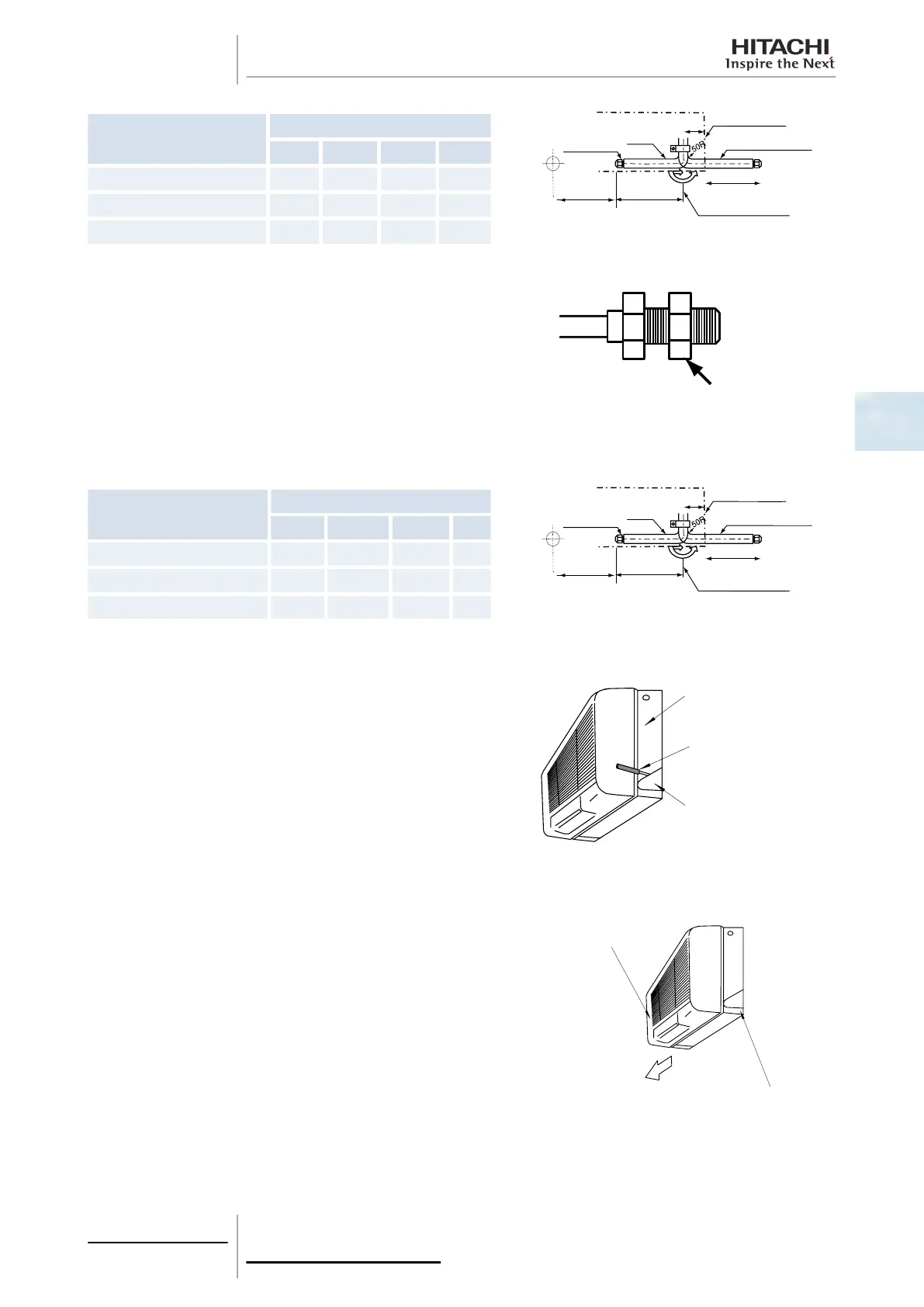

Hitachi RPIM User Manual

Model
Measurements (mm)
a b c b
RPK-(1.0/1.5)FSN(H)2M 410 108 302 195
RPK–2.0FSN(H)2M 440 150 290 240
RPK-(2.5-4.0)FSN(H)2M 654 141 513 297
For RPK-2.0 only: if the gas pipe diameter is 12.7 mm, remove the
gasket fitted at the connection.
Liquid pipe connection
Model
Measurements (mm)
e f g h
RPK-(1.0/1.5)FSN(H)2M 480 108 372 125
RPK–2.0FSN(H)2M 470 150 320 210
RPK-(2.5-4.0)FSN(H)2M 572 141 431 379
Pipes on the right, left and rear side
Right side
Cut the corner using a plastic knife and completely remove any
sharp edges, as indicated in the figure.
Left side
Cut the corner using a plastic knife and completely remove any
sharp edges, as indicated in the figure.
d
Unit contour
Pipes for rear section
Gas pipe
Insulation
Connection of pipes on left side
Pipes on right side
a
c
b
Remove flare fitting
h
Unit contour
Pipes for rear section
Liquid pipe
Insulation
Connection of pipes on left side
Pipes on right side
e
g
b
Right cover
Blade
Cut this corner
Right cover
Left cover
3 Piping work and
refrigerant charge
105
SMGB0063 rev. 1 - 10/2010
3
