Installation
C A U T I O N
• Where the mounting bracket must be installed on a wooden or concrete wall, make sure it is resistant enough
to withstand a weight of 200 kg.
• Do not fit the mounting bracket to a pillar.
• The place where the indoor unit is to be installed must be a flat surface with enough space to fully house the
unit. The weight of the unit must be evenly distributed over the surface.
RPK-(1.0/1.5)FSN(H)2M
RPK-2.0FSN2M
RPK-(2.5-4.0)FSN2E

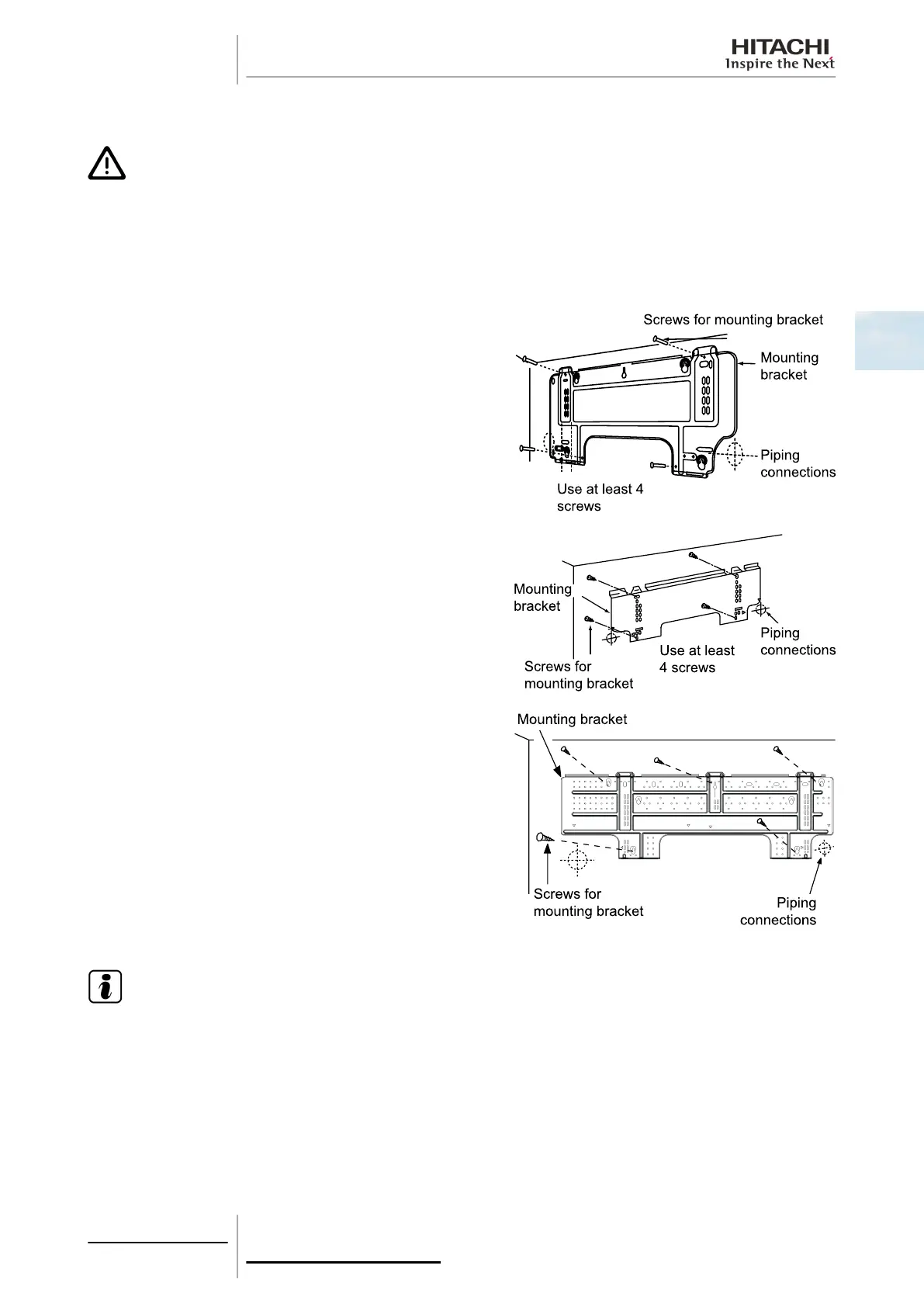

Check that the mounting bracket is installed so that the drain pipe
side is slightly lower (around 3 mm) than the other side for easier
condensate discharge.
N O T E
The drain hose connection can be made on the right or the left of the unit.
2 Unit installation
51
SMGB0063 rev. 1 - 10/2010
