Hitachi SJ300 Series

41
Analog Operator Panel
OPE-4MJ2, OPE-8MJ2

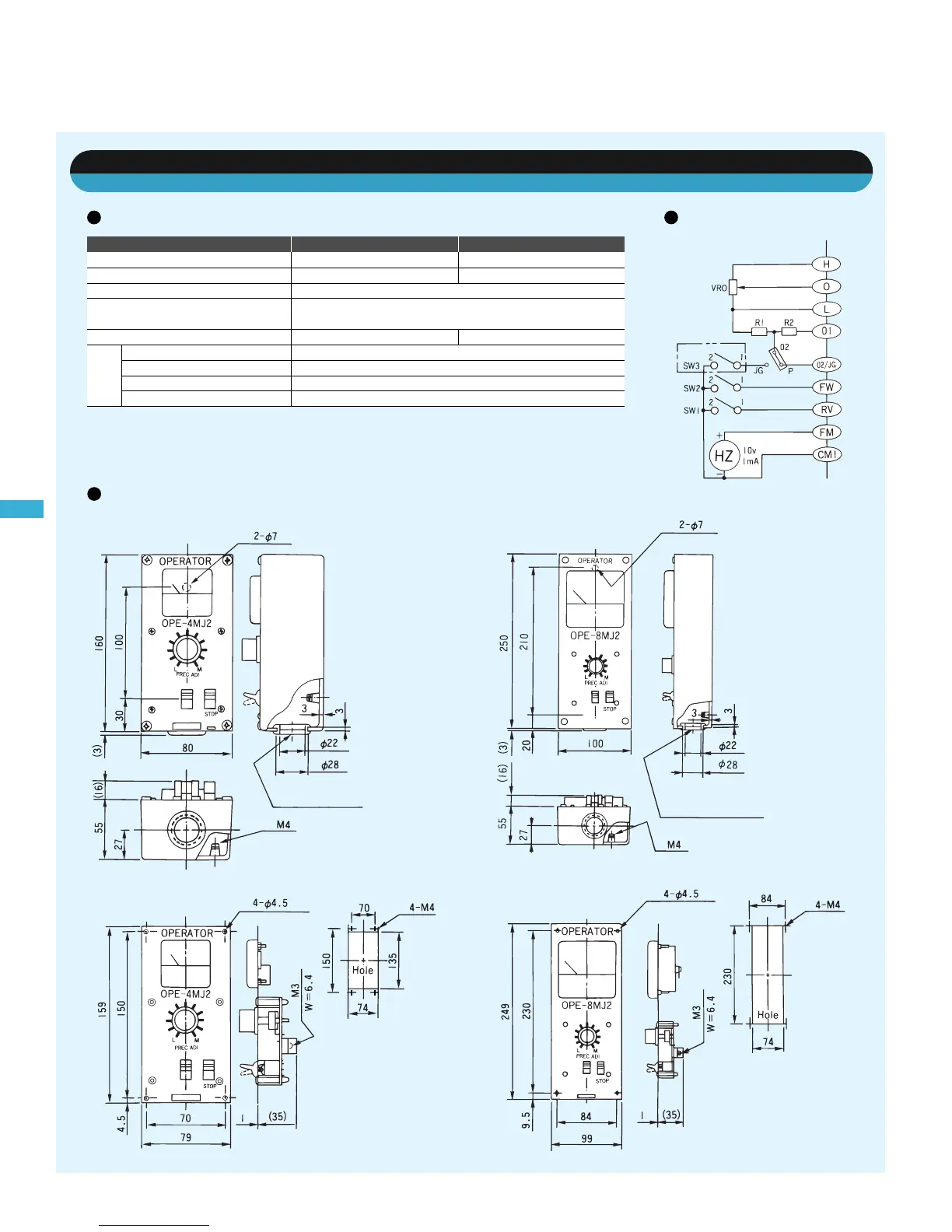

Dimensional Drawings
[Unit: mm]
Internal Circuit Diagram Standard Specifications
Wiring hole
(Rubber bushing)
Wiring hole
(
Rubber bushing
)
SW3 is not
equipped
For flush-mounting
(Remove wall-mounting case)
For flush-mounting
(Remove wall-mounting case)
[OPE-8MJ2]
[
OPE-4MJ2
]
Model OPE-4MJ2 OPE-8MJ2
Meter size
Meter indication
Frequency setting device
Ambient temperature and humidity
Vibration
Location
Enclosure
- 10 - 50℃/ 20 - 90%
(
RH
)
(no condensation)
4.9m/s
2
(0.5G) 10-55Hz, conforming to JISC0911
Altitude 1,000m or less, indoors (no corrosive gases or dust)
IP20
0.2W, 2kΩ
DC20mV
- 28V, 0.1mA - 0.1A
Switch
Weight (kg)
43mm square
0
- 50/60/100/120Hz
0.43
80mm square
0 - 50/60/100/120/200/240Hz
0.8
FWD/STOP
REV/STOP
( )
General
specifications
